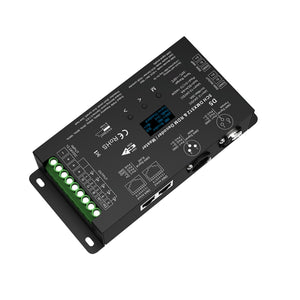

DMX512 Decoder 12-24V DC - 6A/channel - 5 Channels - OLED Display
The DMX512 Decoder is a LED lighting control device with 5 output channels, each with a maximum intensity of 6A. It's compatible with input voltages of 12-24V.
It incorporates an OLED display and keys to select the initial DMX address.
It uses DMX512 input signal and provides PWM output signal for smooth lighting control.
Detailed Description
The DMX512D Decoder is an advanced and complete solution for controlling LED lighting. It offers 5 channels of constant voltage output with 6A per channel and up to 720W of power.
It can operate as master or decoder. Its OLED display and intuitive buttons make operation easy.

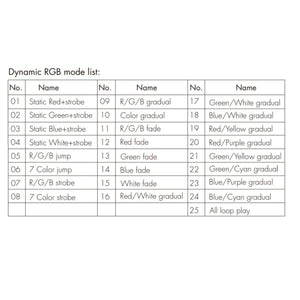

It offers decoding modes from 1 to 5 channels and various PWM frequencies. It allows selecting between 8 or 16-bit gray levels and adjusting the dimming curve. It includes stand-alone RGB and 5-channel dimming modes, as well as 25 built-in RGB programs.
Compatible with three types of DMX ports (green terminal, XLR3, and RJ45), this device adheres to the DMX512 standard.
It features protection against overheating, overload, and short circuit, and performs a quick self-assessment for enhanced reliability.
| Product features:
|
