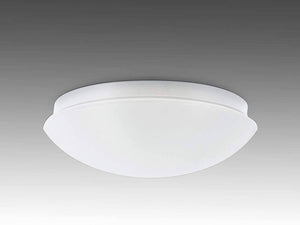

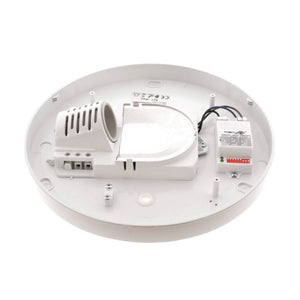

Surface mounted LED ceiling light with sensor for E27 bulb

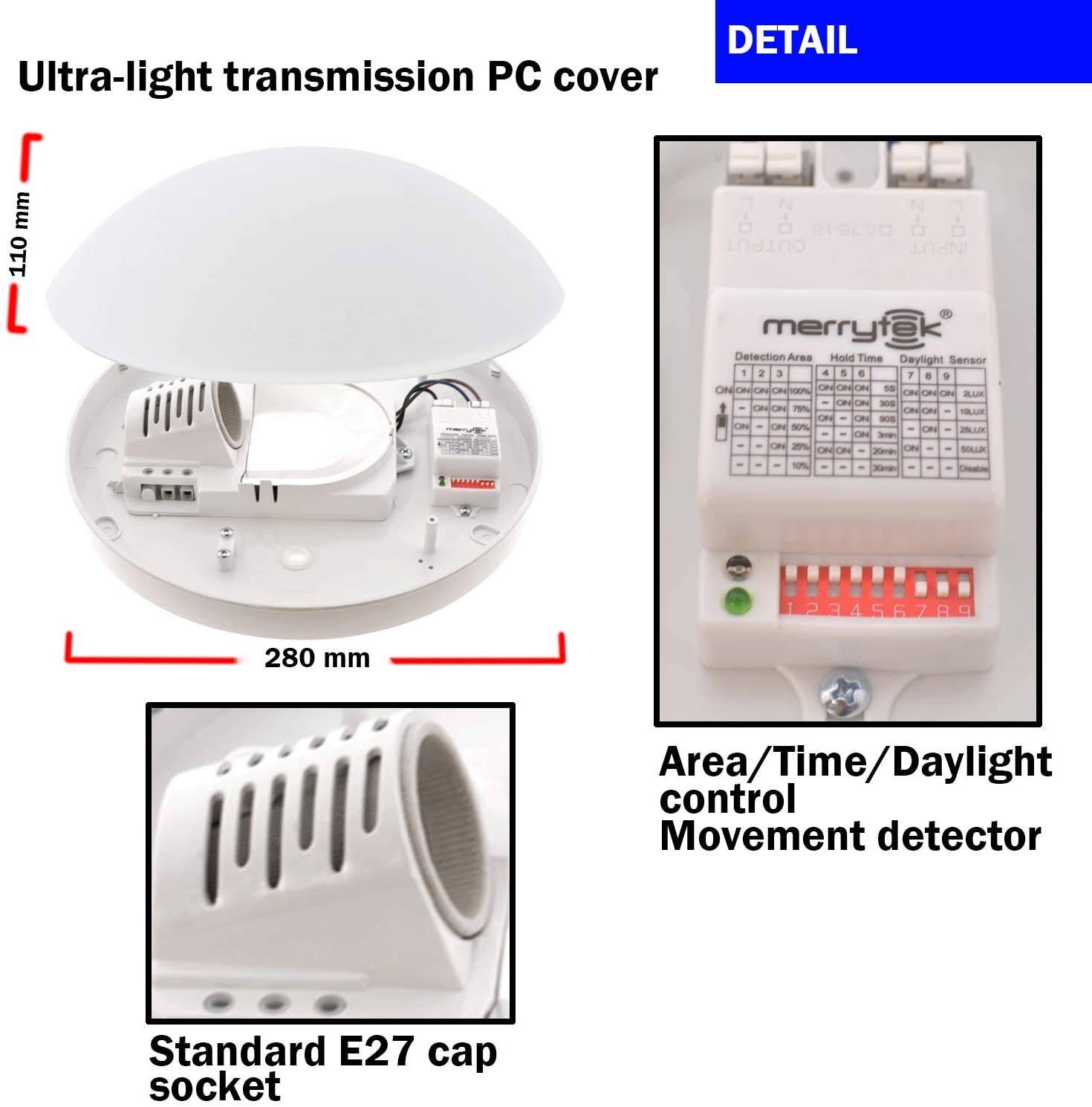

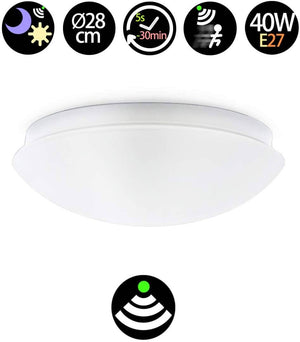

Surface mounted LED ceiling light with sensor, can be used on walls or ceilings. No visible screws. With a detection angle of 150˚ in wall and 360˚ in ceiling. Ideal for placement in different environments, used with E27 bulbs, not included, has a diameter of 280x110mm.
**Bulb not included**.
- Ø30x103mm
- E27
- IP44
Detailed Description

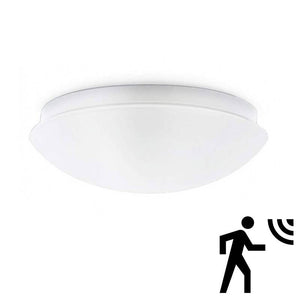

Surface mounted LED ceiling lamp with motion sensor
The LED ceiling light for E27 bulbs with motion sensor is the ideal system to save light in spaces where we can get lost and leave the light on or for all those who do not want to press the switch.

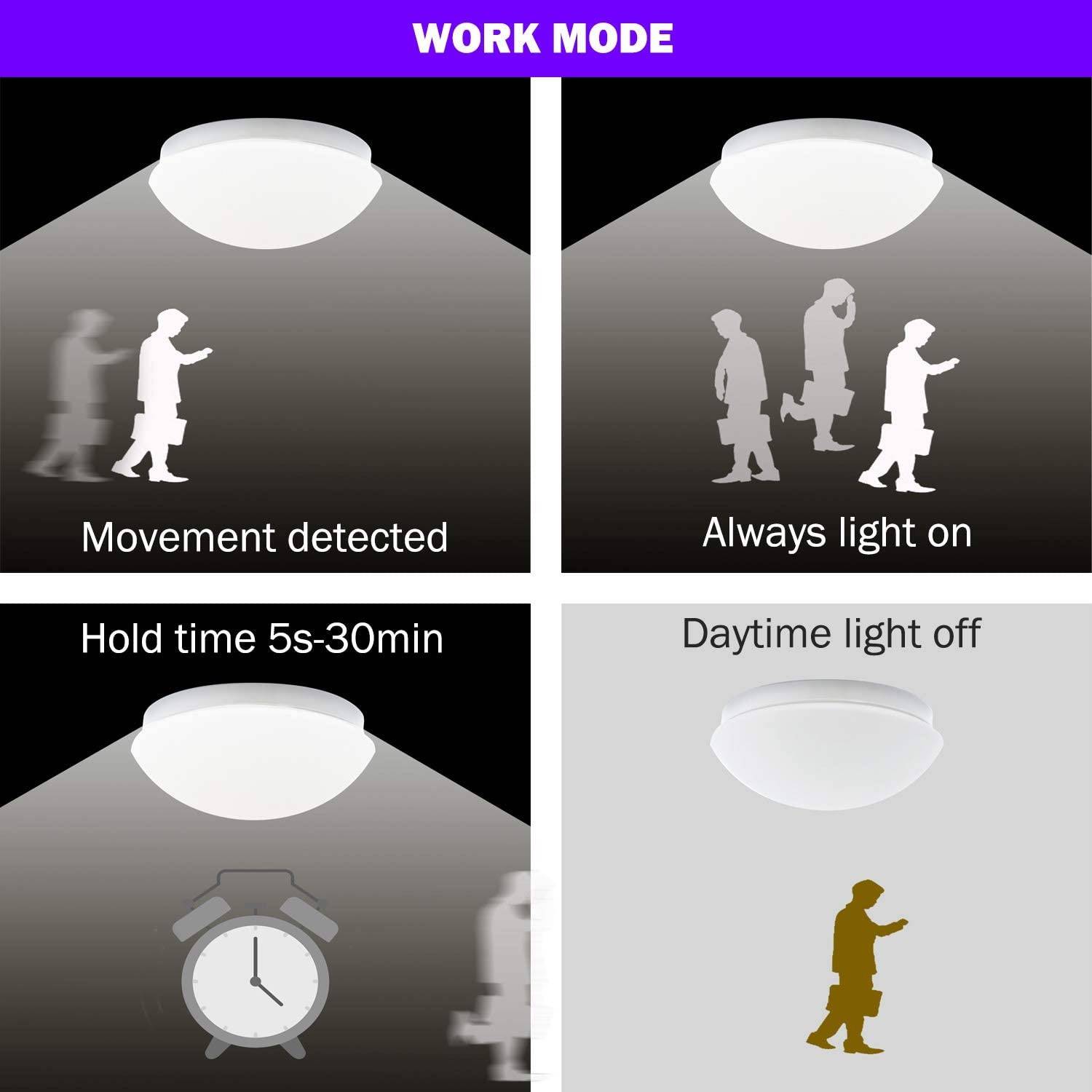

It has a radar system that turns on the luminaire automatically when it detects movement in its radius of action. When the waiting time set on the dimmer has elapsed and no movement is detected, the light switches off again.
Depending on what we need in each moment we can adjust many parameters of the operation of the ceiling light. We can adjust the waiting time for the light to turn off when it stops detecting movement, from 5 seconds to 30 minutes and we can also regulate the ambient light sensor to define if we want the lamp to illuminate below the defined threshold.
The E27 LED ceiling lamp with motion sensor has an IP44 protection that guarantees its operation in humid areas, places where there may be condensation due to water vapor such as bathrooms.
The luminosity offered by the ceiling light will depend on the E27 bulb (not included) that we install in it.

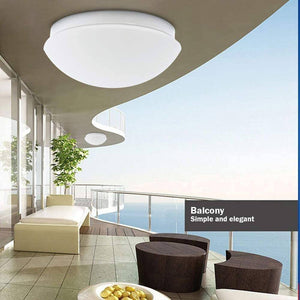

This ceiling light is especially practical in transit areas such as corridors, stairs or hallways and in bathrooms, as general LED lighting, both in the home and in stores, hotels, etc..

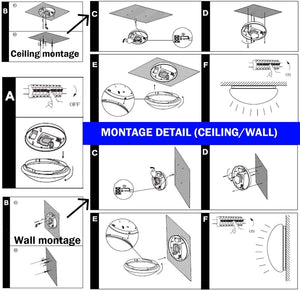

Its installation is very simple
1. Remove the current to avoid accidents.
2. Screw the bracket to the ceiling or wall.
3. With the included power strips, make the electrical connections (make sure that the power is not on to avoid accidents).
4. Screw the LED ceiling light into the bracket.
All mounting accessories are included in the kit. You will only need a drill to drill the ceiling and a screwdriver to fix the LED downlight and make the connections.
It has a motion detection of 0.5 to 3 meters per second and a detection zone of 12 meters distance by six meters height. The sensor is activated whenever it detects motion. It is characterized by its presence and brightness detector.
- Nominal Load
- 400W (inductive), 800W (resistive)
- Transmitting power
- <0.5mw
- Detection area (DXH)
- 12m x 6m
- Frequency band
- ISM (5.8GHz ± 75MHz)
- Detection sensitivity
- 10%/20%/50%/75%100%
- Standby time
- 5s/30s/90s/3min/20min/30min
- Ambient light sensor
- 2lux/10lux/25lux/50lux/OFF
- Installation height
- 6m Max.
- Motion detection
- 0.5-3m/s
- Detection angle
- 150˚ Wall - 360˚ Ceiling
- Working temperature
- -20°C~+60°C
Detection area:

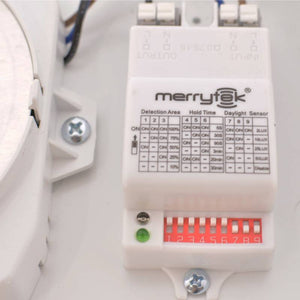

The sensing area can be reduced by selecting the combination on the DIP switches to precisely match each application.
Standby time :
Period of time that the lamp remains at 100% illumination after the sensor no longer detects motion.<img src="https://www.barcelonaled.com/img/cms/LV269/Captura%20de%20pantalla%202020-02-13%20a%20las%2020-31-46.png" alt="Captura de pantalla 2020-02-13 a las 20-31-46.png" width="225"/>
Ambient light sensor
The sensor can be configured to allow the lamp to illuminate below a defined ambient light threshold. When set to Disable mode, the daylight sensor will turn on the lamp when motion is detected, regardless of the ambient light level.
50lux, 30lux: twilight operation, 10lux, 2lux: low light operation.
 | Wall mounting (unit:m) suggested installation height: 1-1.8m |
 | Ceiling mount (unit:m) suggested installation height: 2.5-6m |
