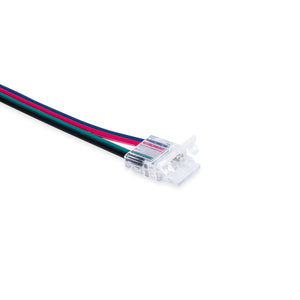

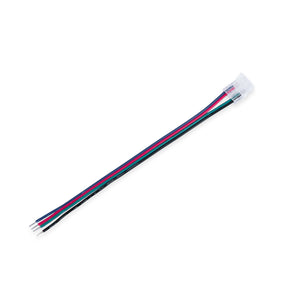

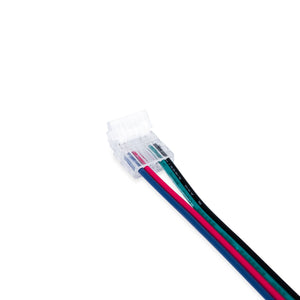

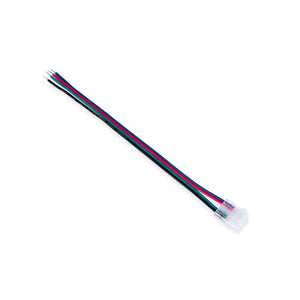

Hippo COB RGB strip-to-controller connector - 10mm PCB - 4 pin - IP20 - Max 24V

Name: Hippo COB RGB strip-to-controller connector - 10mm PCB - 4 pin - IP20 - Max 24V
Brand: Barcelona LED
SKU: MN20-X10C-4PW
Price: 1.28 EUR
Availability: InStock

SKU: MN20-X10C-4PW

1,28€

IVA incluido

Register as a professional and get your discount

Hippo quick connector for LED strip to controller connection. Suitable for RGB COB LED strips with 10mm PCB.

IP20 protection. Supports voltages between 3-24V.

1122 in stock

Detailed Description

Hippo 4-pin connector strip to controller - 10mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 10mm PCB LED strip to controller.

It supports 22AWG gauge cables.

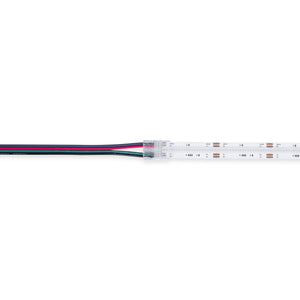

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

It's valid for all COB RGB LED strips with a 10mm wide PCB and a maximum of 24V.

Product features:

Input voltage: 3-24V DC
Maximum intensity: 3.5A
LED strip type: COB
PCB width: 10mm
LED strip width: 0.25~0.35mm
Number of pins: 4
Supported wire gauge: 22AWG (OD<1.70mm)
Dimensions: 16.5 x 11.7 x 4.3mm
Indoor use: IP20
