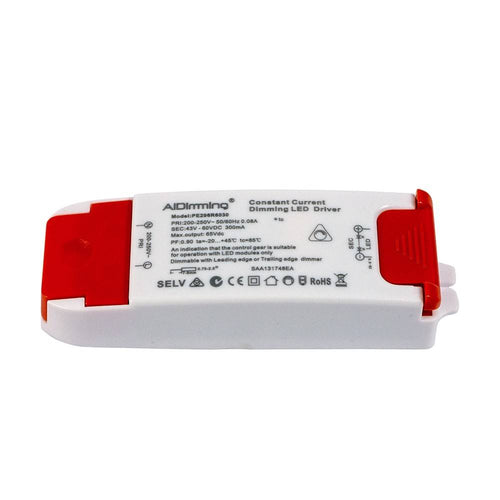

Dimmable TRIAC constant current driver 43-60V 18W 300mA
Dimmable TRIAC LED Driver 18W / dimmable. Designed for 43-60VDC LED luminaires and maximum intensity 300mA. Equipped with EMC filter to avoid interference with radio and WiFi, as well as a flicker-free system, avoiding flickering both in lighting and during dimming.
- 230V in
- 43-60VDC out
- 300mA
- fp 0.9
- IP20
Detailed Description
Dimmable TRIAC constant current 18W 43-60VDC 300mA dimmable TRIAC Driver
Dimmable TRIAC LED driver TRI AC dimmable in intensity that provides constant current to LED strips, lamps and LED luminaires of 43-60VDC with a maximum intensity of 300mA.
With homogeneous and fluid regulation, without flickering or jumps, it incorporates EMC filtering to avoid harmonic interference with WiFi, radio and music signals. Its design also allows it to emit FLICKER-FREE / Flicker-FREE light, thus obtaining a much more pleasant illumination for the eyes, avoiding visual fatigue and favoring study and work.
The maximum power supported by the driver will depend on the direct relationship between voltage and amperage. If you have any questions, our technical sales department is at your disposal by clicking here.
Technical characteristics of the dimmable driver 18W 43-60VDC 300mA
- AC IN 200-250V
- SEC: 43-60VDC
- DC: 300mA
- No wiring
- EMC filtering
- Power factor 0.90
- Regulation: TRIAC
- Dimensions: 28x44x125mm
- IP20
- Certifications: CE, RoHS, TUV, EMC, SAA, LVD
