Strip to power supply Hippo COB single colour connector - 10mm PCB - 2 pin - IP20 - Max 24V

SKU: MN20-X10C-2PW
Sale price 1,29€
IVA incluido

Register as a professional and get your discount

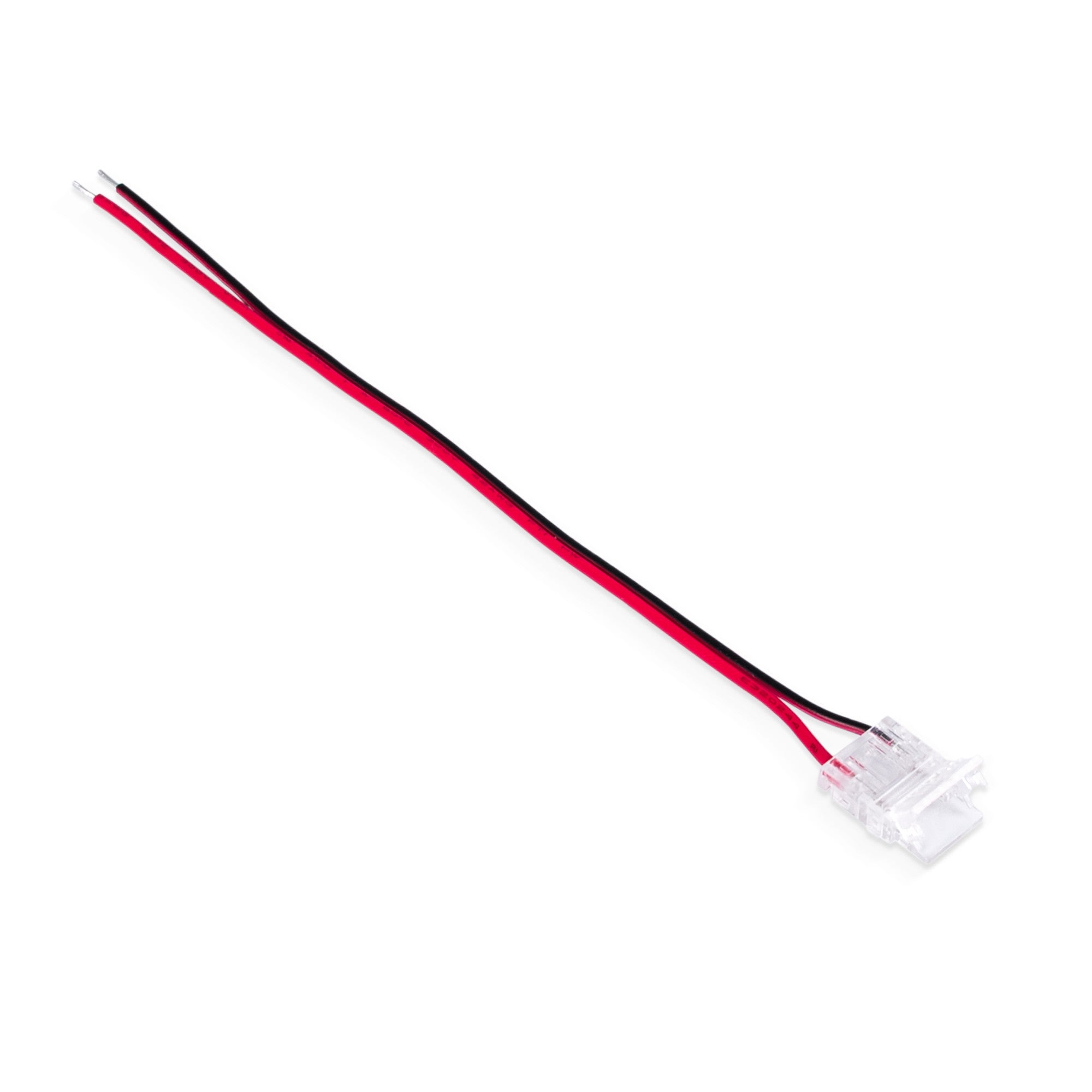

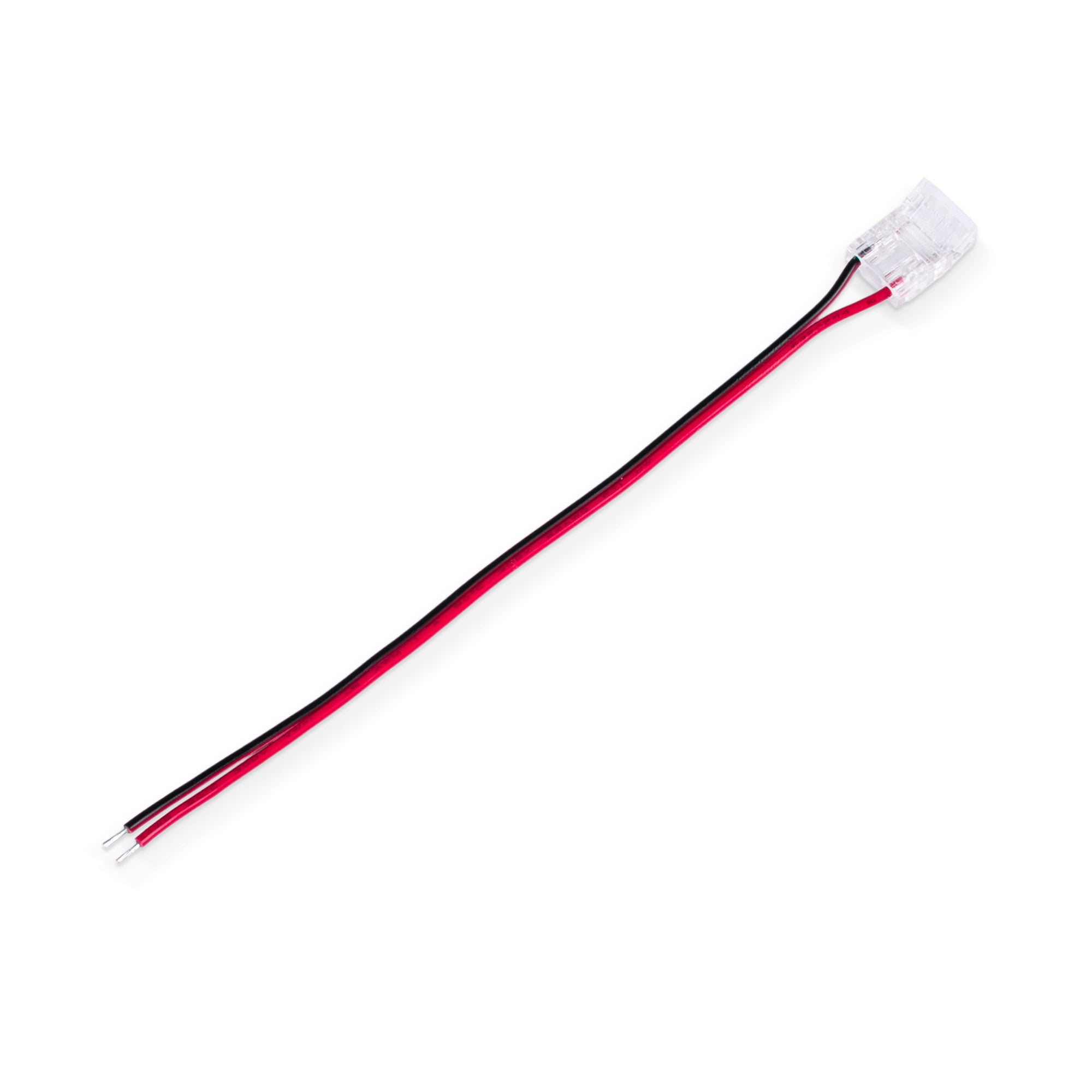

Hippo quick connector for LED strip to power supply connection. Suitable for single colour COB LED strips with 10mm PCB.

IP20 protection. Supports voltages between 3-24V.
804 in stock

Hippo 2-pin connector strip to power supply - 10mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 10mm PCB LED strip to power supply.

It supports 22AWG gauge cables.

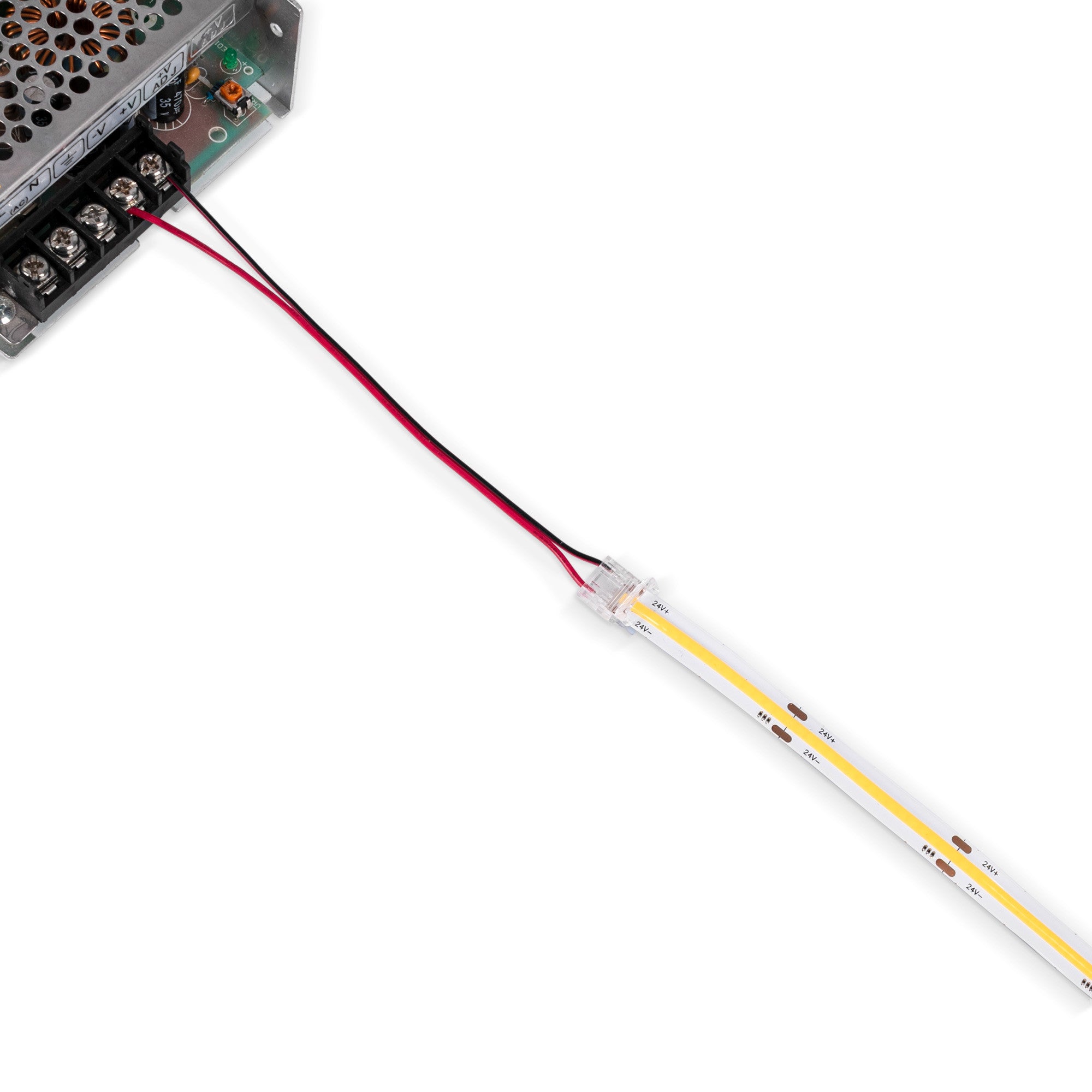

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

It includes a 150mm-long connection cable.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

It's valid for all COB single colour LED strips with a 10mm wide PCB and a maximum of 24V.

Product features:

  • Input voltage: 3-24V DC
  • Maximum intensity: 3.5A
  • LED strip type: COB
  • PCB width: 10mm
  • LED strip width: 0.25~0.35mm
  • Number of pins: 2
  • Supported wire gauge: 22AWG (OD<1.70mm)
  • Cable length: 150mm

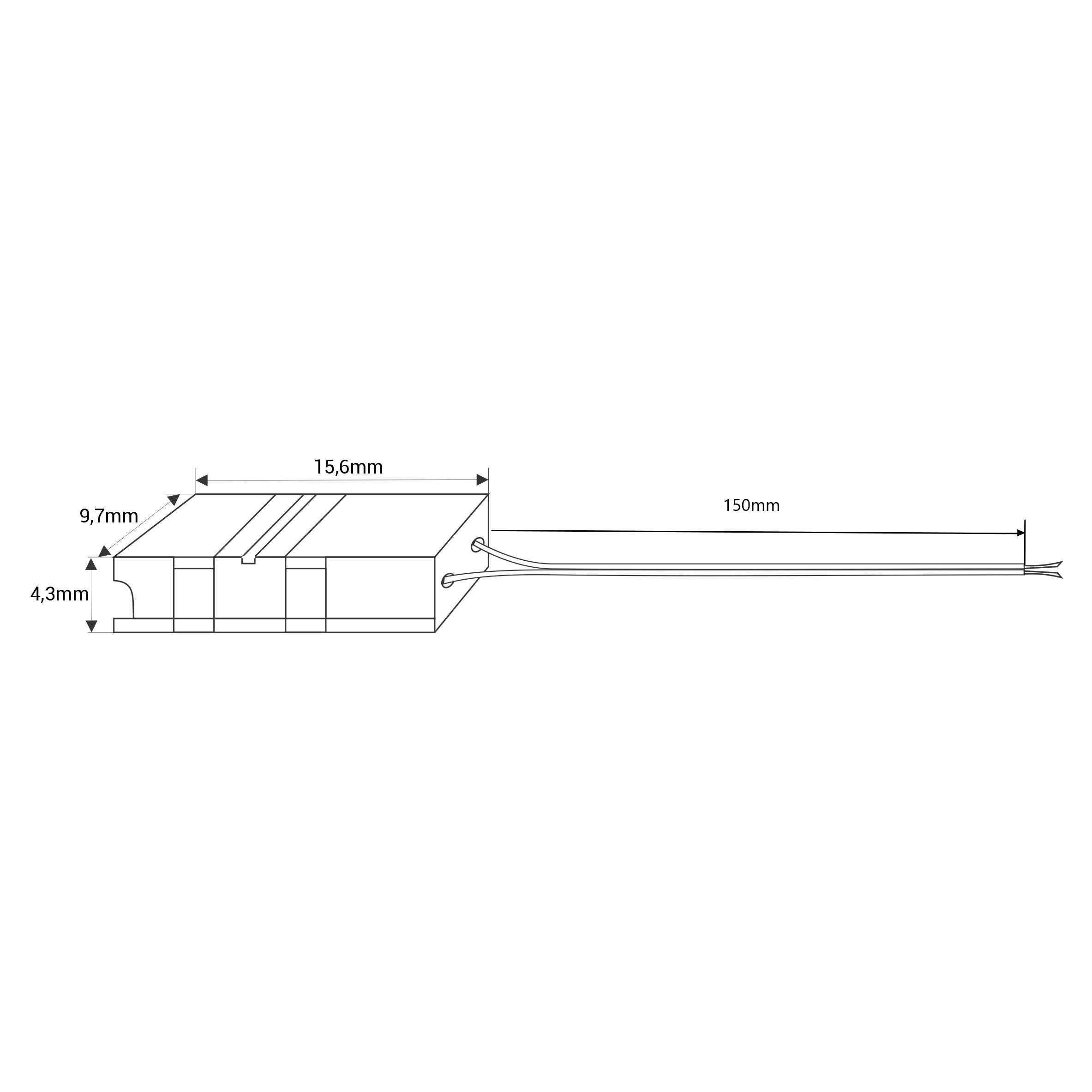

  • Connector dimensions: 16.5 x 11.7 x 4.3mm
  • Indoor use: IP20

Contact us +34621022641

Conector Hippo monocolor COB Tira a fuente - PCB 10mm - 2 pines - IP20 - Máx. 24V

Strip to power supply Hippo COB single colour connector - 10mm PCB - 2 pin - IP20 - Max 24V

1,29€
Certificates
  • CE
  • ROHS
Warranty
  • According to legal warranty: 3 years
Maximum Current (A) 3.5
Translation missing: en.metafields_labels.intensidad_maxima_a 1 3.5
Material
  • Polycarbonate
Technology
  • COB
Nominal Voltage V
  • 3-24V DC
Type of Light Monocolor
Led Type
  • COB
Project Type
  • Residential
