Recessed CCT Backlight LED Panel - 60x60cm - 30W - 125lm/W - IP65

SKU: B5235-IP65-CCT
Sale price 54,99€
IVA incluido

The Backlight LED panel features backlight or backlit technology, which combines innovative optical and mechanical design features to achieve high-efficiency, uniform lighting with minimal glare.

It has a power of 30W, a high efficacy of 125lm/W and a high color rendering index, CRI>80.

Due to its IP65 protection rating, it's suitable for use in damp environments

It incorporates a CCT selector, which allows adjusting the color temperature between warm white (3000K), neutral white (4000K) and cool white (6000K).

Product Image with Link

Recessed CCT Backlight LED Panel - 60x60cm - 30W - 125lm/W - IP65

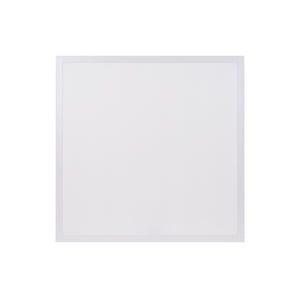

The 60x60cm LED backlight panel is designed for recessed installation in false ceilings or directly in plasterboard using a recessing frame (not included). Its modern and elegant design is adaptable to any environment.

Thanks to its backlight or backlit technology, it offers uniform light distribution with high efficacy (125lm/W), superior to traditional LED panels.

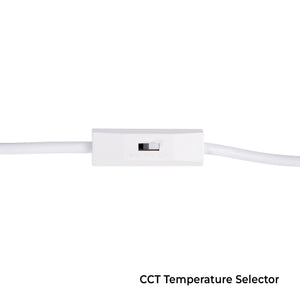

Its CCT system allows adjusting the color temperature in three tones: warm light (3000K), neutral light (4000k) and cold light (6000K). The color temperature is easily selected through a small selector located on the power cable.

It's manufactured with high quality components that guarantee a long service life, without acquiring a yellowish hue over time. It's a high-quality, efficient and reliable option for the home, office or business.

Due to its IP65 protection rating, this panel is suitable for outdoor use.

It's not compatible with surface or suspension kits.

Applications of the LED Backlight Panel - IP65

This panel can be used in high-humidity environments such as:

Bathrooms

Kitchens

Spa or indoor pool areas

Covered outdoor areas

Industrial facilities

Covered sports facilities

Greenhouses

Washing and cleaning areas

Hospitals

Product features:

  • Backlight technology
  • Rated voltage: 220-240V AC
  • Power rating: 30W
  • UGR<19
  • Recessed installation
  • Dimensions: 596 x 596 x 30mm
  • CCT system: warm white (3000K), neutral white (4000K) and cool white (6000K)
  • CRI>80
  • Outdoor use: IP65

Contact us +34621022641

Opening Angle
  • 120
Certificates
  • CE
  • ROHS
Short Description

The Backlight LED panel features backlight or backlit technology, which combines innovative optical and mechanical design features to achieve high-efficiency, uniform lighting with minimal glare.

It has a power of 30W, a high efficacy of 125lm/W and a high color rendering index, CRI>80.

Due to its IP65 protection rating, it's suitable for use in damp environments

It incorporates a CCT selector, which allows adjusting the color temperature between warm white (3000K), neutral white (4000K) and cool white (6000K).

Driver External
Efficiency lm/W 125
Space
  • Bathroom
Features
  • Fixed
  • Color change
Warranty
  • 5 years
Dimension Image files/55925.jpg
Translation missing: en.metafields_labels.imagen_de_cota files/55925.jpg
Kelvin
  • 3000
  • 4000
  • 6000
Mounting
  • Recessed
  • Suspended
Power W 30
Product
  • LED Panels
Similar Products
  • B5235
  • B5235-UGR18
  • B5235-RGBW
  • K5235-10
  • K5235-4
  • K5235-TRIAC
  • K5235-0-10
  • K5235-PUSH
  • K5235-DALI
  • B5235-BACKLIGHT
  • K5235-3CCT-2
  • K5235-3CCT-4
Size
  • 60x60
Technology
  • Backlit Panels
Color Temperature
  • Warm Light
  • Neutral Light
  • Cool Light
Nominal Voltage V
  • 220 - 240 V AC
Type of Light CCT / dual white
Energy Efficiency URL https://eprel.ec.europa.eu/labels/lightsources/Label_1666606_big_color.svg
Usage
  • Outdoor Use
