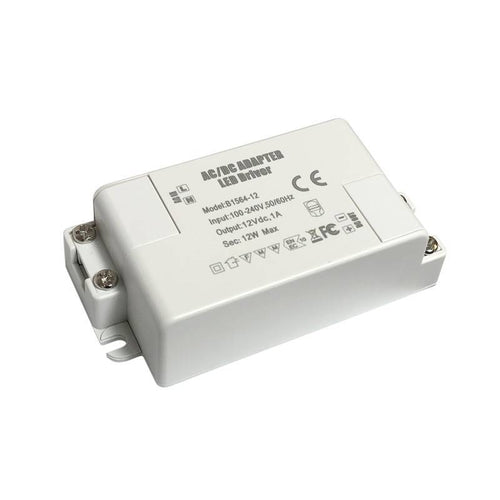

Power Supply 12V DC 12W 1A 100-240V
12V-DCpower supply with 12W of power. Resistant to short circuit, humidity, overvoltage, overpower, overcurrent and overheat protection. Mainly used with 12V-DC LED strips.
Input voltage 100-240V and 12V-DC 1A output. Dimensions: 76x38x23mm. IP20.
Detailed Description
12V-DC 12W POWER SUPPLY
Power supply with 12W nominal power. Input voltage of 100-240V and 1A output at 12V-DC. Designed for connecting LED strips with 12V voltage. With great heat dissipation, protecting overheating, and being resistant to moisture, overvoltage and short circuit. It compensates the voltage drop between the power supply and the consumption point. The power supplies have overload and overvoltage protection. High quality housing.
Applications
Suitable for use in hotels, offices, home, commercial, domestic, etc.
Power supply of LED strips at 12V-DC, as well as any other element with 12V-DC working voltage, without exceeding the maximum power of 12W of the power supply.
Characteristics of the 12W power supply
- Power rating: 12W.
- Input voltage: 100-240V-AC.
- Input current: 1A.
- Power factor: >0.6.
- Output voltage: 12 V-DC.
- IP Protection: IP20.
- Maximum ambient temperature 45ºC.
- Very narrow housing: 23mm.
- Dimensions: 76x38x23mm.
