T-shaped quick connector for 1 wire - 0.34~0.78 mm² - 300V / 9A

SKU: WJ-T-1C
Sale price 5,00 PLN
IVA incluido

Register as a professional and get your discount

T quick connector for a single-pin, 1-wire cable, supports up to 300V and 9A.

Compatible with Ø0.34-0.78mm² cables. Indoor use, IP40.

**Cable not included**
779 in stock

Quick cable T-connector - 1 pin

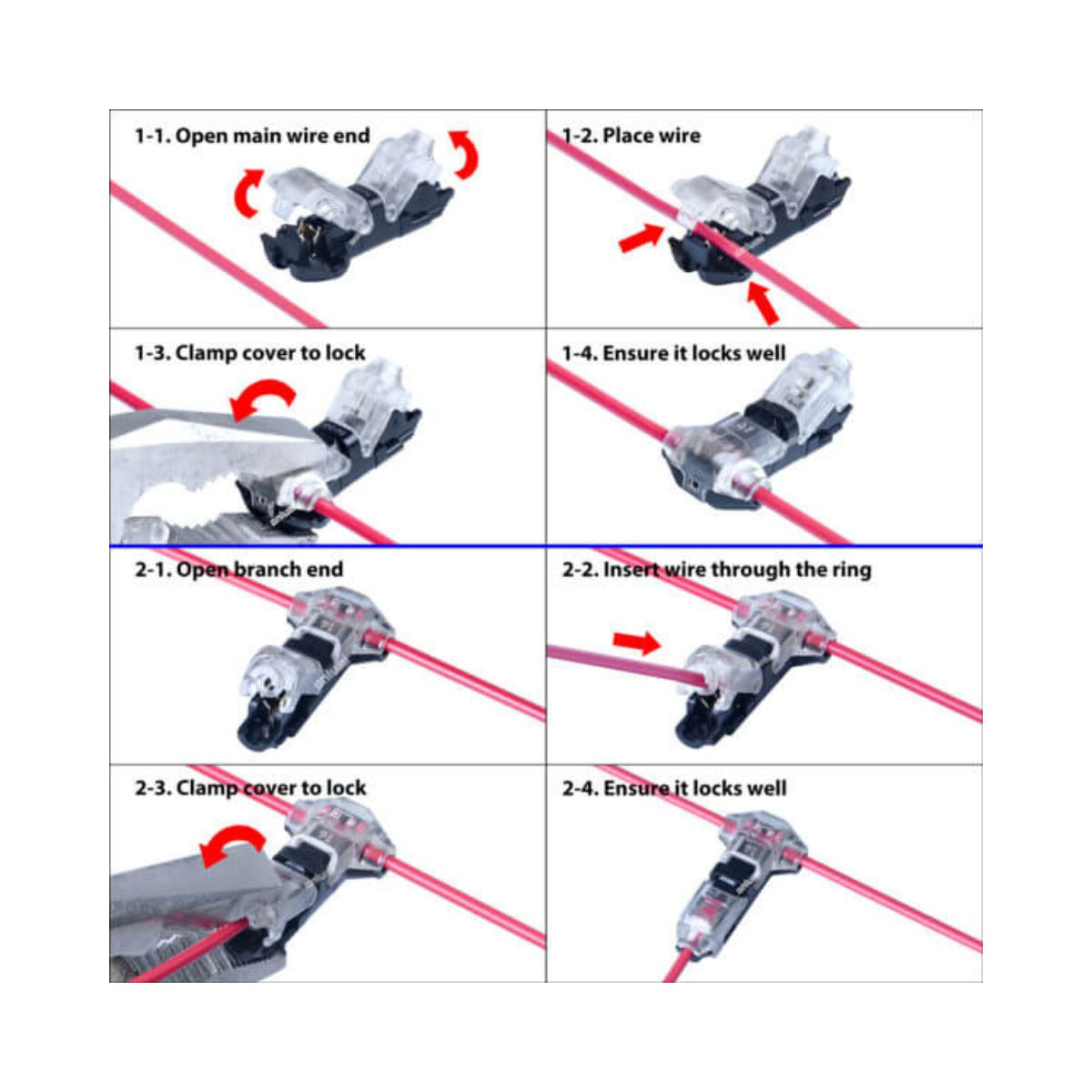

Fast serial connector perfect for efficient indoor connections. Installation is simple and safe, ideal for electrical projects where speed is key.

  • Voltage and current: Supports up to 300V and 9A per pin.
  • Wire types: Compatible with solid and stranded wires(Ø0.34-0.78mm²)
  • Fire resistance: UL94v-1 rated
  • IP40 protection: indoor use
  • Certifications: CE and RoHs

Contact us +34621022641

Conector rápido en T para 1 cable - 0.34~0.78 mm² - 300V / 9A

T-shaped quick connector for 1 wire - 0.34~0.78 mm² - 300V / 9A

5,00 zł

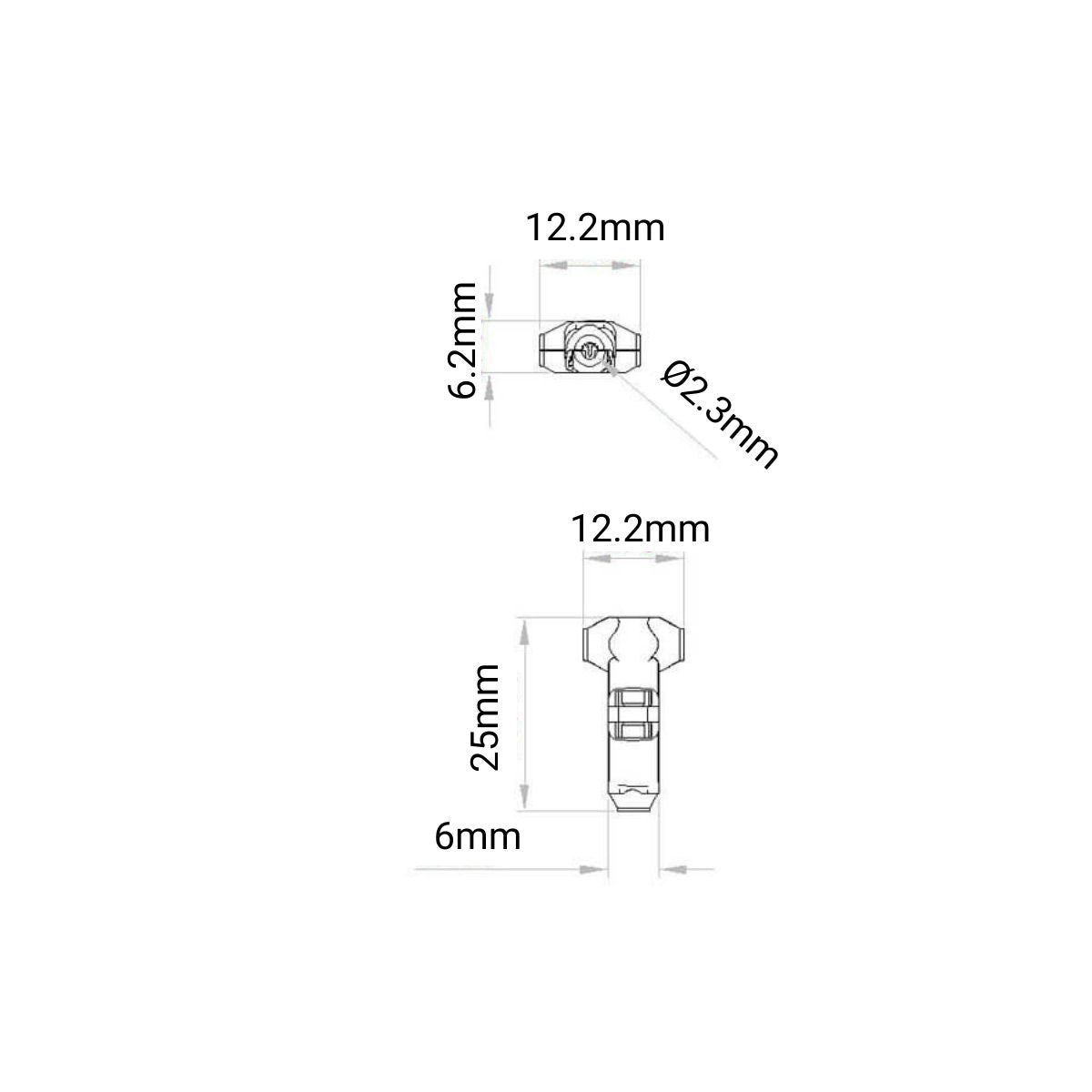

Height 6.2mm
Certificates
  • CE
  • ROHS
Warranty
  • According to legal warranty: 3 years
Maximum Current (A) 9
Translation missing: en.metafields_labels.intensidad_maxima_a 1 9
Length 25mm
Project Type
  • Residential

Downloads

Product specifications
