Hippo COB single colour Strip-to-Strip connector - 8mm PCB - 2 pin - IP20 - Max 24V

SKU: MN20-B8C-2P
Sale price 6,00 PLN
IVA incluido

Register as a professional and get your discount

Hippo quick connector for LED strip-to-strip connection.

Suitable for single colour COB LED strips with 8mm PCB.

IP20 protection. Supports voltages between 3-24V.
200 in stock

Hippo 2-pin connector strip to strip - 8mm PCB - IP20 - Max 24V

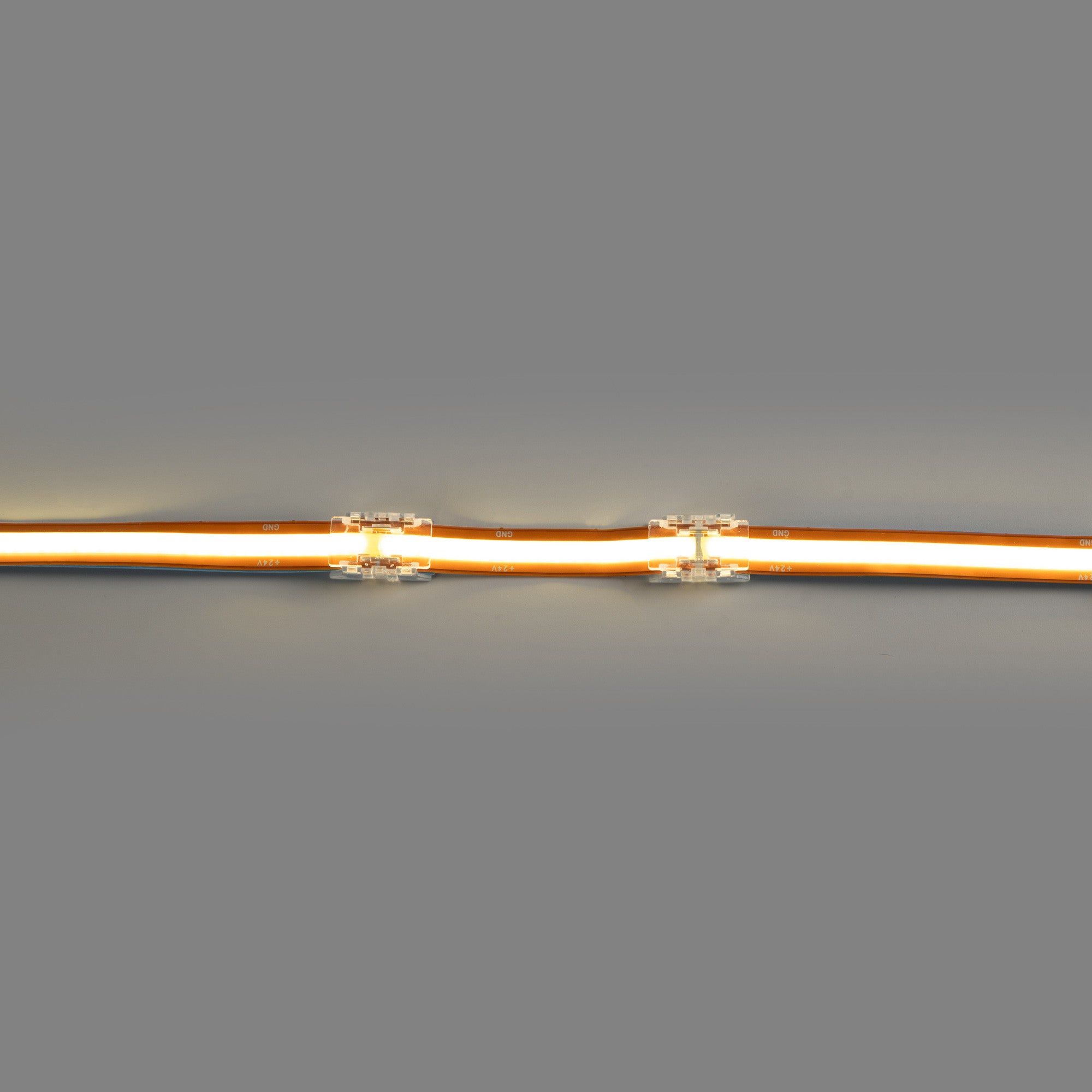

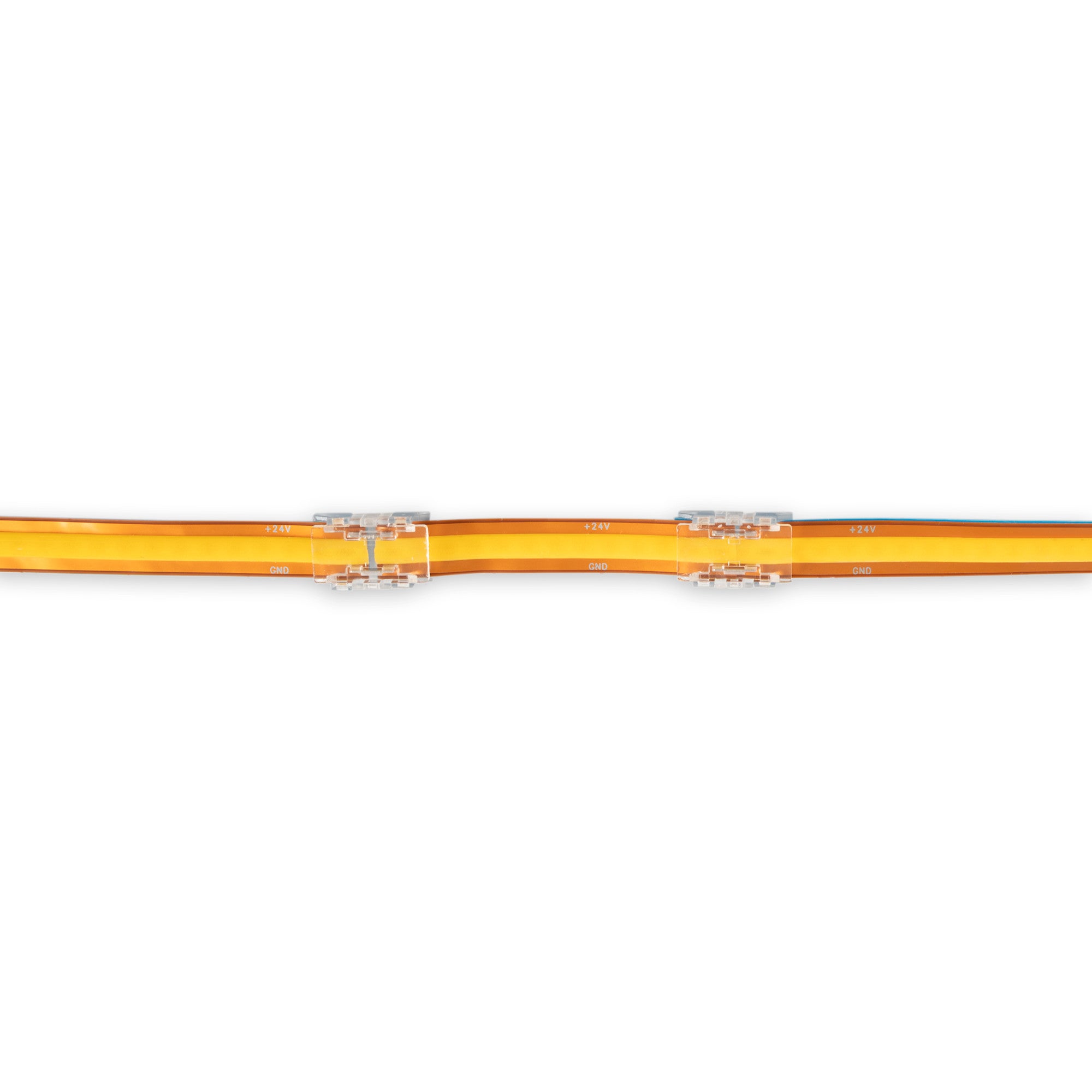

Hippo quick connector for connection of two 8mm PCB LED strips.

It's valid for all single colour COB IP20 LED strips with a 8mm wide PCB and a maximum of 24V.

For installation, insert the strips into the terminals of the HIPPO connector. Then close the caps gently until you hear a click.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

Product features:

  • Input voltage: 3-24V DC
  • Maximum intensity: 3.5A
  • LED strip type: COB
  • PCB width: 8mm
  • LED strip width: 0.25~0.35mm
  • Number of pins: 2
  • Dimensions: 15.6 x 9.7 x 4.3mm
  • Indoor use: IP20

Contact us +34621022641

Conector Hippo monocolor COB Tira a Tira - PCB 8mm - 2 pines - IP20 - Máx. 24V

Hippo COB single colour Strip-to-Strip connector - 8mm PCB - 2 pin - IP20 - Max 24V

6,00 zł
Certificates
  • CE
  • ROHS
Dimension 15.6 x 9.7 x 4.3
Warranty
  • According to legal warranty: 3 years
Maximum Current (A) 3.5
Translation missing: en.metafields_labels.intensidad_maxima_a 1 3.5
Material
  • Polycarbonate
Technology
  • COB
Nominal Voltage V
  • 3-24V DC
Type of Light Monocolor
Led Type
  • COB
Project Type
  • Residential
