Sign modules 1.2W IP65 12V with 3xSMD2835 160º Chips
12V direct signage LED chip without transformer.
Chips: 3xSMD2835
Power: 1.2W
IP 65
Open angle 160º.
Warm white 3000K and cold white 6000ºK
Price per unit
Detailed Description
ADHESIVE LED MODULES FOR ILLUMINATED SIGNS 1.2W OPEN ANGLE 160º.
The LED modules for signage are the perfect solution when illuminating backlit surfaces with opal cover, or in those curved or irregular surfaces where the LED strip is not the right solution.

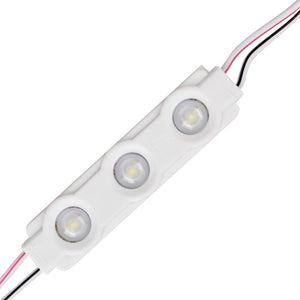

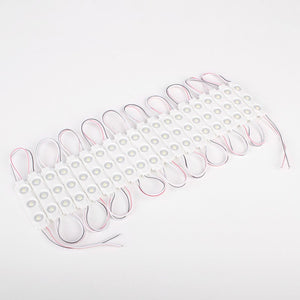

Each module consists of 3 SM2835 LED chips encapsulated in a watertight plastic chip, connected to each other by an electrical cable that is 70mm from one module to the other.

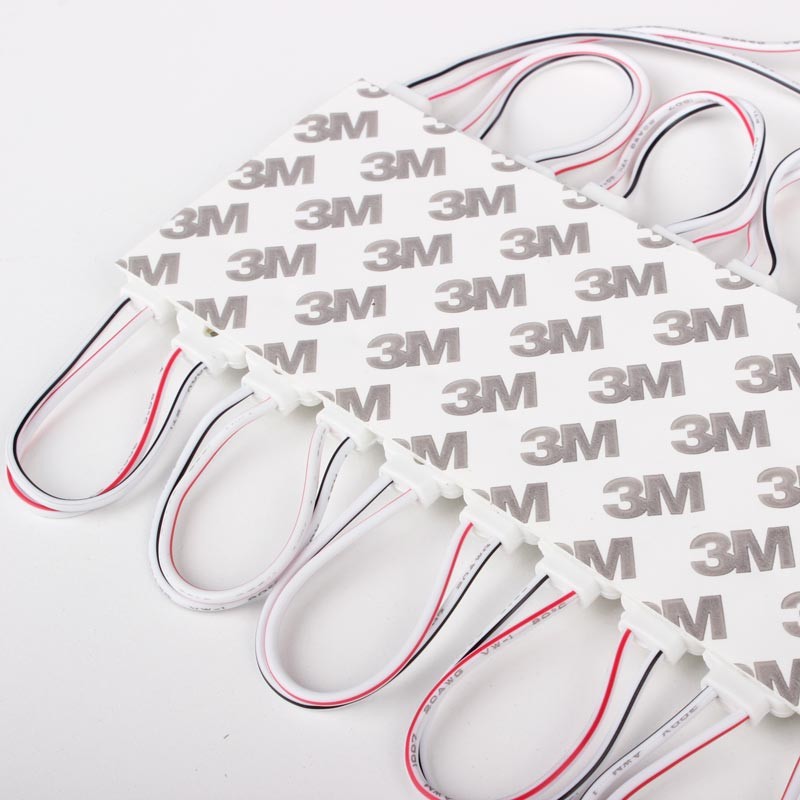

The chips are all glued in line on the back with 3M self-adhesive, very easy to separate with the cut of a scissors or cuttex. Afterwards, the plastic covering the 3M is separated and glued in the chosen place in line or creating shapes.
High performance with easy direct mounting to 12V.
Despite its small size, 3 SM2835 chips per chip, has a power of 1.2W, each module. The illumination is equivalent to an installation of fluorescent tubes in backlit panels, signs or labels.

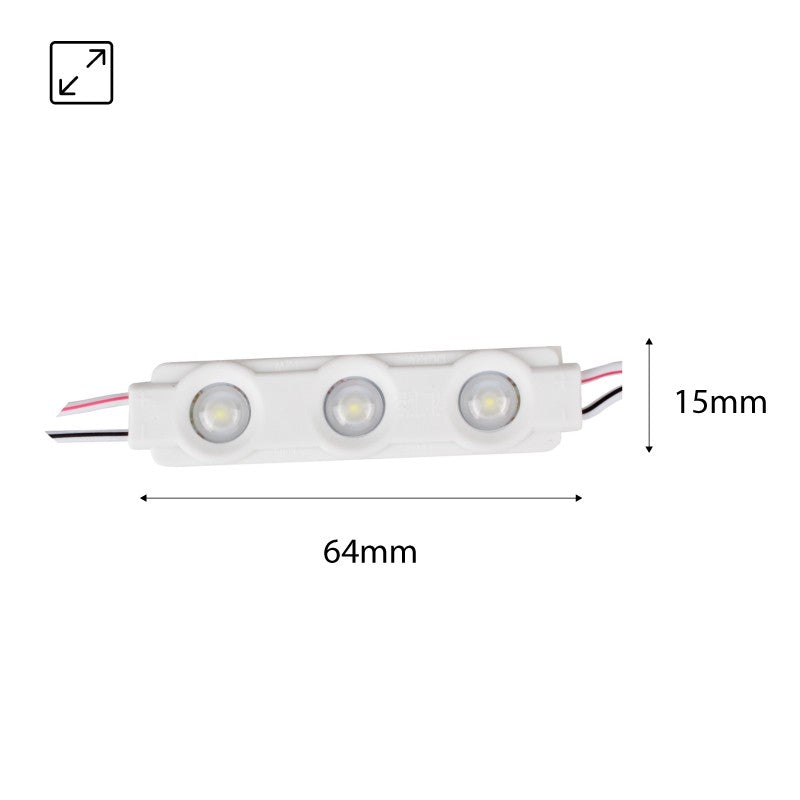

- Dimensions of the modules: 64x15mm
- Thickness of the tablets: 6mm
- Length of cable between the pads: 70mm
- Available in warm white 3000K and cool white 6000ºK.
- Not dimmable.
Applications of the LED modules:
- Its most common application is signage, such as illuminated signs, giant letters illuminated from the inside, logos, advertising light boxes....
- Illumination of objects inside such as modding in computers or inside furniture or boxes.
- Illumination of fish tanks and aquariums.
- Decoration of exteriors
- Backlighting in general.
Sign modules 1.2W IP65 12V with 3xSMD2835 160º Chips
