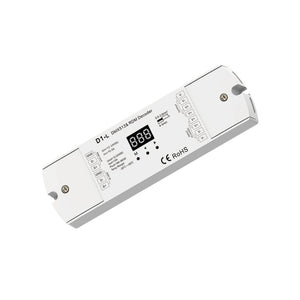

DMX512 Decoder 12-24V DC - 15A - 1 Channel
The DMX512 Decoder is an LED lighting control device with 1 output channel with a maximum current of 15A. It's compatible with 12-24V input voltages.
It uses DMX512 input signal and provides PWM output signal to achieve smooth lighting control.
It supports RDM remote control, allows to select output resolution and PMW frequency setting.
Detailed Description
The DMX512D Decoder is an advanced and complete solution for controlling LED lighting. It provides 1 constant voltage output channel with 15A and a power capacity of up to 360W.
It has RDM function that allows remote control via a DMX master.
Its digital numeric display and intuitive buttons make operation easy.
The PMW frequency is adjustable between 250 and 16000 Hz, allowing precise control of light intensity.
It allows selecting between 8 or 16 bit gray levels and adjusting the dimming curve.
The decoder also features selectable standalone modes, such as dynamic mode and dimming mode, which can be controlled via integrated buttons with predefined programs, enabling operation without the need for an external DMX signal.
To ensure the safety and durability of the equipment, the decoder is equipped with protection against overheating, overload and short-circuit, with the ability to automatically recover after these adverse conditions are resolved.
| Product features:
|
