Hippo SMD RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V

SKU: SEN12BB-5
Sale price 0,49€
IVA incluido

Register as a professional and get your discount

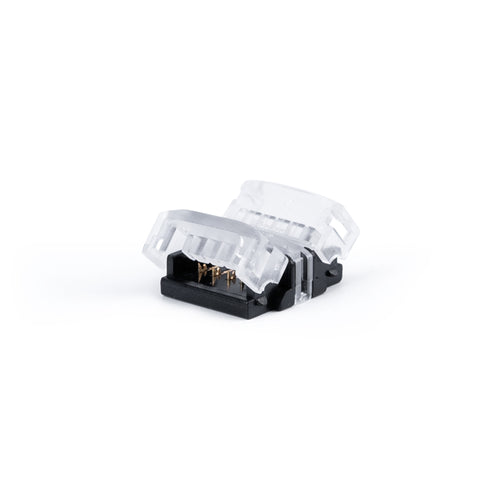

Hippo quick connector for LED strip to strip connection.

Suitable for RGBW SMD LED strips with 12mm PCB.

IP20 protection. Supports voltages between 3-24V.

991 in stock

Hippo 5-pin connector strip to strip - 12mm PCB - IP20 - Max 24V

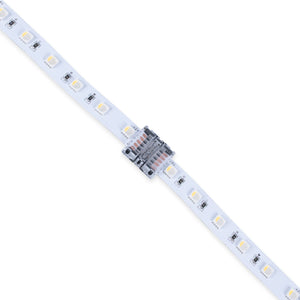

Hippo quick connector for connection of two 12mm PCB LED strips.

It's valid for all RGBW LED strips with a 12mm wide PCB and a maximum of 24V.

For installation, insert the strips into the terminals of the HIPPO connector. Then close the caps gently until you hear a click.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: SMD
  • PCB width: 12mm
  • Number of pins: 5
  • Dimensions: 19.6 x 17 x 7.7mm
  • Indoor use: IP20

Contact us +34621022641

Conector Hippo RGBW SMD Tira a Tira - PCB 12mm - 5 pines - IP20 - Máx. 24V

Hippo SMD RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V

0,49€
Certificates
  • CE
  • ROHS
Dimension 19.6 x 17 x 7.7
Warranty
  • According to legal warranty: 3 years
Maximum Current (A) 3.5
Translation missing: en.metafields_labels.intensidad_maxima_a 1 3.5
Material
  • Polycarbonate
Nominal Voltage V
  • 3-24V DC
Project Type
  • Residential
