Hippo SMD RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V

SKU: SEN12XB-6
Sale price 1,29€
IVA incluido

Register as a professional and get your discount

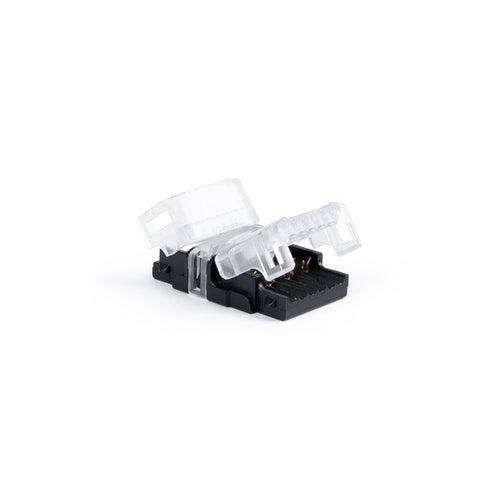

Hippo quick connector for LED strip to cable connection.

Suitable for RGB+CCT SMD LED strips with 12mm PCB.

IP20 protection. Supports voltages between 3-24V.

1142 in stock

Hippo 6-pin connector strip to cable - 12mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 12mm PCB LED strip to cable.

Accepts 22AWG/0.32mm2 gauge wire.

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

Valid for all RGB+CCT LED strips with a 12mm wide PCB and a maximum of 24V.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: SMD
  • PCB width: 12mm
  • Number of pins: 6
  • Supported wire gauge: 22AWG/0.32mm2
  • Dimensions: 24.3 X 17 X 7.7mm
  • Indoor use: IP20

Contact us +34621022641

Conector Hippo RGB + CCT SMD Tira a Cable - PCB 12mm - 6 pines - IP20 - Máx. 24V

Hippo SMD RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V

1,29€
Certificates
  • CE
  • ROHS
Dimension 24.3 x 17 x 7.7
Warranty
  • According to legal warranty: 3 years
Maximum Current (A) 3.5
Translation missing: en.metafields_labels.intensidad_maxima_a 1 3.5
Material
  • Polycarbonate
Nominal Voltage V
  • 3-24V DC
Project Type
  • Residential
