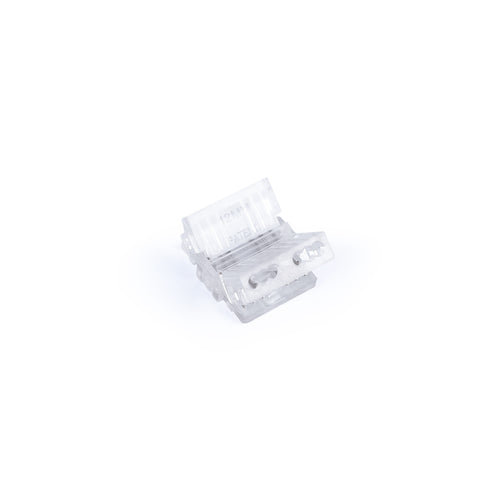

Hippo COB RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V

SKU: MN20-X12C-6P
Sale price 0,49€
IVA incluido

Register as a professional and get your discount

Hippo quick connector for LED strip to cable connection. Suitable for RGB+CCT COB LED strips with 12mm PCB.

IP20 protection. Supports voltages between 3-24V.

1048 in stock

Hippo 6-pin connector strip to cable - 12mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 12mm PCB LED COB strip to cable.

It supports 22AWG gauge cables.

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

It's valid for all RGB+CCT COB LED strips with a 12mm wide PCB and a maximum of 24V.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: COB
  • PCB width: 12mm
  • LED strip width: 0.25~0.35mm
  • Number of pins: 6
  • Supported wire gauge: 22AWG (OD<1.70mm)
  • Dimensions: 16.5 x 13.7 x 4.3mm
  • Indoor use: IP20

Contact us +34621022641

Conector Hippo RGB + CCT COB Tira a Cable - PCB 12mm - 6 pines - IP20 - Máx. 24V

Hippo COB RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V

0,49€
Certificates
  • CE
  • ROHS
Warranty
  • According to legal warranty: 3 years
Maximum Current (A) 3.5
Translation missing: en.metafields_labels.intensidad_maxima_a 1 3.5
Material
  • Polycarbonate
Technology
  • COB
Nominal Voltage V
  • 12-24V DC
Led Type
  • COB
Project Type
  • Residential
