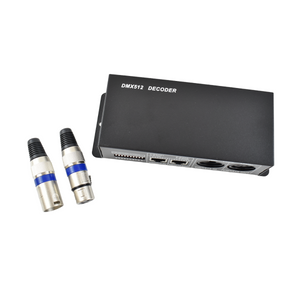

4-channel DMX decoder - DMX to RGBW
The 4-channel DMX-512 decoder converts DMX control signal into color control signals for 12V and 24V RGB and RGBW LED strips.
It works in standalone mode or connected to a DMX-512 console.
Detailed Description
4 Channel DMX to RGBW Decoder
The DMX-512 decoder is an advanced micro control unit that receives the standard DMX-512 digital control signal and transforms it into PWM (pulse width modulation) signal to activate and control LED lights at 12V and 24V.
When connected to a DMX digital console, it allows a wide range of dynamic effects on LED lights. In addition, when not connected to any digital console, it can be used as a synchronous controller, i.e. it can synchronously control a number of decoders and LED lights.
By using 4 channels it can control up to 4 different 12V or 24V LED luminaires.

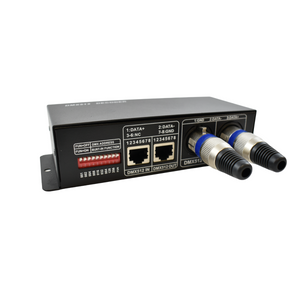

It can operate under DMX-512 digital control signals or in stand-alone mode with DIP switches. It uses two input/output interfaces: XLR-3 and RJ45.
Maximum load is 8A per channel: 32 A total.
This DMX-512 decoder features 4 addresses to control CH1, CH2, CH3 and CH4 outputs.
| Main product features:
|
4-channel DMX decoder - DMX to RGBW
