DALI Relay Switch
The SR-2701S is a Relay switch that completely shuts down devices with 100-240V/AC or 12/24V/DC line outages.
Mini size, easy to install in a standard wall box. Requires only 2 wires. Bus address assigned by DALI master, individual, group or controls with fade timers.
Detailed Description

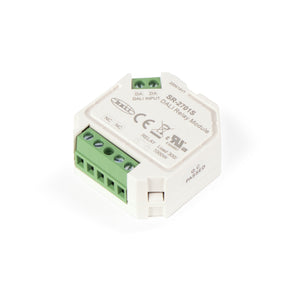

Relay DALI SR-2701S
The DALI SR-2701S RELAY switch is a mini-sized relay switch that completely shuts down devices with 220V/AC power line outages. Easy to install in a standard wall box. Bus addressing can be done by DALI master, individual, group or controls with fade timers. Only requires 2 wires.
Compatible load types:
1. LED, Fluorescent tube lamps (compact with electronic ballast), Electronic transformers: Max load. 300W - 230VAC / 150W - 110VAC
2. Ferromagnetic transformers: Max. load: 1000w - 230vac / 500w - 110vac. 1000W - 230VAC / 500W - 110VAC
3. Conventional incandescent and halogen light sources: Max. load: 1000w - 230vac / 500w - 110vac 3. 1000W - 230VAC / 500W - 110VAC
Compatible with Tridonic Sotware. App for users to control their individual luminaires via wifi network.
Main features of DALI relay module.
- DALI relay module.
- Powered by the DALI bus, no additional power supply required.
- 1 DALI address can be assigned by the DALI master controller.
- Control of a standard contactor.
- Compact relay module for controlling a standard contactor via DALI.
- In this way, loads that do not have a DALI input can be integrated into the DALI circuit.
- Loads can be switched on and off via DALI.
- Mini size, easy to install in a standard wall box.
- Degree of protection: IP20.
