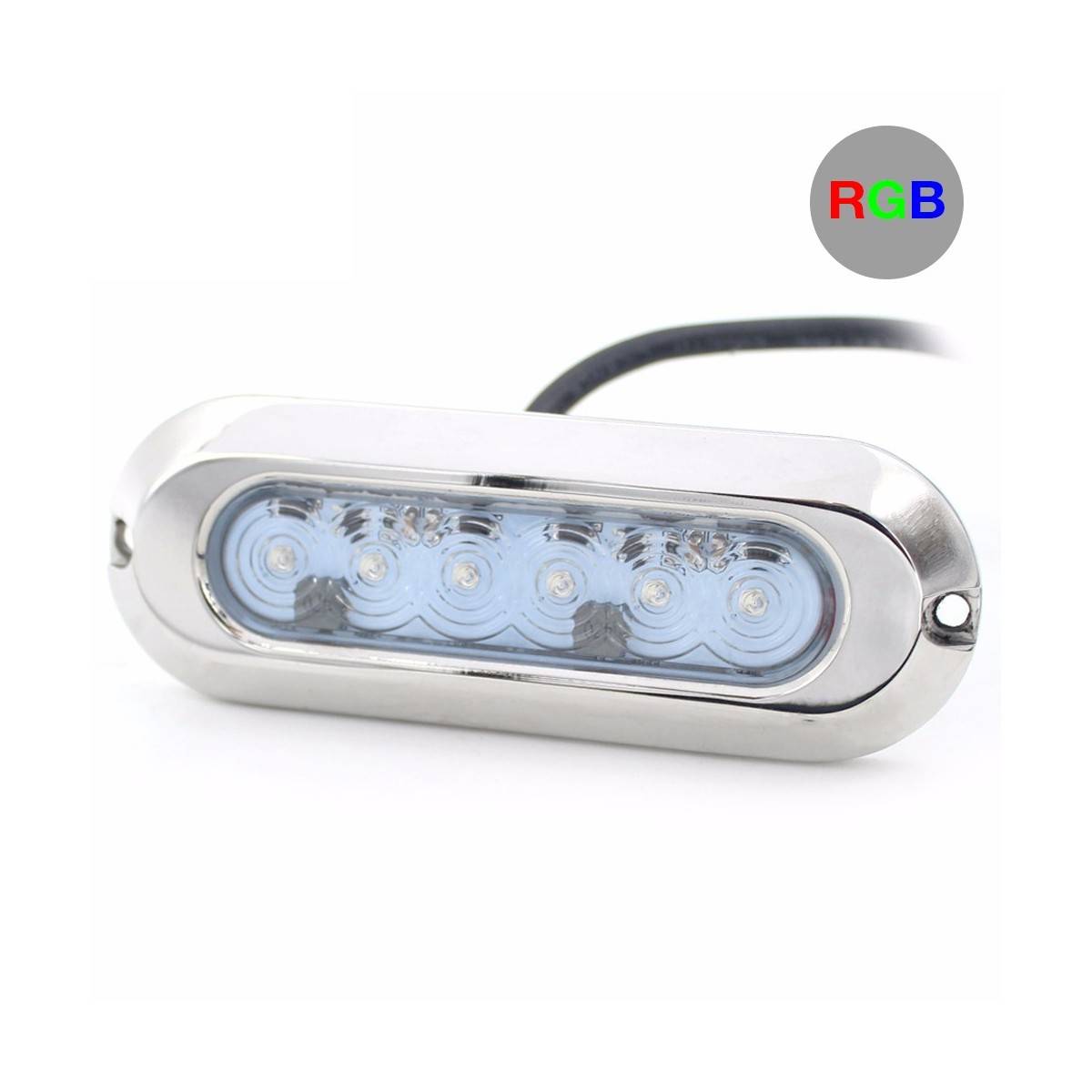

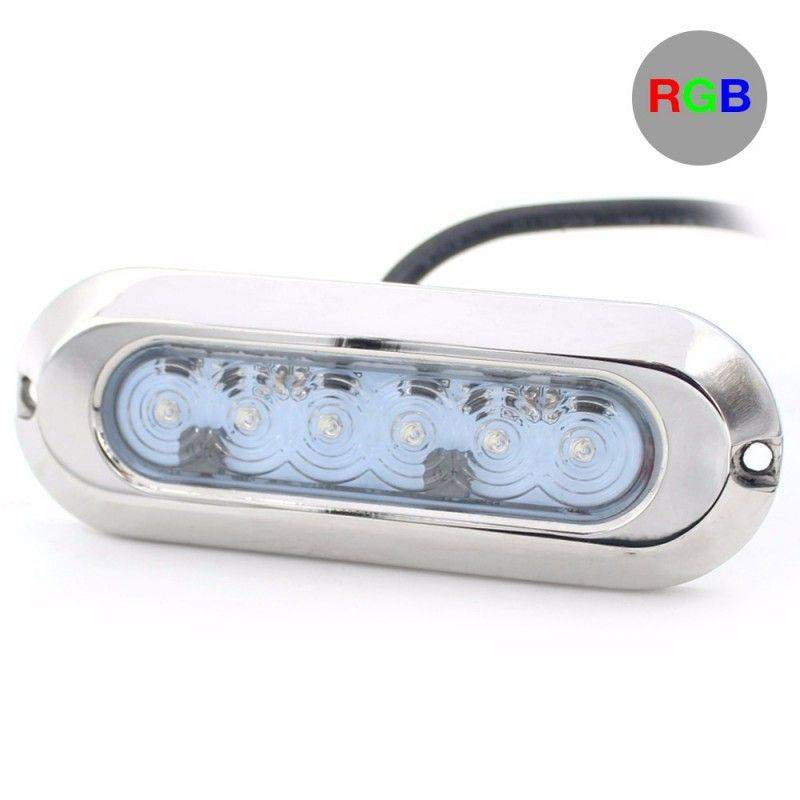

SLIM 30W 12V 316L stainless steel IP68 RGB LED surface mounted submersible light
SLIM 30W 12V 316L stainless steel IP68 RGB LED submersible surface light
SLIM 30W 12V 316L stainless steel IP68 RGB LED submersible surface light
SLIM 30W 12V 316L stainless steel IP68 RGB LED surface mounted submersible light
SLIM 30W 12V 316L stainless steel IP68 RGB LED submersible surface light
SLIM 30W 12V 316L stainless steel IP68 RGB LED surface mounted submersible light

SLIM 30W 12V 316L stainless steel IP68 RGB LED submersible surface light 30W 12V

SKU:B2176
Has superado el límite de unidades
In stock 39 units
Data sheet

Underwater RGB LED RGB surfacelight for boats, pleasure yachts, motorboats and pleasure craft. It is installed directly on the hull of the boat, submerged below the waterline. Manufactured in stainless steel housing with AISI 316L marono treatment and 12VDC input voltage. The RGB lamp is controlled by a bluetooth controller (not included) and smartphone app.

  • 120W
  • 12VDC
  • RGB
  • 278-1410LM
  • 316L stainless steel
  • IP68
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Submersible RGB LED light for boats 30W IP68

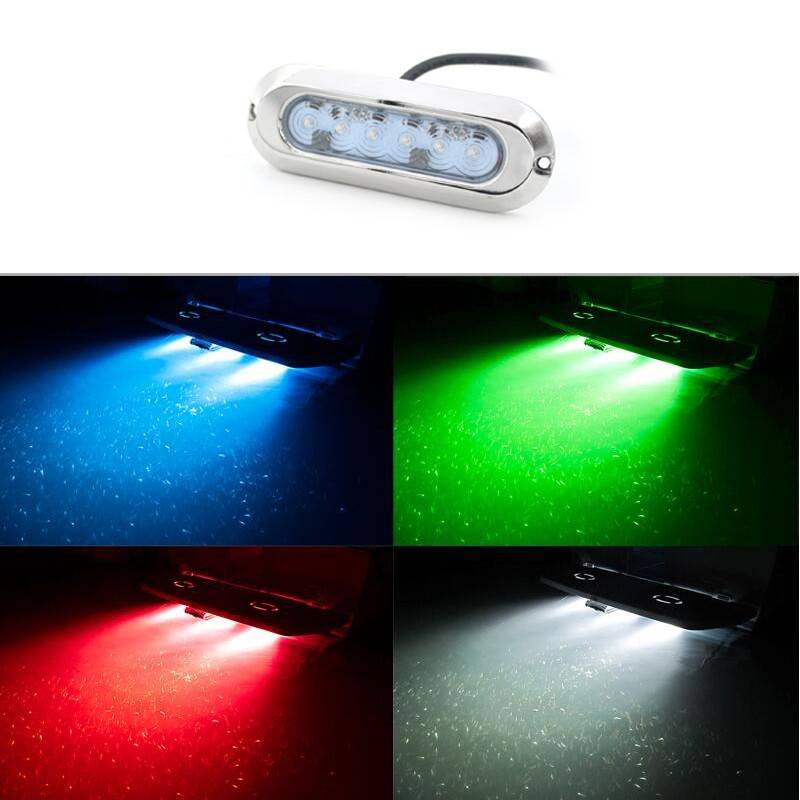

RGB LED light for surface mounting on boats, yachts, motorboats and pleasure craft, directly on the hull and submerged below the waterline. Also suitable for use in swimming pools, hot tubs, ponds, etc. Made of high quality stainless steel with AISI 316L marine treatment, especially to prevent corrosion by sea salinity and chlorine. The RGB LED lamp for boats consists of CREE LED chips with high brightness and luminosity. It achieves more than 16 million color combinations with a luminous flux from 278 to 1410 lumens, depending on the chosen color, with a maximum consumption of 30W.

The submersible RGB LED lamp works at an input voltage of 12VDC, so those installations with higher voltage power supply will require a voltage converter. Product not valid for direct connection to 24VDC or 230VAC.

Mounting and installation of LED RGB surface mounted boat light

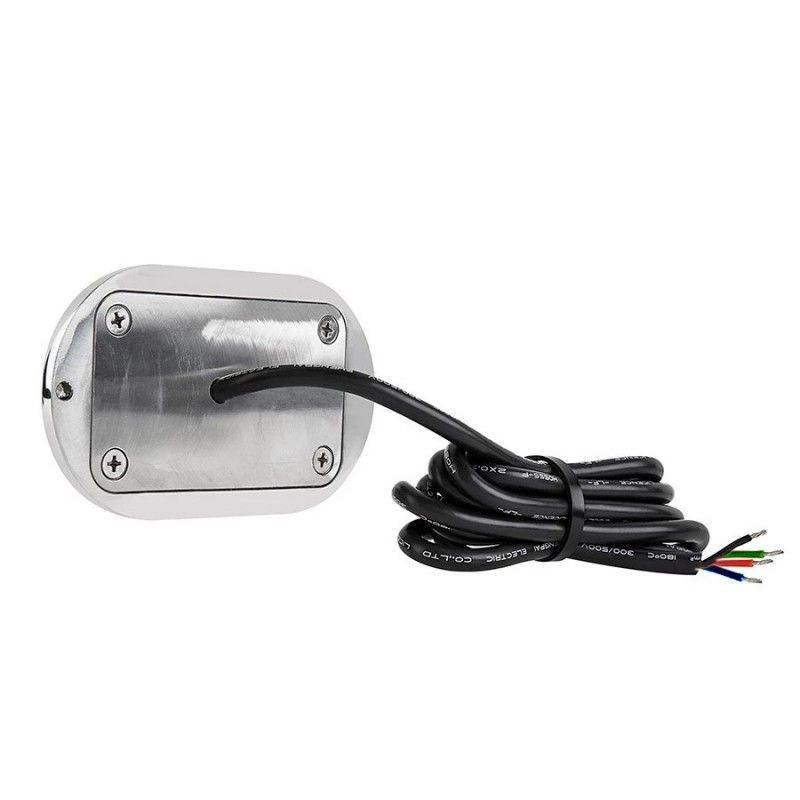

The submersible LED RGB SLIM surface mounted light requires constant submersion during function and operation. Mounting requires drilling the hull below the waterline, and screwing the lamp directly into the hull. Proper watertightness of the assembly is essential, so use appropriate products to ensure watertightness, such as polyurethane foams like SELLAFLEX. We recommend that you go to your trusted professional technician for advice and supervision of the assembly.

Technical characteristics of the RGB SLIM submersible LED RGB lamp

  • Input voltage: 12VDC
  • Power rating: 23.6W
  • CREE RGB LED chip
  • Luminous flux from 278 to 1410 lumens
  • Weight: 370 grams
  • Housing: AISI 316L 18/8 stainless steel

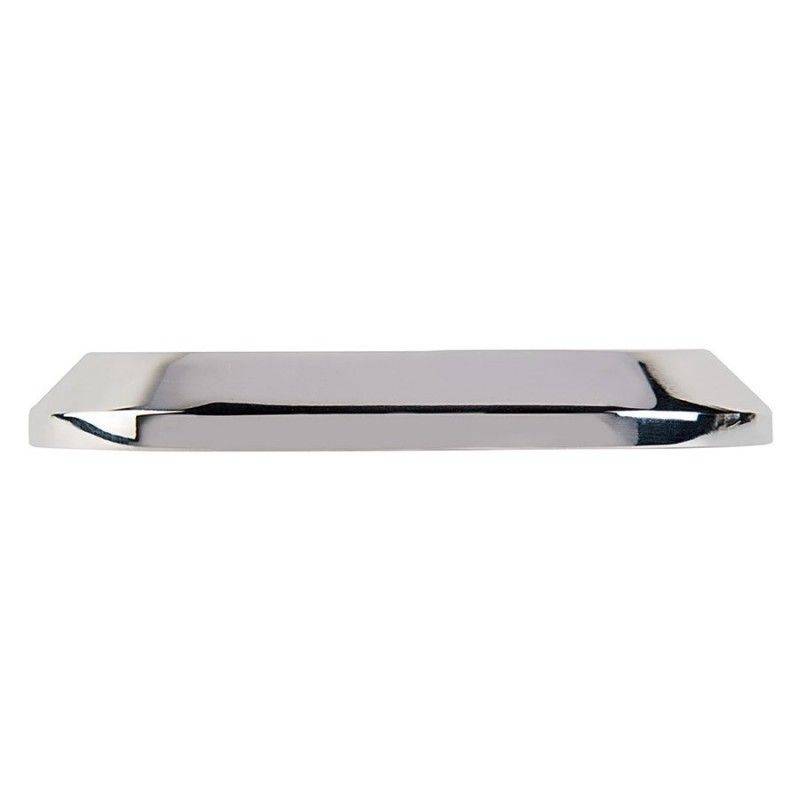

  • Dimensions: 123x44x13mm
  • Optics angle: 180º
  • IP68 rating

lámpara sumergible rgb para barcos

Applications and uses of submersible LED lights

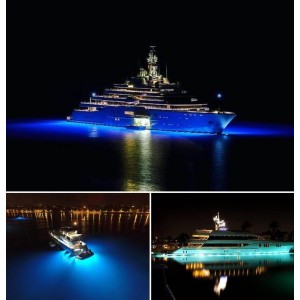

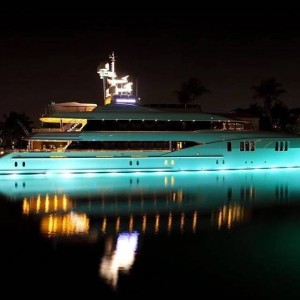

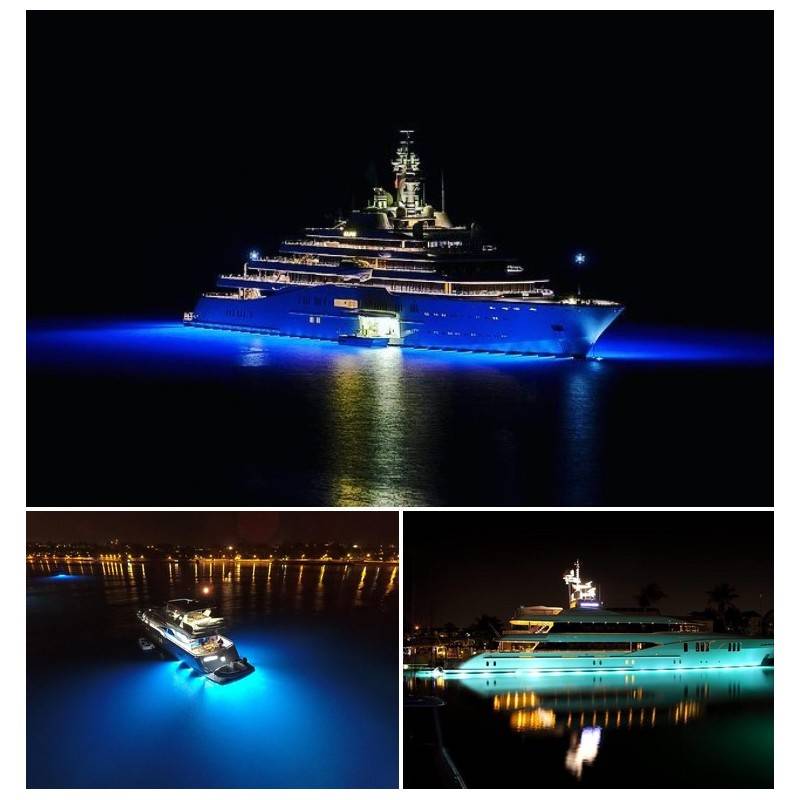

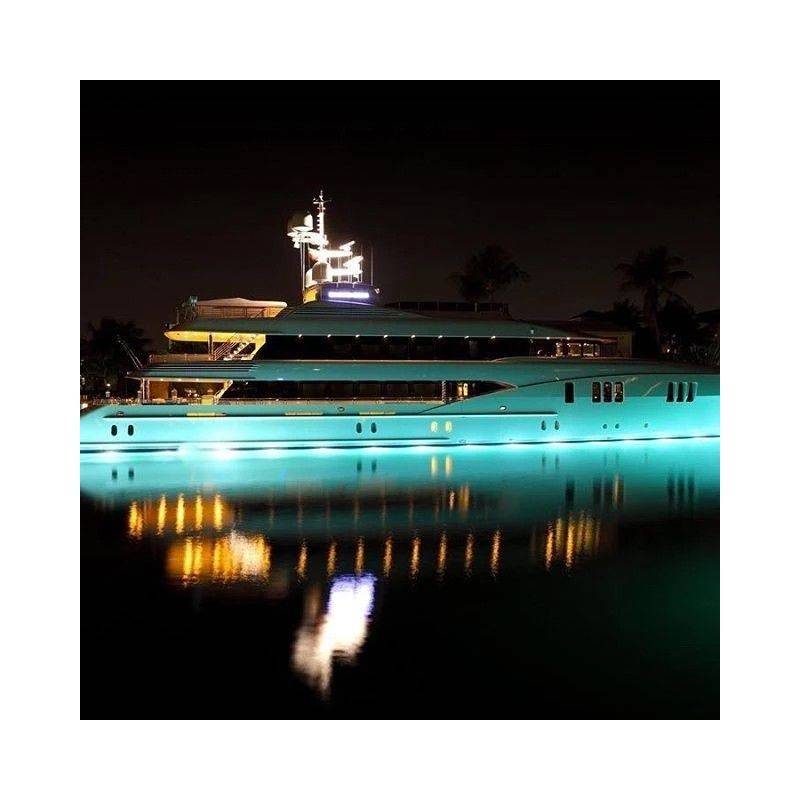

Highlight your boat, ship, yacht or pleasure craft with LED lights that are installed below the waterline. You can also use them in swimming pools, hot tubs, ponds and other water features. Remember that the lamp must work submerged underwater at all times.

luces led barco rgb

Nominal Voltage (V)
12V-DC
Power (W)
30
Lumens (Lm)
278-1410
Beam angle (º)
180
Lifetime (h)
25000
IP
IP68
Dimensions (mm) Lxlxh
123x44x13
Hue
RGB
Dimmable
No
Weight (g)
370
Material
Stainless steel AISI 316L
Use Outdoor
Yes
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Can you let me know when you have stock of these submersible LED lights?
R: Answer: For orders and availability please contact comercial@barcelonaled.com
P: Question: Can you confirm that this lamp has the white color?
R: Answer: These RGB models do not have a specific white channel, the white is obtained from the sum of the RGB color channels, the resulting white has some color dominance (it is not pure white).
P: Question: Can you inform me if this product needs a separate transformer?
R: Answer: This product works at 12vdc, it is for boats with 12vdc sources or batteries. It also needs a RGB controller to be able to change color (it does not work with 230vAC mains voltage).
P: Question: Hello,I am looking for a rectangular led spotlight to put in a pool with salt chlorinator of 11x5. I do not know if this one could serve me or maybe 120W are too many. It has to be rectangular to correct a measurement error in the installation of the macaroni. Thank you.
R: Answer: Our models for swimming pools are round PAR56 for recessed and surface. This model is for boat waterline. We do not have data for use in swimming pools.
