Smart LED Strip RGB IC 12V/DC IP65 LED Strip Outdoor
Smart LED strips
RGB LED Strips
RGB IC Smart LED Strip
LED strips

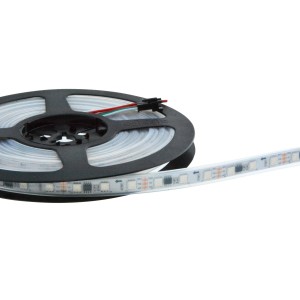

Smart LED Strip IC RGB 12V DC - 14,4 W/m - IP65 - 60 LED/m - Width 10mm - 5 meters

SKU:B1575RGB
Has superado el límite de unidades
In stock 217 unidades
Data sheet

The outdoor intelligent RGB LED strip (IC) is designed to operate with 12V DC voltage. Each LED chip has its own SMD5050 light source and integrated controller (IC), allowing individual control of each LED in the strip. In this way, the WS2812B LED strip can be programmed to create complex light patterns and custom animation effects.

In addition, the strip can be extended and cut every 50 mm, giving it great versatility.

It is IP65 rated, making it suitable for outdoor use.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The outdoor LED strip light allows you to control each LED individually. It is ideal for decoration of hotels, bars, all kinds of events, or as a replacement for traditional neon lights.

The IC chip used in this strip is WS2812B, with low power consumption and high efficiency, which enables intelligent RGB lighting control.

With a beam opening angle of 120° and a voltage of 12V, the strip features 300 high quality integrated SMD 5050 RGB RGB SMD LED lights.

The individual control of each chip offers multiple LED lighting possibilities, allowing you to create eye-catching visual effects. In addition, these RGB IC RGB LED strips are easy to program and work well with many types of controllers to create the desired effect every time.

It has a silicone outer layer that gives it an IP65 protection rating, and therefore can be used outdoors.

It is possible to cut the strip every 50mm (every 3 chips), which allows great versatility for different applications.

The wires of the LED strip are made of high quality copper and have excellent conductivity, which ensures stable and uniform illumination. The outer layer of the strip is made of PVC, which makes it eco-friendly and durable, and provides it with a very long service life.

Main product features:

  • Voltage: 12V DC
  • Power: 72W (14.4W/m)
  • Width: 10mm
  • Length: 5m
  • IP65: outdoor use
  • SMD5050 RGB
  • 60ch/m
  • WS2812B IC
  • 8 bits green, red and blue shifted to 24 bit color
  • Cut-off distance: 50mm

Nominal Voltage (V)
12V-DC
Power (W)
72
Beam angle (º)
120
IP
IP65
Hue
RGB
Sensor
No
Dimmable
Yes
Driver
Internal
Track width (mm)
10
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Adhesive
3M
Frequency of use
Intensive
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Hello
I will need to install about 25 meters of RGB Smart LED Strip IC 12V/DC 5 Meters IP65
Part number:B1575RGB
How many 5 meters strips could I connect together at most for a single DMX Decoder DMX-SPI for LED Strips Reference:B1568
And what transformer should I put in it?
Or would I have to put a transformer and a controller in each 5 meter strip?
Thanks for everything.
R: Answer: If you need to power the strip every 5 mts at 12vdc. The decoder is 1024 pixels as SPI signal (integrated programs).
P: Question: Hi, I want to insert a led strip B1575RGB in a silicone sleeve BPERFLEX10X18 create neon effect, my question is whether it is compatible and can be introduced to be already protected by a transparent layer. In the description of the silicone sleeve it says that it supports strips of 8 to 10mm. In this case the strip that I have chosen measures 10 mm, but my doubt is if it will enter through the hole of the cover as the led strip is already covered by an insulator. I hope my question is understood. Thank you very much.
R: Answer: The silicone sleeves are for strips with IP20 without sleeve, this model of iC strip with sleeve cannot be used. In addition for long runs it is complicated to enter the strip.
P: Question: Good morning,
I want to install a led strip in the shower. And I would like it to be RGB. I have seen this product (Intelligent LED Strip RGB IC 12V/DC 5 Meters IP65
Reference:B1575RGB) and I would like to know what elements I would have to buy for its installation. Does it have a transformer? does it go by infrared? The electrician has left me pre-installed wires for connection, but tells me that to go in a shower could not carry any element that has to go to a socket.
Forgive my lack of knowledge on the subject. And thank you very much for your attention.
R: Answer: This model is not only RGB is for RGB motion sequences, you need a special controller ref B1485 to be able to link with mobile APP via bluetooth (program quantity of led, type of led, etc). You will need a 12vdc power supply according to the meters of strip.

You can not put equipment at 220vac as power supplies near the shower or non-isolated connections. Consult with the electrician
P: Question: Good afternoon,
First of all tell you that I am not an electrical professional. I am interested in acquiring a smart led strip, as I have seen that you can control the color of each chip. I need 20 meters to install them on a terrace.
I have seen that this model (Intelligent LED Strip RGB IC 12V/DC 5 Meters IP65)
has outdoor protection and can be spliced several strips, but being 12V would need a power converter to 220, and also a controller to program the color of the chips.
-How are the strips spliced? With a special piece? Do they have to be soldered?
-Do I need a power converter for each strip or only one for the 4 strips that I need to reach the 20 m? (I have the possibility of making 2 lights of 10 m each 1).
-What controller do I need to program the color of the chips? Can I do it through an iPhone?
I see that it goes with a 3M self-adhesive tape but being the rough wall I think I would need a kind of staples to install it mechanically, is there any type of staples compatible with this model?
I would appreciate if you could send me prices of everything needed for the installation of 20 m of rgb led strips.
Thank you very much for your attention,
Sincerely
Jordi
R: Answer: This strip model is controllable every 3 led chips.
A 12V 72W source is needed every 5 meters.
It is connected one after another with the connector, if it goes outdoors will have to isolate the connection.
You need SPI controller for example ref. B1480.
Maybe some staples of another model ref. B1691C-2.
For prices, order you can contact comercial@barcelonaled.com
You need to have some knowledge for special control strips, maybe a RGB strip is a better option or contact an installer.
P: Question: Good afternoon:
I need to put led rgb light to a bookcase. It has 64 individual holes (8 rows x 8 columns) of 37 cm wide.
It is necessary to embed an aluminum profile cut to 37 cm and inside a section of 37 cm of led (or the fraction that corresponds to cut).
I would like you to give me reference of the most recommended strip, the specific profile (the profile should be the shallowest possible because the table dmf is 19 mm) and the lighting control system (to control the 8 horizontal rows is enough).
Thanks in advance
R: Answer: This IC strip model is for SPI digital control, if you only want to control the color you should see RGB models. The recessed profile BPERF27X11 may be useful for you.
