LED LINE 24V-DC 9.6W/m width 5mm single color IP20 5 meter roll
SKU:B1556BN
€8.49
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: sales@barcelonaled.com

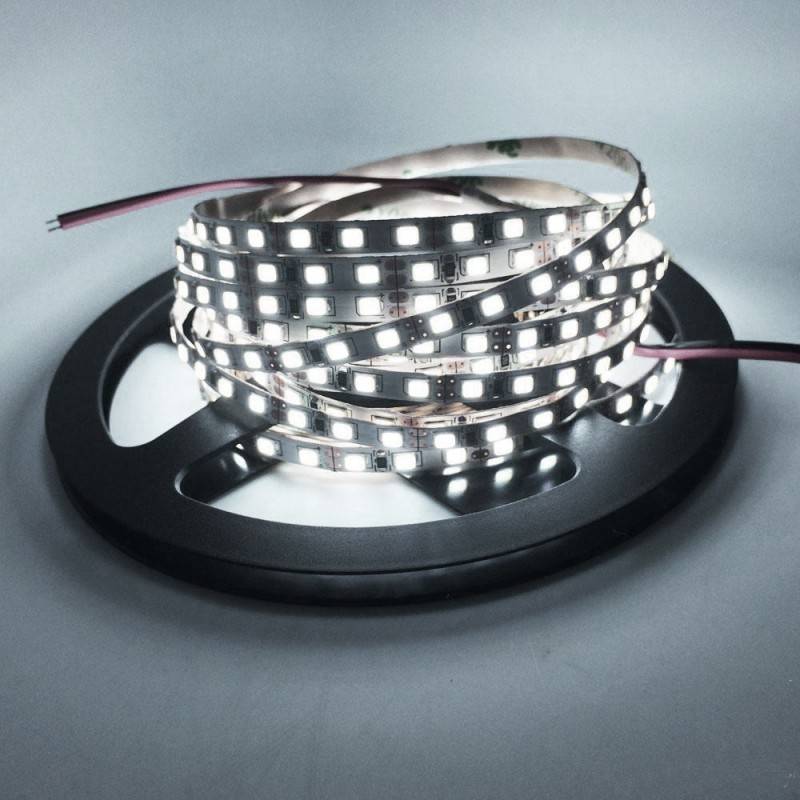

5mm wide PCB LED Strip at 24V-DC 9.6W/m, 600 SMD2835 chips
Highly flexible LED strip for installation to suit your needs.
Features of 24V LED strip:
- Self-adhesive (3M on the back).
- High brightness and luminosity.
- Power supply required (sold separately).
- Cutting distance of 50mm.

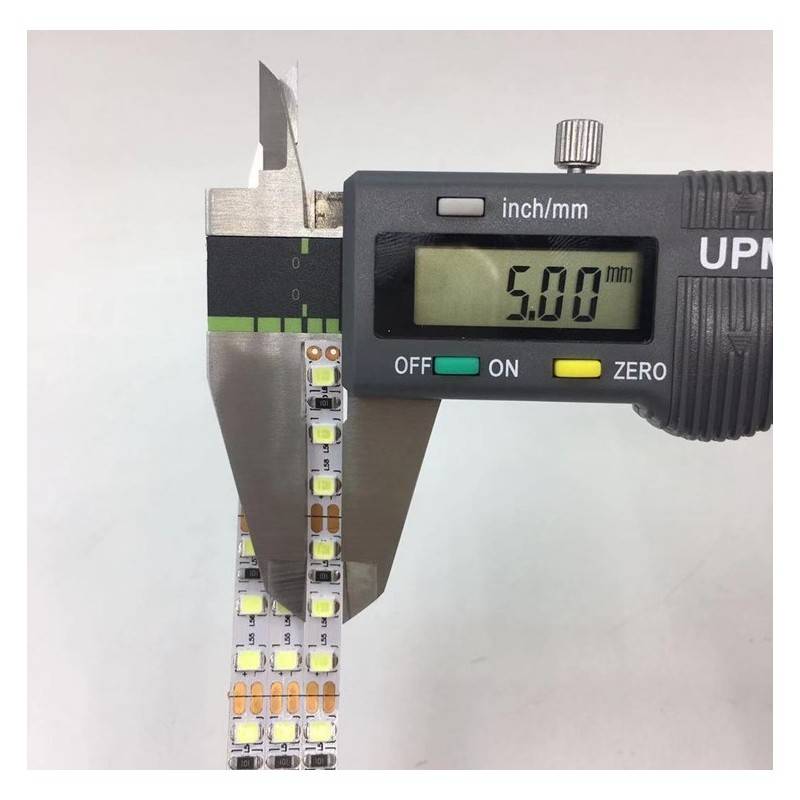

- Strip width: 5 mm
Recommended use of aluminum profile 8x12 for surface / 13x12 for recessed mounting.
2018-09-13
Nominal Voltage (V)
24V-DC
Power (W)
48W
Power/m (W/m)
9.6
Kelvin (K)
3000
4000
6000
4000
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
5000x5
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
CRI
80-85
Dimmable
Yes
No. of chips/metre
120
Track width (mm)
5
Cutting distance (mm)
50
Use Outdoor
No
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: |
Good morning, I have two questions: Can switching power supply 24V 150W Ref:B1566-150 power 4 1 meter pieces of this strip in parallel? can the Hippo single color SMD connector for LED strip PCB 5mm 2 pin 24 V max be used with this strip? Thanks |
|---|
| R: Answer: | Good morning Franco, Yes, the switching power supply 24V 150W Ref: B1566-150 can power 4 1-meter pieces of this strip in parallel. Yes, the Hippo single color SMD connector for LED strip PCB 5mm 2 pin 24V max is compatible with this strip. Kind regards, The Barcelona LED team Barcelona LED: Jhosimar| 02/12/2024 |
|---|
| P: Question: | Can the luminous intensity be regulated? |
|---|
| R: Answer: | All 12vdc or 24vdc strips are dimmable with the appropriate device. |
|---|
| P: Question: |
Good morning, Can you tell me which power supply and which connectors fit the led strip Ref. B1556BF? |
|---|
| R: Answer: | For the total of the strip 5mts, a 24v 60w power supply ref. B1566-60. We do not have quick connector for 5mm strips. |
|---|
| P: Question: | How many lumens does the 24v 120 led/m 12w/m 4000k led strip give? |
|---|
| R: Answer: | The 5mm led strip has an efficiency of about 124 lm/w, its luminous flux has a value of about 1500 lumens per meter. Please contact comercial@barcelonaled.com to request a test report. |
|---|
