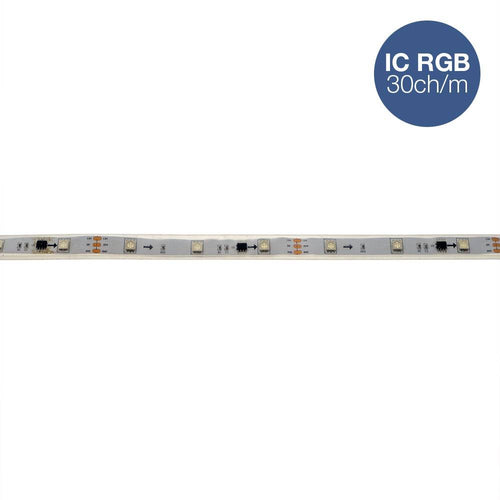

Intelligent LED Strip IC RGB - 7.2 W/m - Width 10mm - IP67 - 5 meters

SKU:B1544-30
Has superado el límite de unidades
In stock 2 units
Data sheet

RGB digital LED strip IC RGB PCB width 10mm (width with silicone sleeve 12mm), fully programmable with WS2811 control chip every 3 LEDs, for creating custom lighting effects. Requires digital or DMX controller.

  • Digital RGB IC
  • 12VDC
  • 7.2W/m
  • 30 chips/meter
  • IP67
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Programmable RGB 12V RGB IC LED Strip 7.2W/meter

The RGB digital IC LED strip allows the creation of lighting effects and programs through a programmable controller. It includes SMD5050 RGB LED chip and each 3 LEDs has a WS2811 control chip, so color effects can be programmed for each group of 3 LEDs.

The LED strip IC consists of a 10mm wide PCB, inside a transparent silicone sleeve that turns the LED strip into an IP67 rated luminaire, suitable for outdoor installations.

The PCB can be cut every 10cm. In this way, it is possible to make custom assemblies and cuts according to the needs, and to make the necessary splices. For this LED strip, we recommend that splices are always made by soldering. It is very important that the strip is well protected and not subjected to extreme bending, stepping or bending, as this may cause the failure of the control chip and result in groups of LEDs off.

Usage and Applications of RGB IC LED Strip IC Strip

IC LED strip is commonly used in bars, discos, restaurants, music clubs and concert halls, among others. The effects can be controlled by a basic controller with remote control, with more advanced controls via mobile app, or by DMX controllers. Our technical sales department will be able to advise you on the methods of use and control.

Nominal Voltage (V)
12V-DC
Power/m (W/m)
7,2
IP
IP67
Hue
RGB
LED Type
RGB IC WS2812b
No. of chips/metre
30
Track width (mm)
10
Use Outdoor
Yes
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Good afternoon, I am looking for 30m of submersible RGB led strip to place it on the edge of a pool. This 5m digital LED strip can be "spliced" to get the 30m I need? Do you have any other better solution? Any advice?
Thanks, I look forward to hearing from you. Best regards.
R: Answer: This model of strip can be connected with 30 mts (depending on the controller) and must be connected to 12Vdc every 5 meters of strip.
(we do not recommend it for swimming pool installations, nor to keep submerged any model of strip).
P: Question: What source and controller is needed for this strip?
R: Answer: The necessary accessories of the ic led strip, depend on the amount of meters that you want to mount, for this 5mts coil you need a 12v source of minimum 36W and a controller for intelligent strips, example B1480 or B1568.
P: Question: what controller do i need for this led strip?
R: Answer: You can control the LED strip IC with a DMX controller.

Barcelona LED: Marc| 04/02/2020
