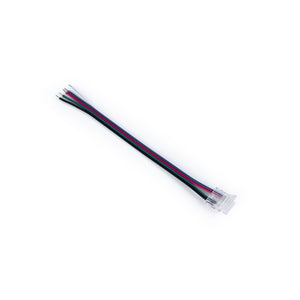

Hippo COB RGBW strip to controller connector - 12mm PCB - 5 pin - IP20 - Max 24V

Name: Hippo COB RGBW strip to controller connector - 12mm PCB - 5 pin - IP20 - Max 24V
Brand: Barcelona LED
SKU: MN20-X12C-5PW
Price: 6.0 EUR
Availability: InStock

SKU: MN20-X12C-5PW

6,00 PLN

IVA incluido

Register as a professional and get your discount

Hippo quick connector for LED strip to controller connection. Suitable for RGBW COB LED strips with 12mm PCB.

IP20 protection. Supports voltages between 3-24V.

238 in stock

Detailed Description

Hippo 5-pin connector strip to controller- 12mm PCB - IP20 - Max 24V

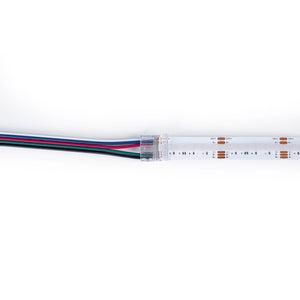

Hippo quick connector for connection of 12mm PCB LED COB strip to controller.

It supports 22AWG gauge cables.

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

It's valid for all COB EGBW LED strips with a 12mm wide PCB and a maximum of 24V.

Product features:

Input voltage: 3-24V DC
Maximum intensity: 3.5A
LED strip type: COB
PCB width: 12mm
LED strip width: 0.25~0.35mm
Number of pins: 5
Supported wire gauge: 22AWG (OD<1.70mm)
Wire length: 150mm
Dimensions: 16.5 x 13.7 x 4.3mm
Indoor use: IP20
