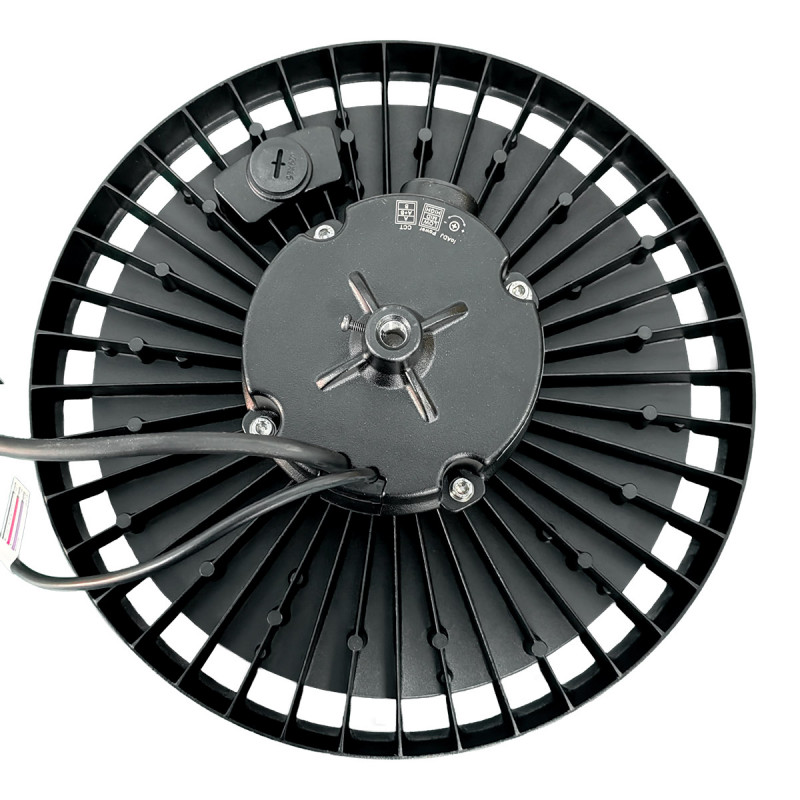

Industrial LED UFO High bay light - CCT - 150W - 170lm/W - Driver LIFUD - Angle selectable 110º/90º/70º - IP65

SKU:B8160-150W-3CCT
Has superado el límite de unidades
In stock 420 units
Data sheet

Industrial UFO LED 150W high efficiency: 170lm/W.

It stands out for its robust design and high quality. With Lifud driver, it has a switch for power regulation and allows to add a sensor.

It incorporates selectable opening angle (110º/90º/70º), adapting to different heights and lighting needs.

With CCT system for shade adjustment between neutral white (4000K) and cool white (5000K-5700K).

Warranty 10 years** **Warranty 10 years** **Warranty 10 years** **Warranty 10 years** **Warranty 10 years**

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  sales@barcelonaled.com

UFO LED industrial hood: Innovation and durability for demanding environments

This UFO LED industrial hood represents the state-of-the-art in lighting for industrial environments, combining high energy efficiency and robustness in a compact design.

  • Maximum efficiency: It offers a luminous efficiency of 170 lm/W, providing high quality lighting that ensures clarity and visual comfort in large spaces.

  • CCT system: By means of a switch it is possible to select the color temperature between neutral white (4000K) and cool white (5000K-5700K).

  • Integrated Lifud driver: The Lifud driver maximizes energy efficiency, but also includes protections against overheating and overvoltage, ensuring the safety and durability of the luminaire.

  • Dimming: Incorporates 0-10V input, allowing dimming and connection of a DALI gateway (not included, see related products).

  • Power adjustment: It has a switch incorporated in the driver that allows to adjust the power between 150W, 130W and 100W, according to the specific needs of the environment.

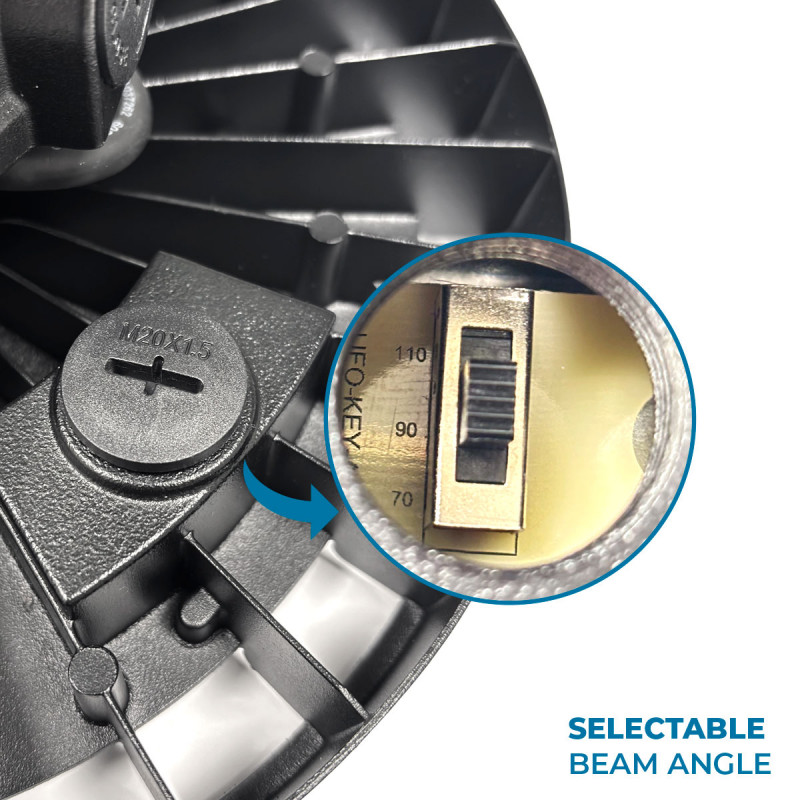

  • Selectable opening angle: By means of a switch it allows to choose between 110º, 90º or 70º; adapting the light distribution to different installation heights and space needs.

  • Supports motion sensor through ZHAGA socket: Com patible with motion sensors, allowing great energy savings (not included, see related products).

  • Robust and resistant design: With an IP65 rating, this hood is dust and water resistant, making it suitable for outdoor installations. In addition, its physical impact resistance (IK09) ensures that it can withstand harsh industrial conditions.

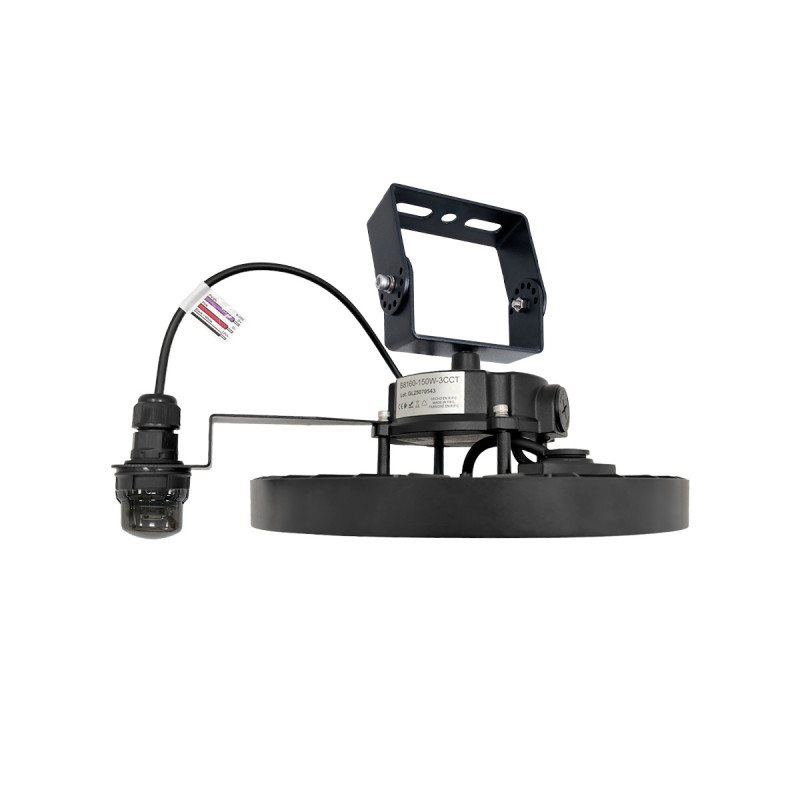

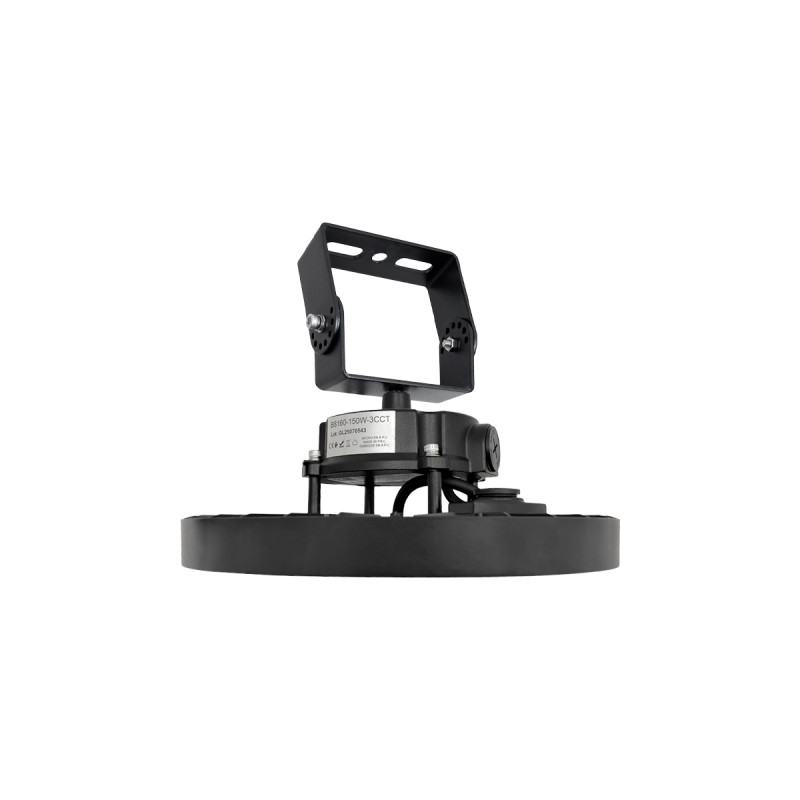

  • Additional options: Compatible with a swivel bracket for surface installation (not included, see related products).

Industrial LED hood applications

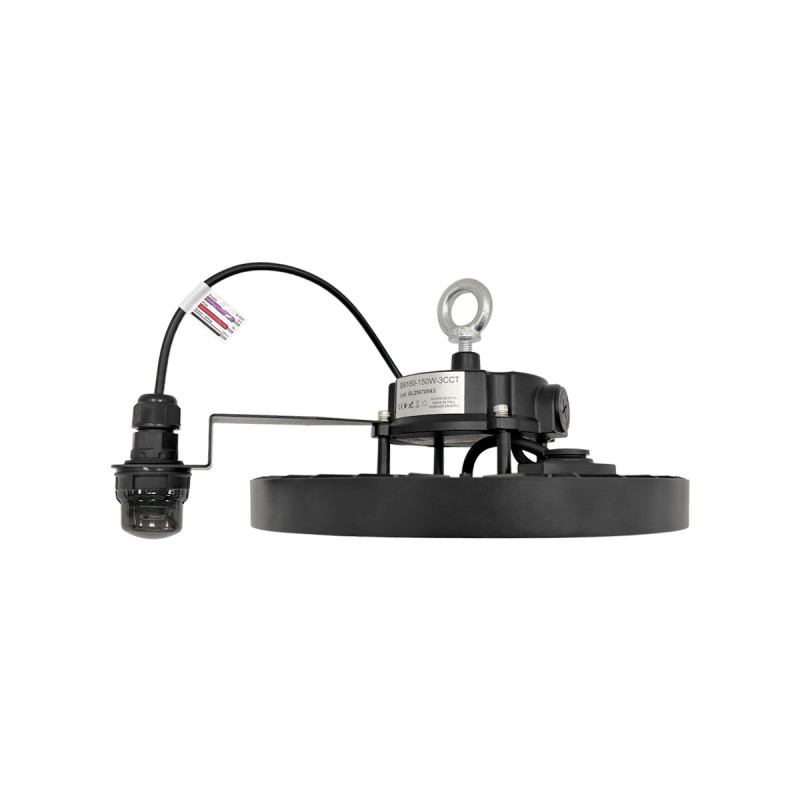

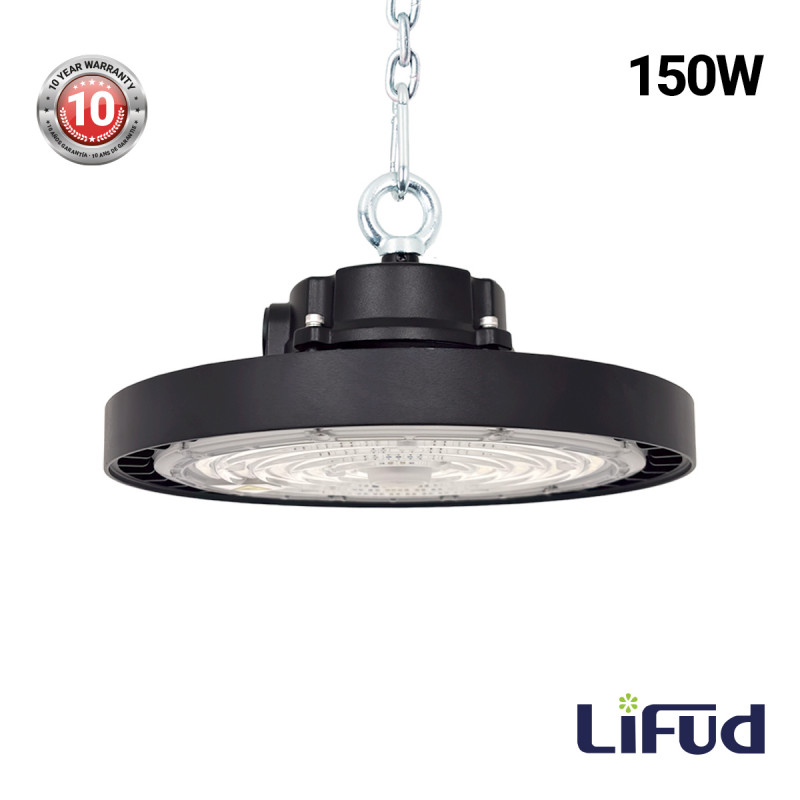

Thanks to its light weight, the hood can be easily hung from its hook on any ceiling. It is important not to hang it directly from the electrical cable and to check that the cable is not pulled tight.

This LED hood is the perfect choice for a variety of industrial environments. Some of the applications include:

  • Industrial buildings
  • Workshops
  • Factories
  • Warehouses
  • Parking lots
  • Logistics centers
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
150
Lumens (Lm)
25500
Kelvin (K)
4000
5000
5700
Beam angle (º)
70
90°
110
IP
IP65
Hue
CCT
Efficiency (Lm/w)
170
CRI
70-80
LED Type
SMD 2835
Driver
LIFUD
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
Yes
Certificates
CE
ROHS
Warranty
10 years
IK
09

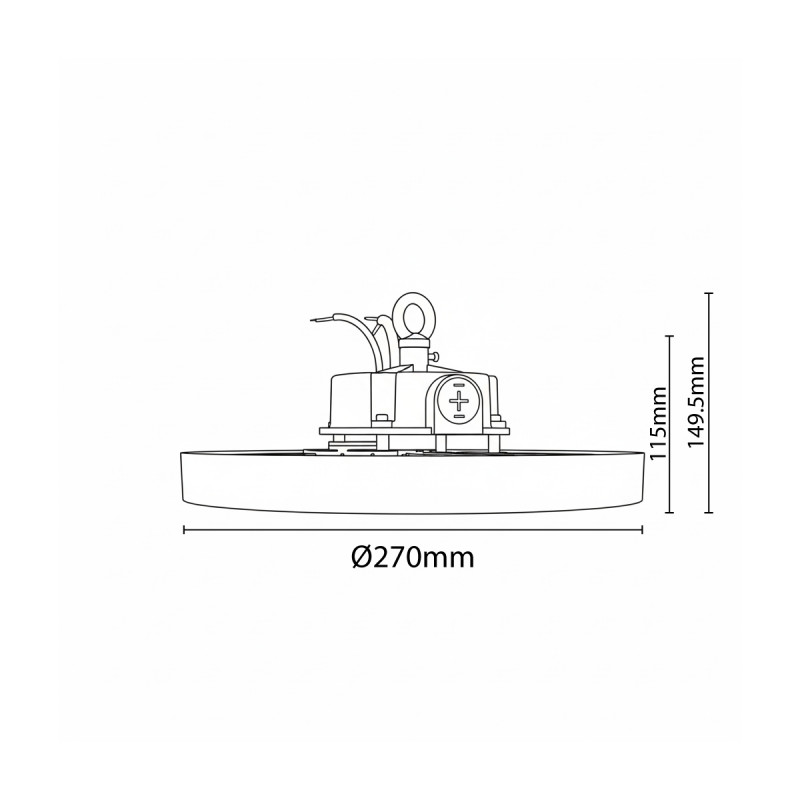

Width
Ø 270 mm
Height
149.5 mm
