Single-color touch dimmer for 4-zone LED lighting - SUNRICHER - DALI

4-zone DALI RGB RGB touch switch

The SR-2300TS-RGB touch switch is a tactile DALI controller that integrates a high-strength, ultra-sensitive tempered glass panel with a tactile color wheel design to provide smooth, precise and fast color tone adjustment and brightness adjustment functions for RGB LED lighting. The RGB controller complies with IEC 62386-102, IEC 62386-207, IEC 62386-209 and can be compatible with DALI products from other international corporations. The RGB system offers the following advantages:

• Adjustable color, different lighting tones in one.
• Fully customizable lighting.
• Multi-environments.
• Solution for frequent shade changes.

The DALI RGB controller can control up to 4 light zones with 1 saved scene for each zone. For DT6 version, each light zone can control 1 DALI group, allows to set initial DALI group number and DALI scene number.

Touch switch with high resistance tempered glass panel for smooth dimming without flickering. RGB color dimmer of RGB LED lights compliant with standard DALI protocol and compatible with various DALI devices.

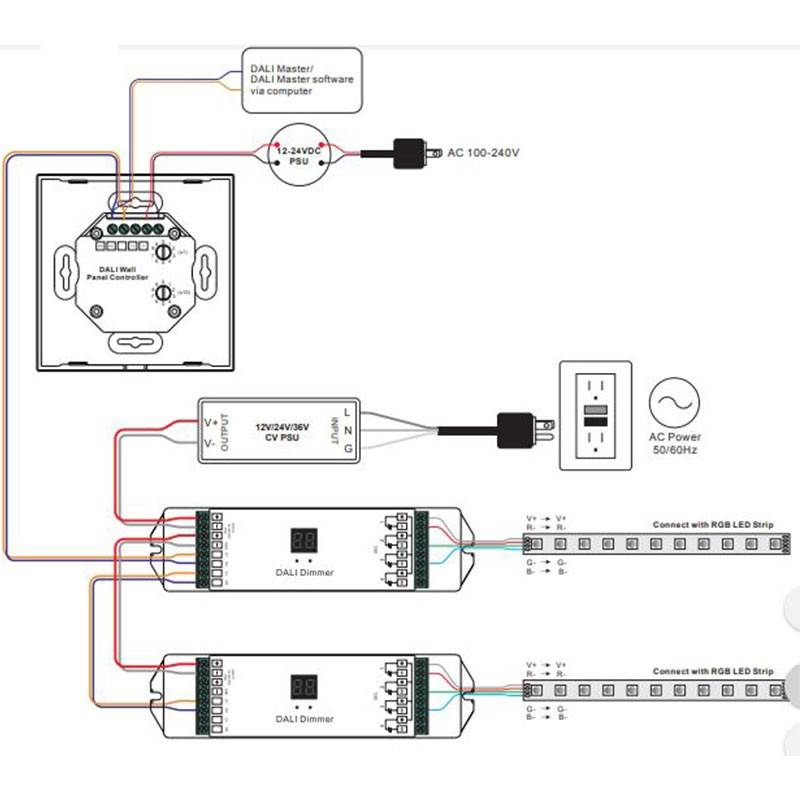

10 built-in color sequences are available. The DALI RGB controller can detect the DALI bus and multiple controllers can be installed on one DALI bus channel. Compatible with most of our DALI controllers that are available in constant current.

Controls up to 4 zones

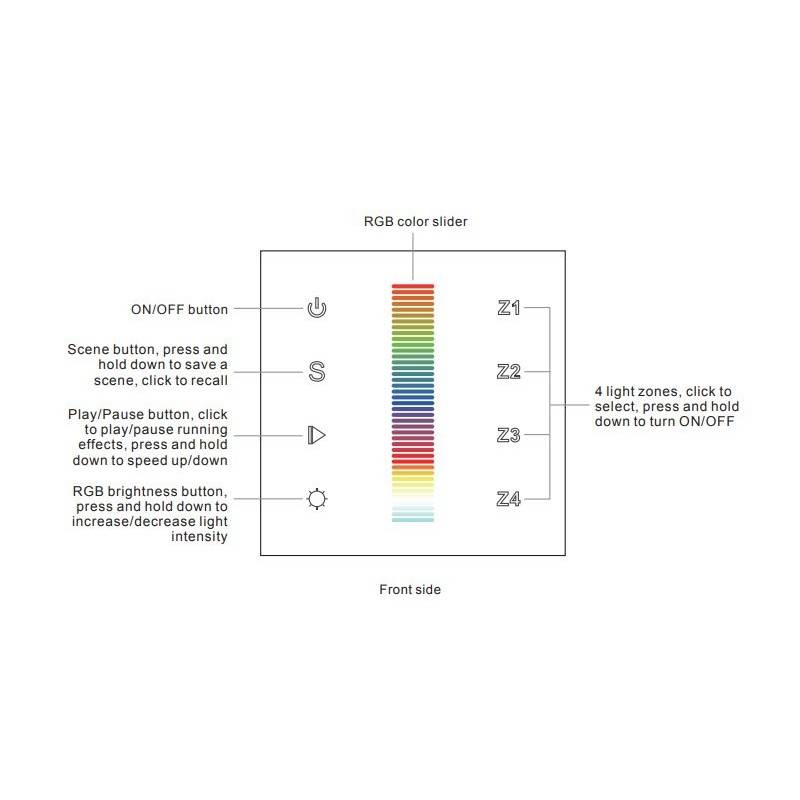

Touch control panel allows control of 4 zones with 2 customizable scenes, color dimming. European standard size switch offers easy installation, with instruction manual inside the box. Compatible with multiple 12-24V-DC devices.

Controls different types of LED lighting. Status indication of LED lights on panel.

DALI dimming and is specially designed for evenly dimmable LED lighting, with no dimming jumps, no flickering, and no noise.

Main features

• Touch sensitive.
• Glass interface.
• Compliant with DALI standard protocol IEC 62386-102, IEC 62386-207 and compliant with other international DALI product incorporations.
• There are 4 light zones available for switching, dimming and RGB color control, each zone can control 3 DALI addresses.
• Enable to set the starting DALI address number (0-63) for the 4 zones by rotary switches on the back.
• Enable to store 1 scene for each light zone.
• Incorporates 8 color sequences
• Compatible with
• DALI certified.
• TUV CE certified.

DT8 DALI Dual Color Touch Controller technical characteristics

• 12-24V-DC
• DALI signal.
• Dimensions: 86x86x41mm
• IP20
• Certifications: CE, RoHS, TUV.
• Two years warranty.
