4-zone DALI touch switch
The SR-200TS-DIM touch switch is a touch controlled dimmer switch with DALI output. It complies with the standard DALI protocol for switching and dimming 4 light zones. Each DALI device can install multiple dimmer switches.
Touch switch designed with heavy duty tempered glass panel to provide smooth dimming and switching functions without any flicker. LED dimmer that complies with standard DALI protocol and is compatible with various DALI devices.

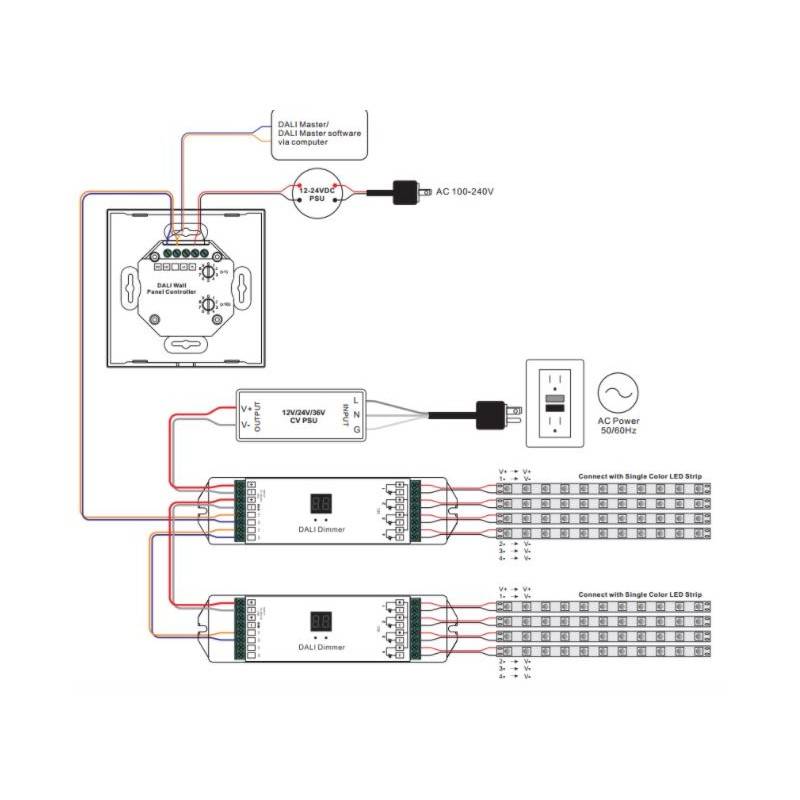

This touch switch is compatible with SRP-2305-50CC (1A); SR-2303BEA (4A); SR-2303SAC-HP (1A); SR-2400P.
Controls up to 4 zones

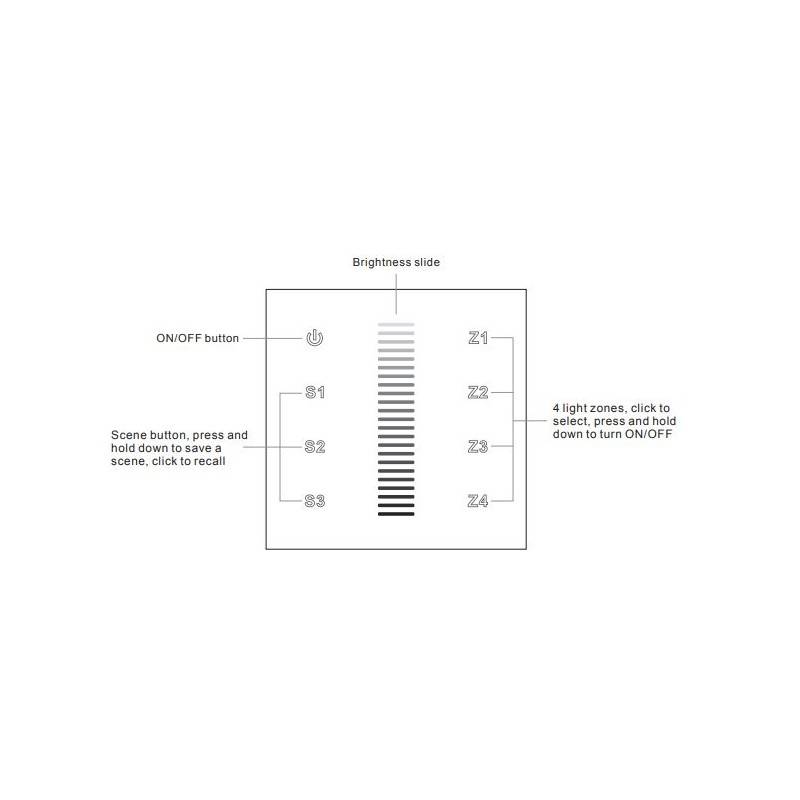

Switch allows control of up to 4 zones with 3 customizable scenes stored for each zone. European standard size switch offers easy installation. Compatible with multiple 12-24V-DC devices.
Controls different types of LED lighting. LED status indication on panel.
DALI dimming and is specially designed for evenly dimmable LED lighting, with no dimming jumps, no flickering, and no noise.
Main features
- Comply with IEC 62386-102, IEC 62386-207 DALI standard protocol.
- User-friendly touch interface operation design.
- Single channel DALI bus can install multiple dimming controllers.
- 12-45V-DC input.
- Up to 4 light zones for switching and dimming control. Each zone can control 1 DALI address.

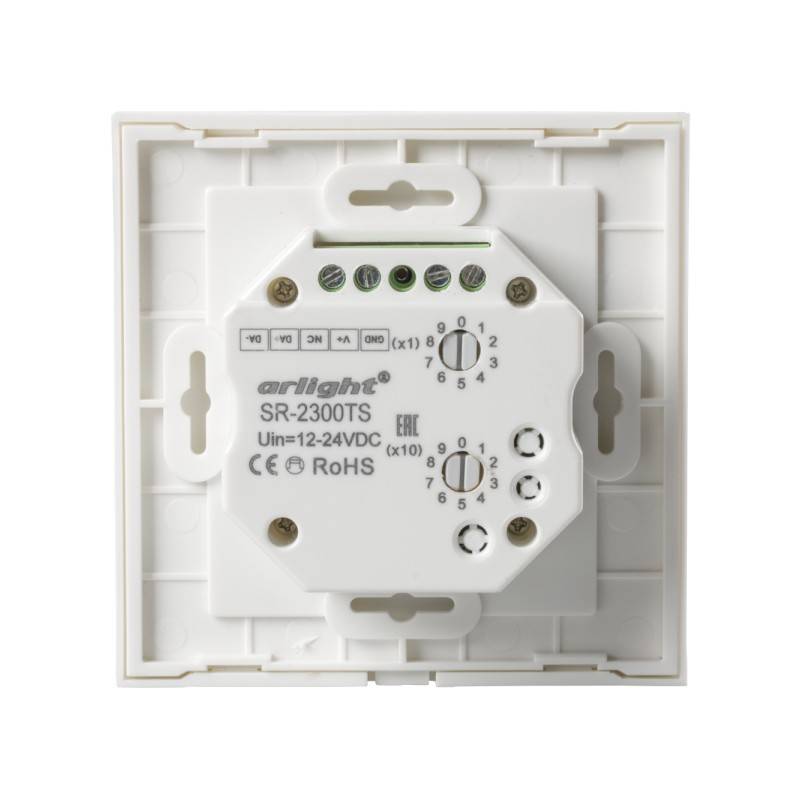

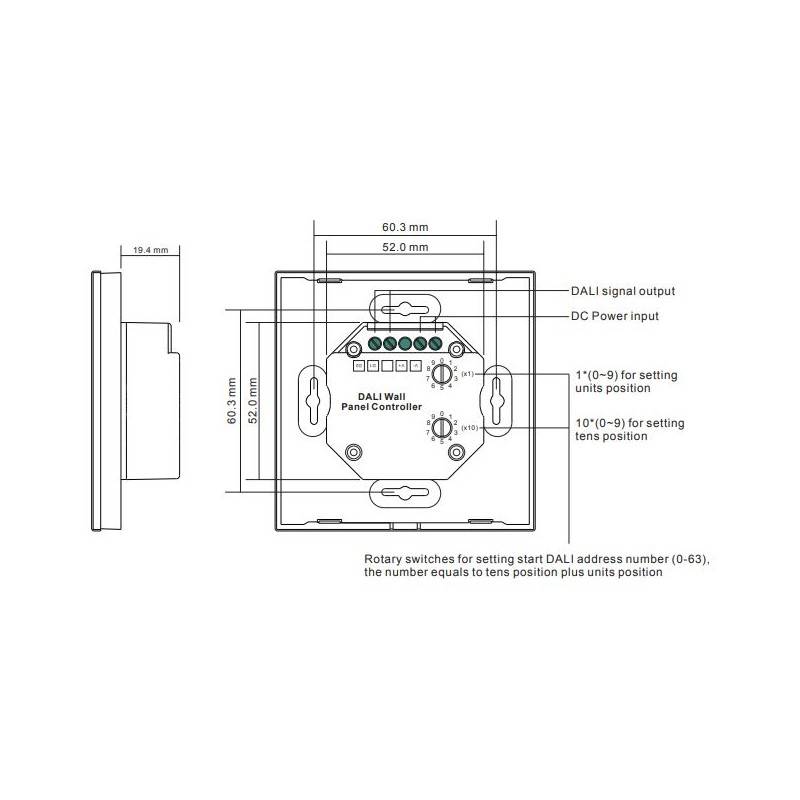

- Allows you to set the start DALI address and control designated DALI addresses via rotary switches on the back.
- Stores 3 scenes.

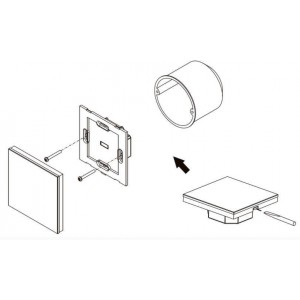

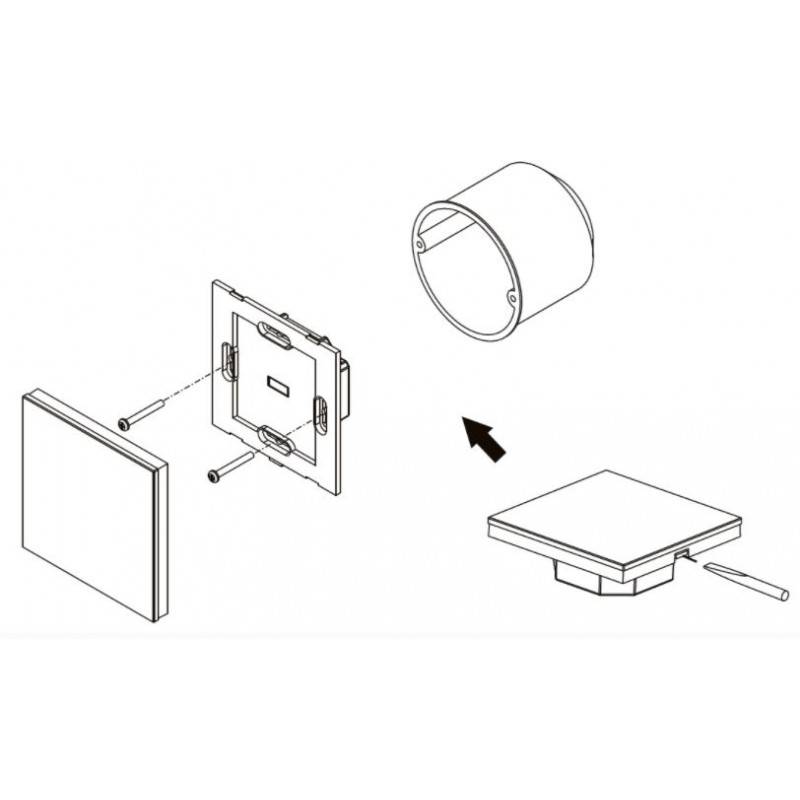

- Available in European standard size.
- Compatible with SR-2303BEA (4A); SR-2400P; SRP-2305-50CC (1A); SR-2303SAC-HP (1A).
- DALI certified.
- TUV CE certified.
Technical characteristics of DALI TOUCH DIMMER SWITCH
- 12-24V-DC
- Output: DALI signal.
- Power consumption: 200mA.

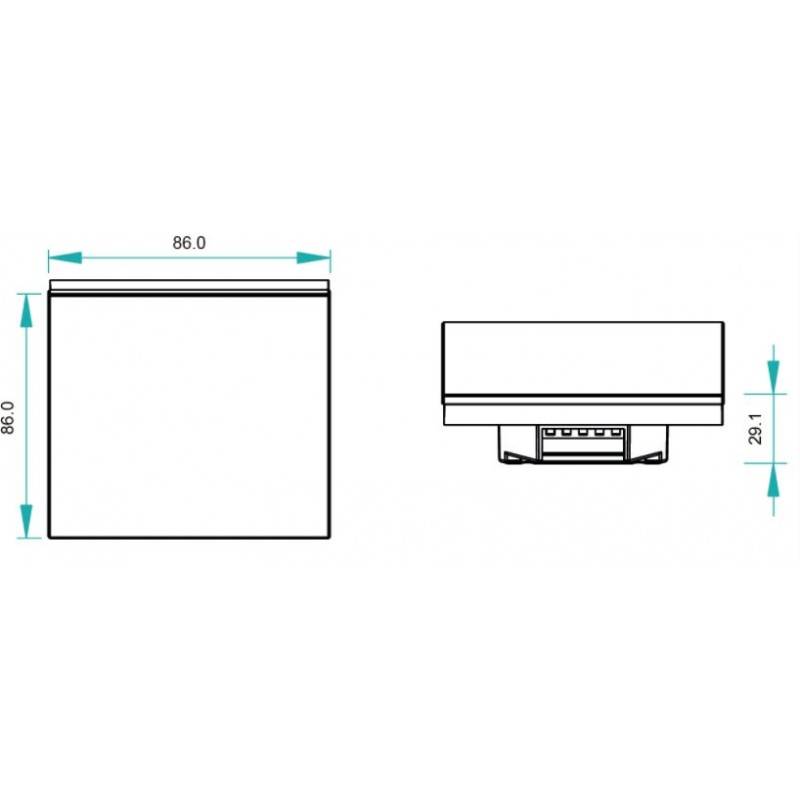

- Dimensions: 86x86x29.1mm
- IP20
- Certifications: CE, RoHS, TUV.
- Two-year warranty.
