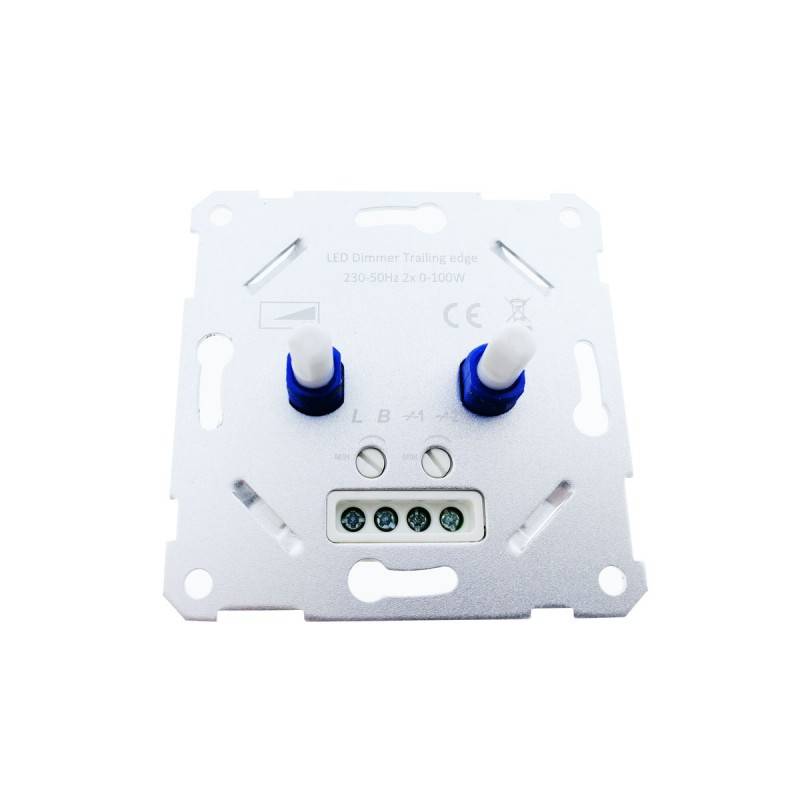

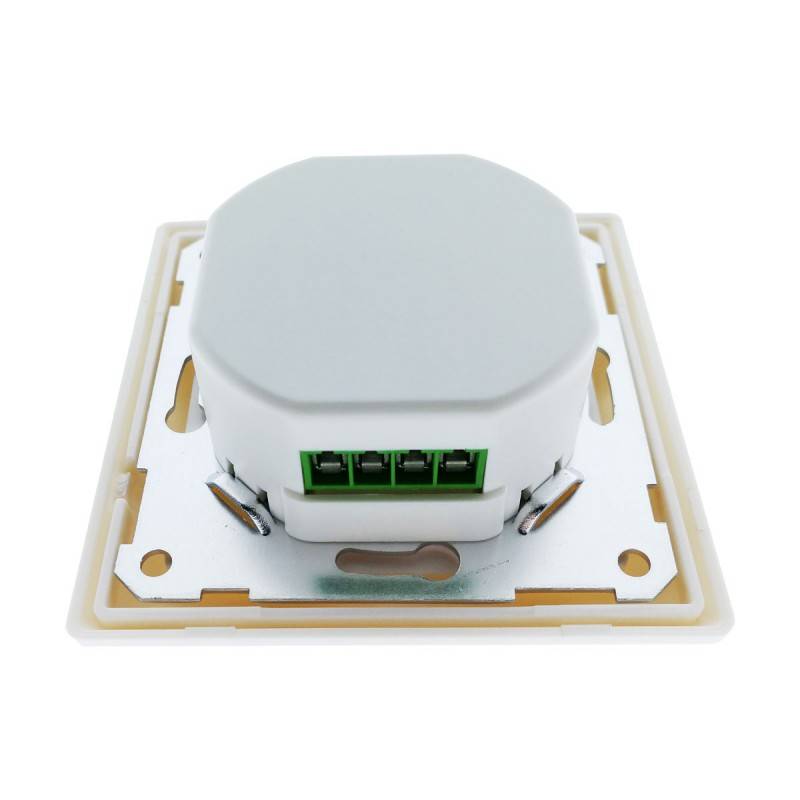

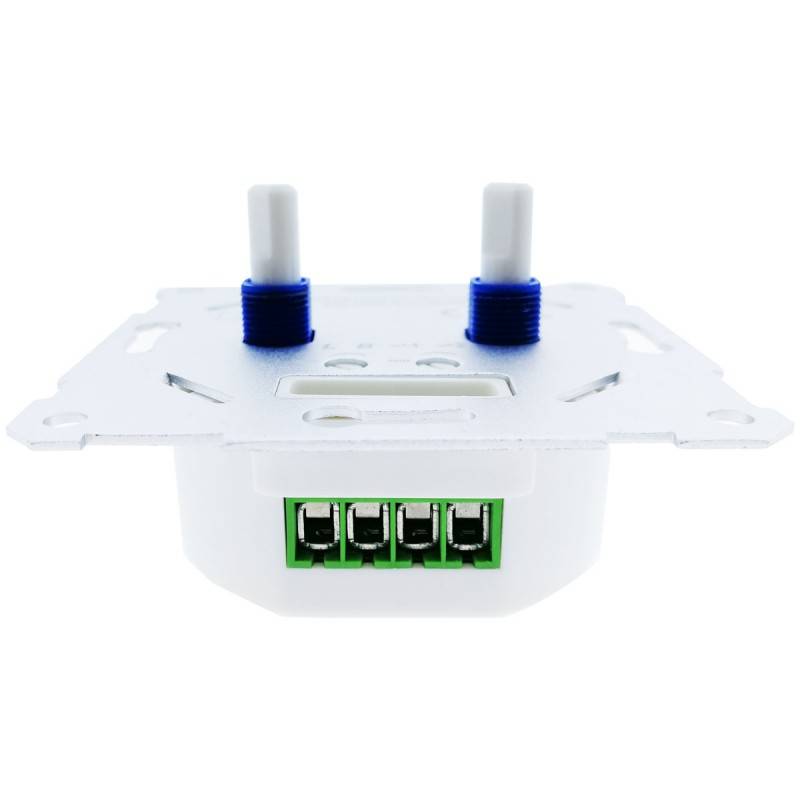

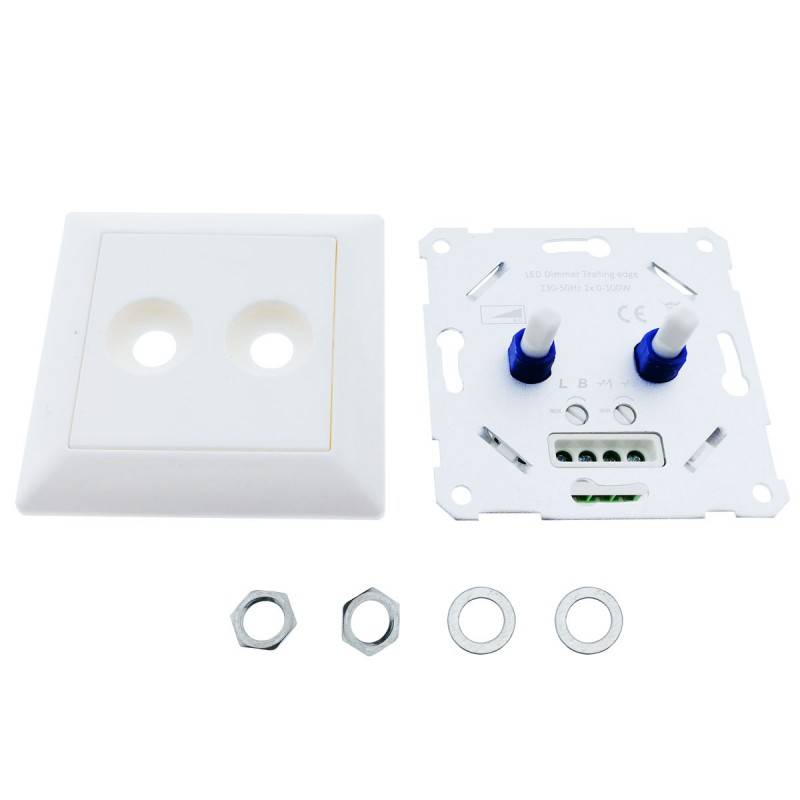

Dimmer TRIAC Dimmable 2 Channels 100W
The 100W Triac Dimmer comes with 2 outputs and a maximum of 1.2A per output channel. LED dimmer, ideal for both replacement and new installations. Active connection with only two wires, no need for neutral. Built-in protections against: overload (>120W), short circuit and over-temperature (>125ºC).
A new concept of 100W TRIAC dimmer with minimum size and compatible with RF and WiFi remote controls for dimmable LED lighting, incandescent lamps and halogens.
Triac Dimmer Installation
Installation should be performed by a professional. If you have any questions about the installation or use of this product, please consult one of our qualified technicians.
- Before installation, disconnect the power supply system.
- Strip the wires sufficiently.
- Connect the dimmer following the diagram below.
- Fix the dimmer housing to the wall junction box.
- Adjust the minimum dimming level of each channel with the adjustment screws.
After installation, press the turn/push button to turn on the Dimmer. Turn the knob to the minimum value, all the way to the left. By means of two adjusting screws, the minimum starting illumination value can be set independently for each of the two channels.
Characteristics Triac Dimmer: Voltage: 230V/AC. Frequency: 50 Hz. Maximum load: 100W. Minimum load: 3W. Dimmer mode: Low voltage electronic dimmer (Trailing edge). Control method: Bidirectional. Dimmable LED lamps: 100W max per channel. Halogen lamps: 100W max per channel. Combination of 12V light sources with a dimmable electronic transformer or dimmable LED: 100W max per line. |
ROHS
