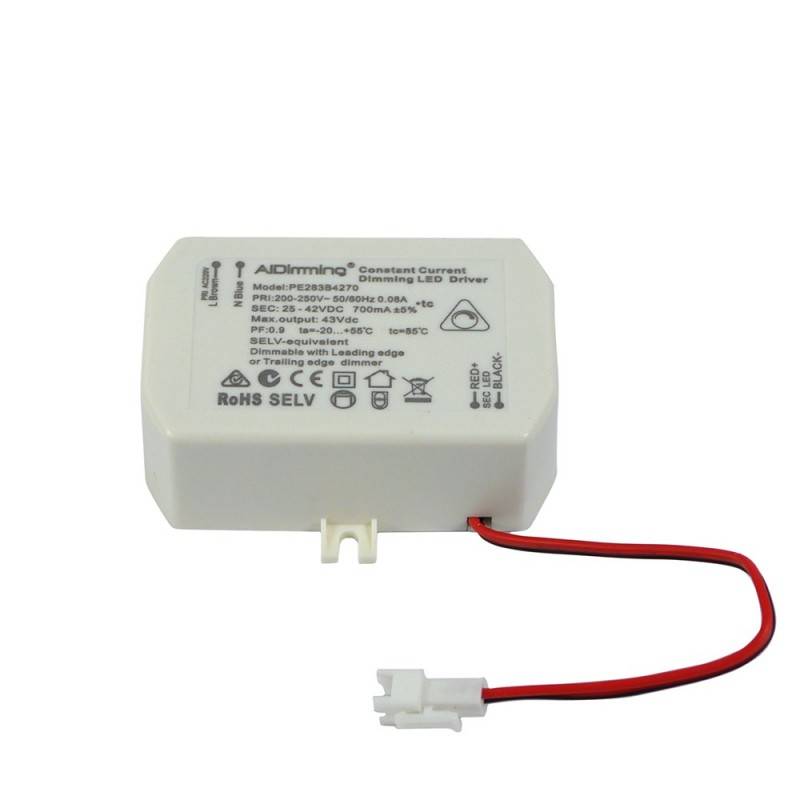

Adjustable constant current driver 25-42VDC 700mA
SKU:PE283B4270
€18.00
Tax included
Dimmable constant current driver 25-42VDC 700mA
Dimmable / dimmable constant currentdriver for LED luminaires.
It dims smoothly, does not cause jumps or flickering (NO FLICKER). In addition, it has EMC filter to avoid interference with radio and WiFi devices.
It uses the dimmable constant current driver to dim luminaires at 25-42V with a maximum current of 700mA.
The maximum admissible power of the dimmable driver will depend on the ratio between voltage and amperage of the device to be connected. If you have any questions, please contact us by clicking here.
Characteristics of the dimmable constant current driver:
- AC IN 200-250V
- SEC: 25-42V
- DC: 700mA
- Input / output wiring
- EMC filtering
- Power factor 0.90
- Regulation: TRIAC
- Dimensions: 74x28x48mm
- IP20
- Certifications: CE, RoHS, TUV, EMC, SAA, LVD
Nominal Voltage (V)
200-250V-AC
Power (W)
17-39 máx.
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
74X60X27
Frequency (Hz)
50-60
Sensor
No
Power factor (cosφ)
0,9
Control system
TRIAC
Output voltage (V)
25-42V-DC
Connectivity
By wiring
Number of channels
1
Material
Plastic
Use Outdoor
No
Temperature range
-20 ~ +55°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
0,7A
