Single Color Controller/CCT/RGB/RGBW/RGB+CCT - 12-48V DC - WiFi+RF - TUYA - Skydance

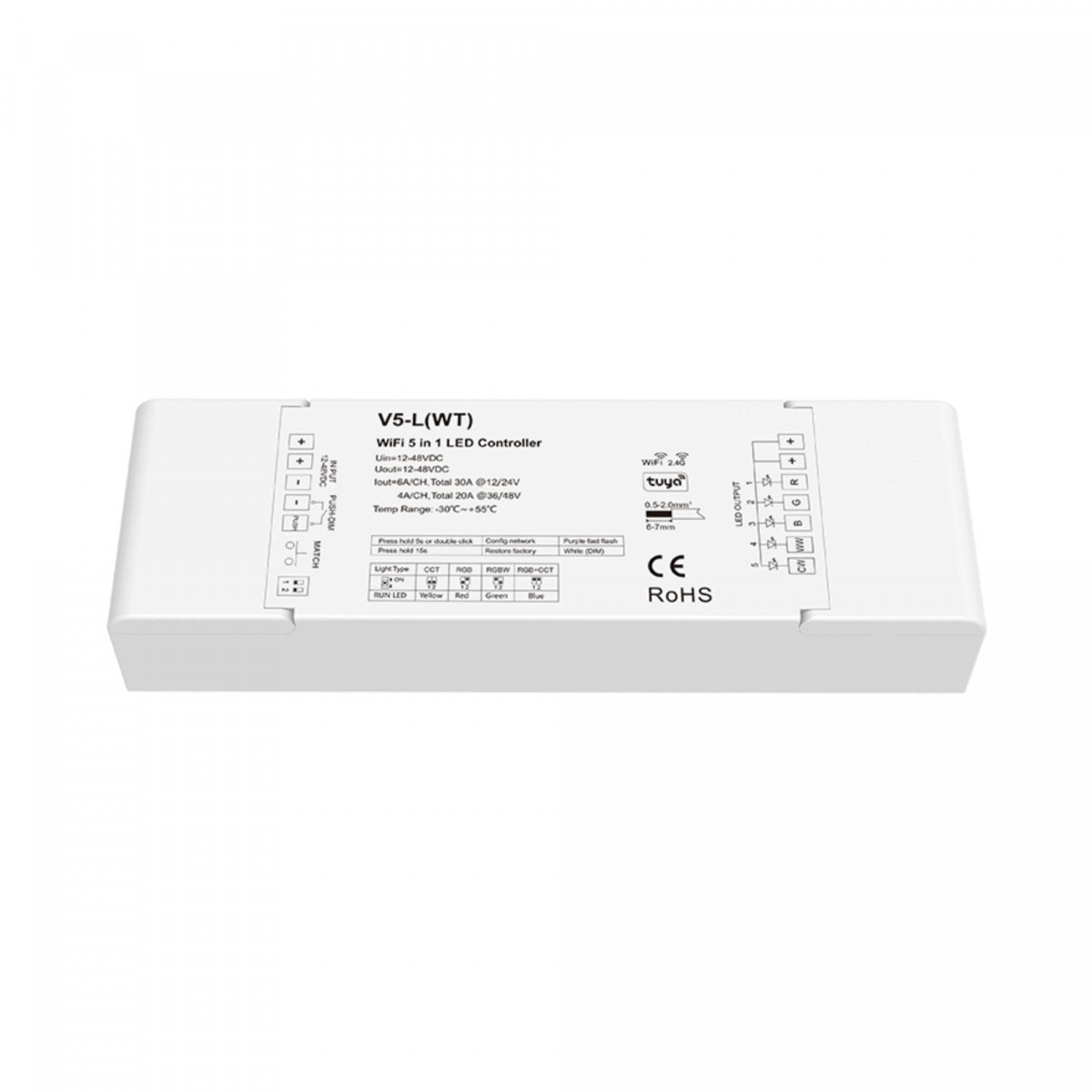

Single Color / CCT / RGB / RGBW / RGB+CCT Controller - 5 in 1: Complete and Versatile Control

This controller offers a comprehensive solution for LED lighting in home and commercial environments, combining WiFi, RF 2.4GHz and Push-DIM control in one device.

• Wide compatibility: Supports 12-48V single color, CCT, RGB, RGBW and RGB+CCT LED strips, with 5×6A (12-24V) or 5×4A (36-48V) output.

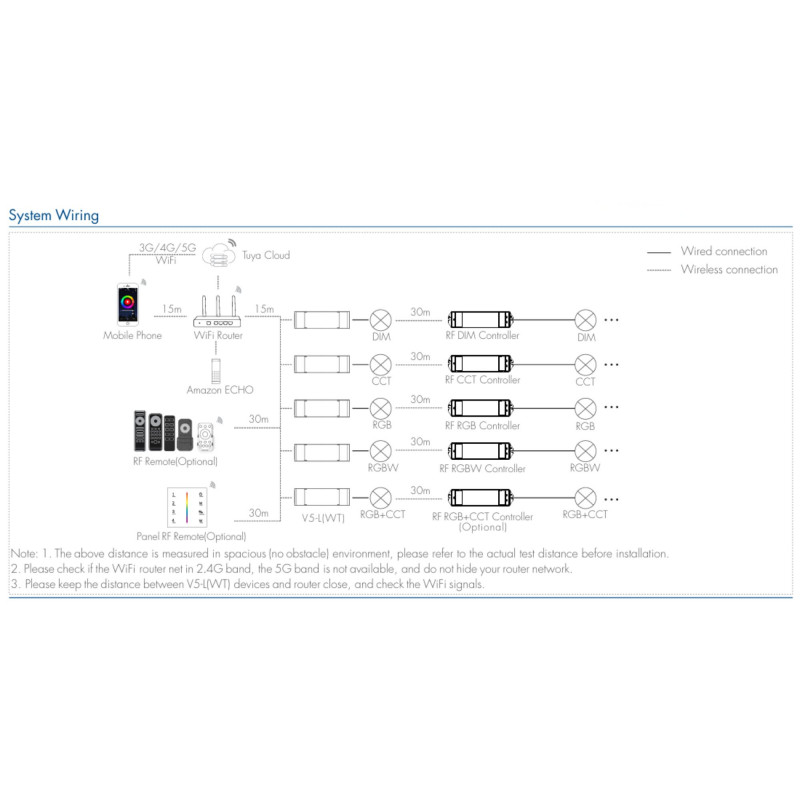

• Smart and remote control: compatible with Tuya Smart, Alexa and Google Assistant, allowing adjustments of brightness, color, temperature, scenes, music and timers. Also functions as a WiFi to RF converter to control other synchronized RF receivers.

• Advanced dimming: 0-100% dimming, 3s on/off transition and PWM frequency selection between 500Hz, 2000Hz, 8000Hz and 16000Hz to minimize flicker.

• RF and Push-DIM control: Compatible with 2.4GHz Skydance RF controllers, allowing multiple control; in addition, it can be managed by an external push button for on/off and dimming functions.

• Protection and reliability: Incorporates protection against overheating, short circuit and reverse polarity, with stable operation between -30°C and +55°C.
