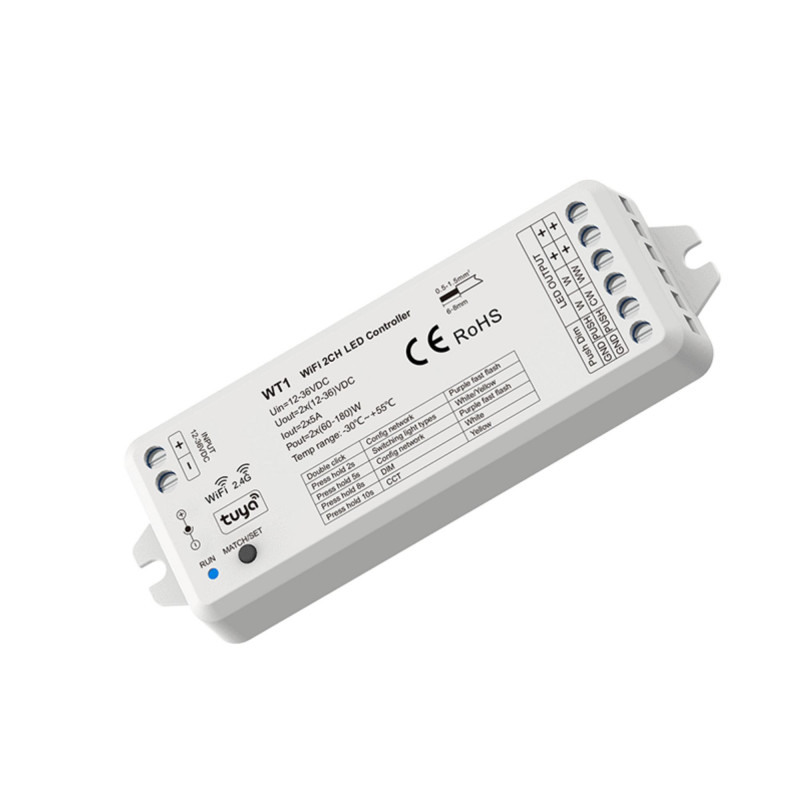

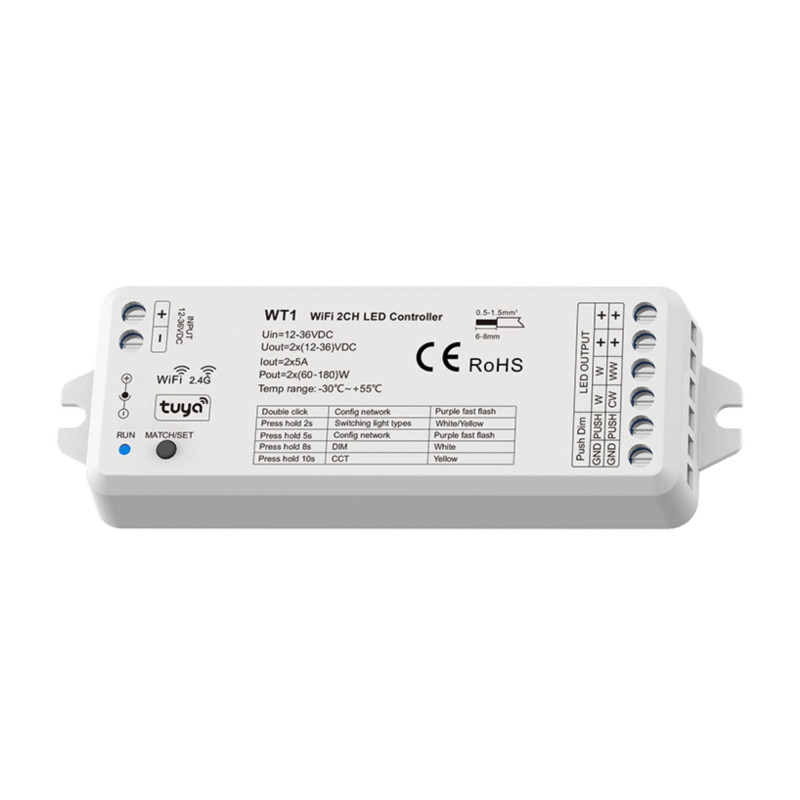

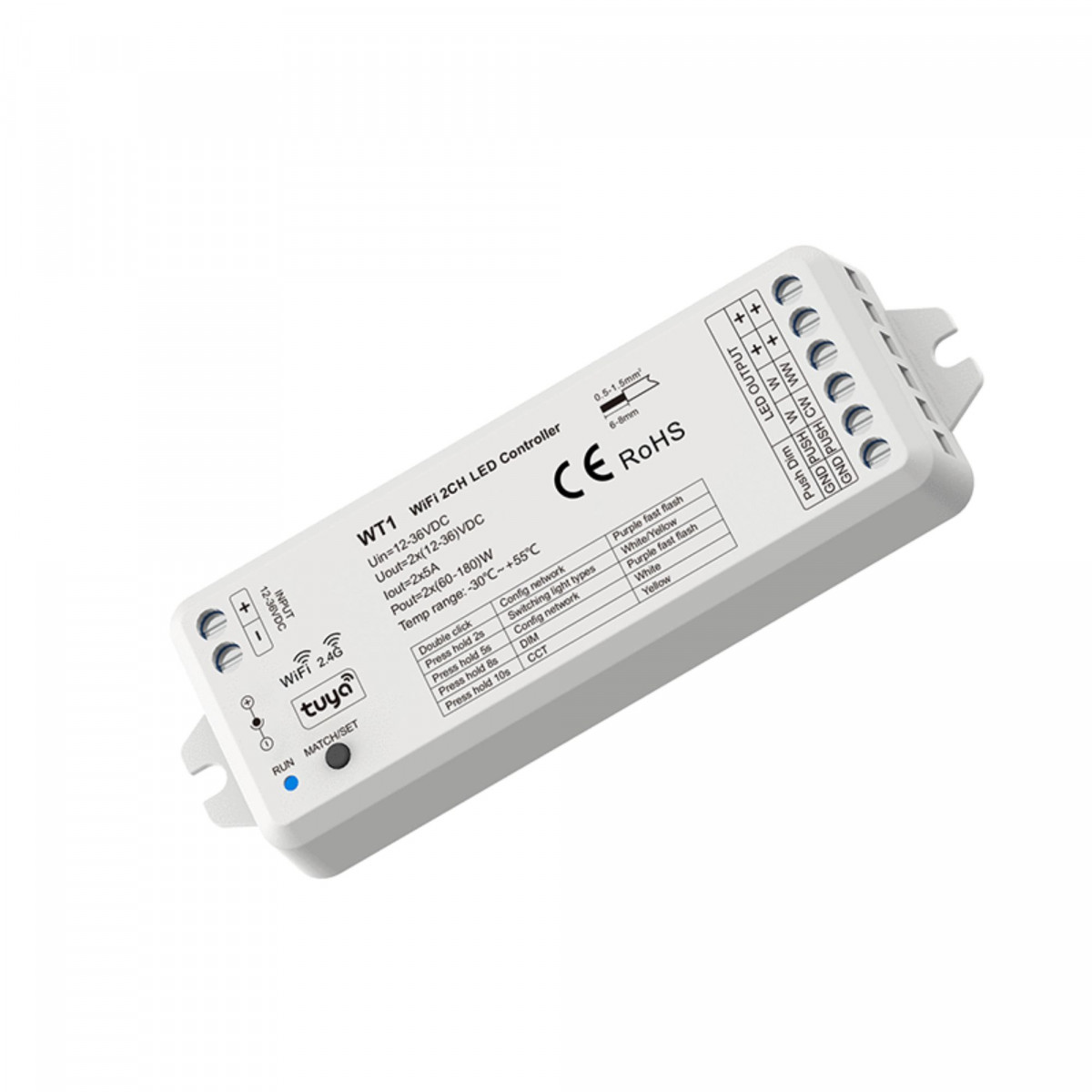

Single Color / CCT Controller - 12-36V DC - WiFi+RF - TUYA - Skydance

Single color DIM / CCT controller - WiFi + RF - 2 channels: versatile solution for LED strips

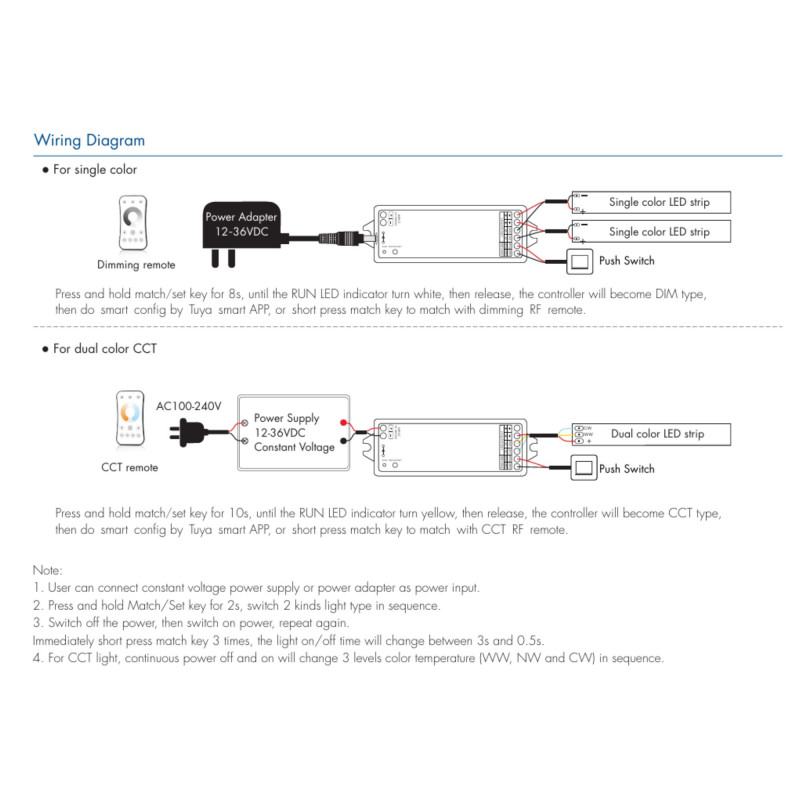

This controller offers a complete solution for single color or CCT LED strips in home and commercial applications, combining WiFi, RF 2.4GHz and Push-DIM control in a single device.

• Compatibility with single color and CCT LED strips: Supports 12-36V DC with 2×5A output, allowing to control brightness or color temperature according to the selected mode.

• Smart and remote control: Compatible with Tuya Smart, Alexa and Google Assistant. Allows adjustments of brightness, temperature, scenes, timers and also works as a WiFi-RF bridge to synchronize one or more RF controllers.

• Advanced dimming: 0-100% dimming, 3-second (or 0.5s) on/off transition, 4096 dimming levels and 2000Hz PWM to minimize flicker.

• RF and Push-DIM control: Compatible with 2.4GHz Skydance RF controllers; allows zonal control. Also supports external push button for on/off, temperature change (CCT) and continuous dimming.

• Protection and reliability: Incorporates reverse polarity, overload, overheat and short circuit protection, with stable operation between -30°C and +55°C and housing up to 85°C.
