MINI Controller - TRIAC - WiFi+RF - 100-240V AC - TUYA - Skydance

SKU:SK-S1-B(WT)
Has superado el límite de unidades
In stock 78 units
Data sheet

TRIAC WiFi + RF + Push dimmer for dimmable LED lamps.

It allows dimming from 0 to 100% through phase-cut output (leading - trailing edge), compatible with TRIAC dimmable LED bulbs, TRIAC drivers, halogen and incandescent.

It includes WiFi control via Tuya Smart and is compatible with Alexa and Google Assistant. It also works as a WiFi-RF converter.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  sales@barcelonaled.com

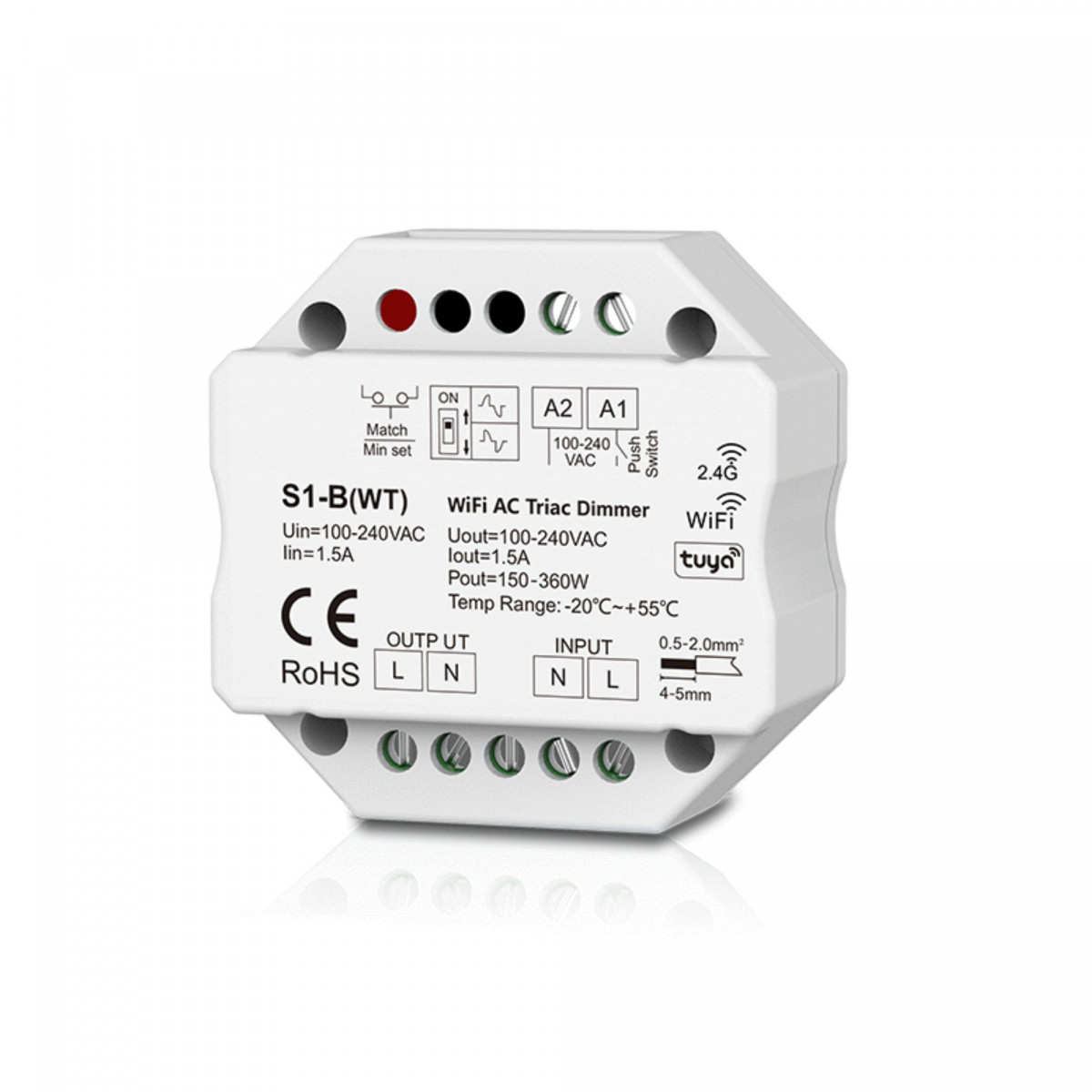

MINI - TRIAC WiFi + RF + Push Controller: Total control for dimmable lighting

This dimmer offers a complete solution for TRIAC dimmable LED luminaires, allowing WiFi, RF 2.4GHz and Push-DIM control in a single device.

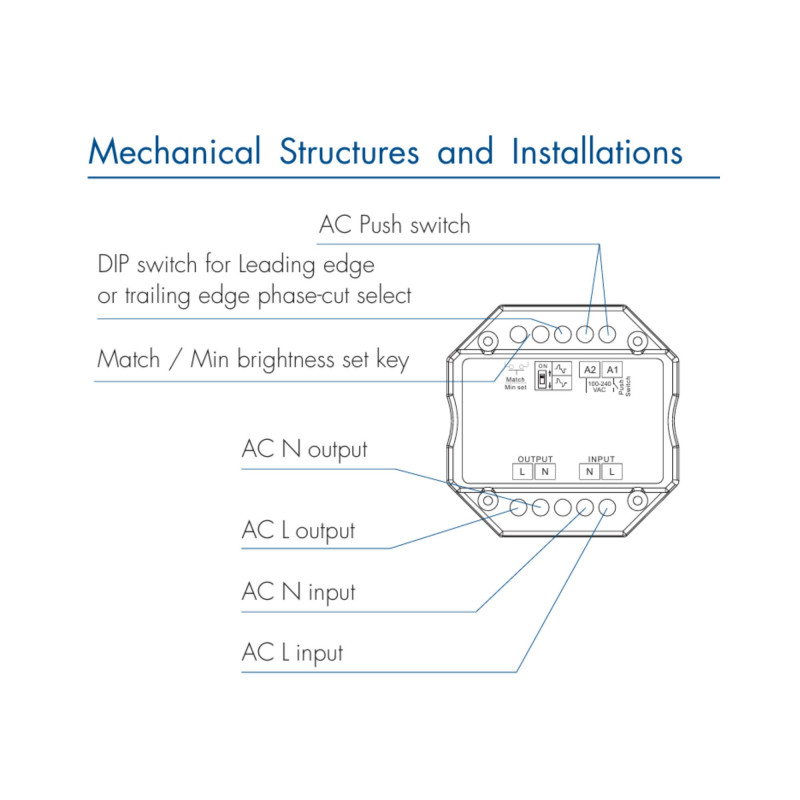

    • Wide compatibility: Compatible with TRIAC dimmable LED bulbs, TRIAC LED drivers, incandescent and halogen lamps. Choice of leading edge or trailing edge dimming via DIP switch.
    • Smart and remote control: integration with Tuya Smart, Alexa and Google Assistant to adjust brightness, timers, scenes and remote on/off. Can work as WiFi-RF converter to synchronize multiple RF dimmers.
    • Advanced dimming: 0-100% dimming with 256 levels of softness and 3s or 0.5s fade in/out option. Minimum brightness can be set from the device itself.
    • RF and Push-DIM control: Compatible with 2.4GHz RF controllers. The push switch input allows to turn on, turn off and dim by pressing and holding.
    • Protection and reliability: Incorporates overheating and overload protection with automatic recovery.

Nominal Voltage (V)
100 - 240 V/AC
Colour control
Monocolor
Connectivity
RF
Temperature range
-30°C ~ +55°C
Certificates
CE
ROHS
Warranty
5 years
Maximum intensity (A)
1.5
Control Distance
30m

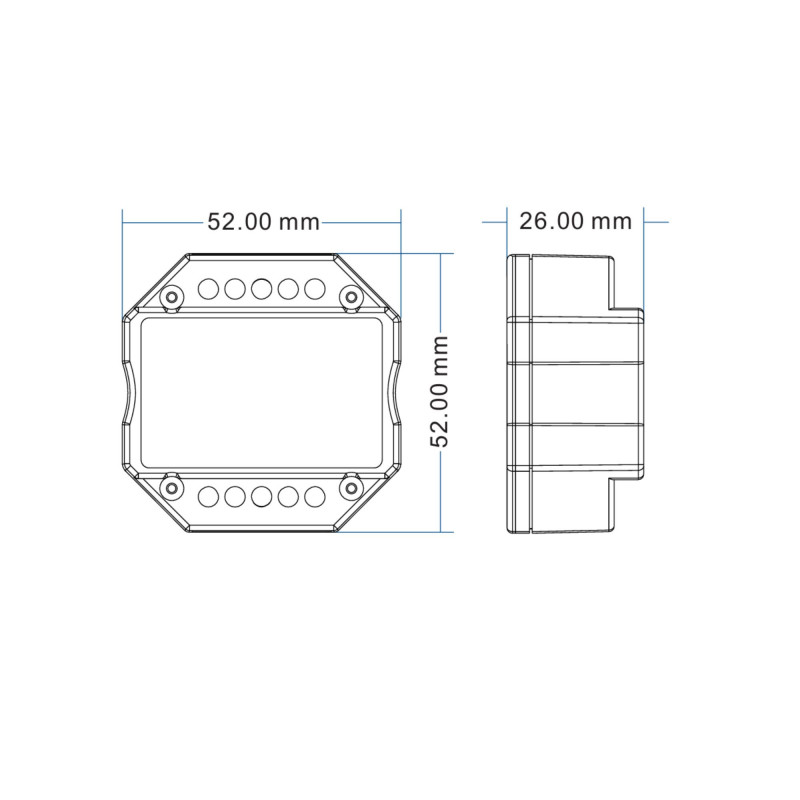

Length
52 mm
Width
52 mm
Height
26 mm
Skydance
