RGB Amplifier/repeater - 12-24V - 12 Ampere
RGB Amplifier/repeater - 12-24V - 12 Ampere
RGB Amplifier/repeater - 12-24V - 12 Ampere
24 Amp RGB Repeater

RGB Amplifier/repeater - 12-24V - 12 Ampere

SKU:B1625
Has superado el límite de unidades
In stock 189 unidades

Signal amplifier for 12-24V RGB LED strips and LED RGB luminaires.

It allows extending the length of dimmable LED strip installations using a single controller.

The dimming signal will extend linearly and without delays, ensuring optimal performance at all times.

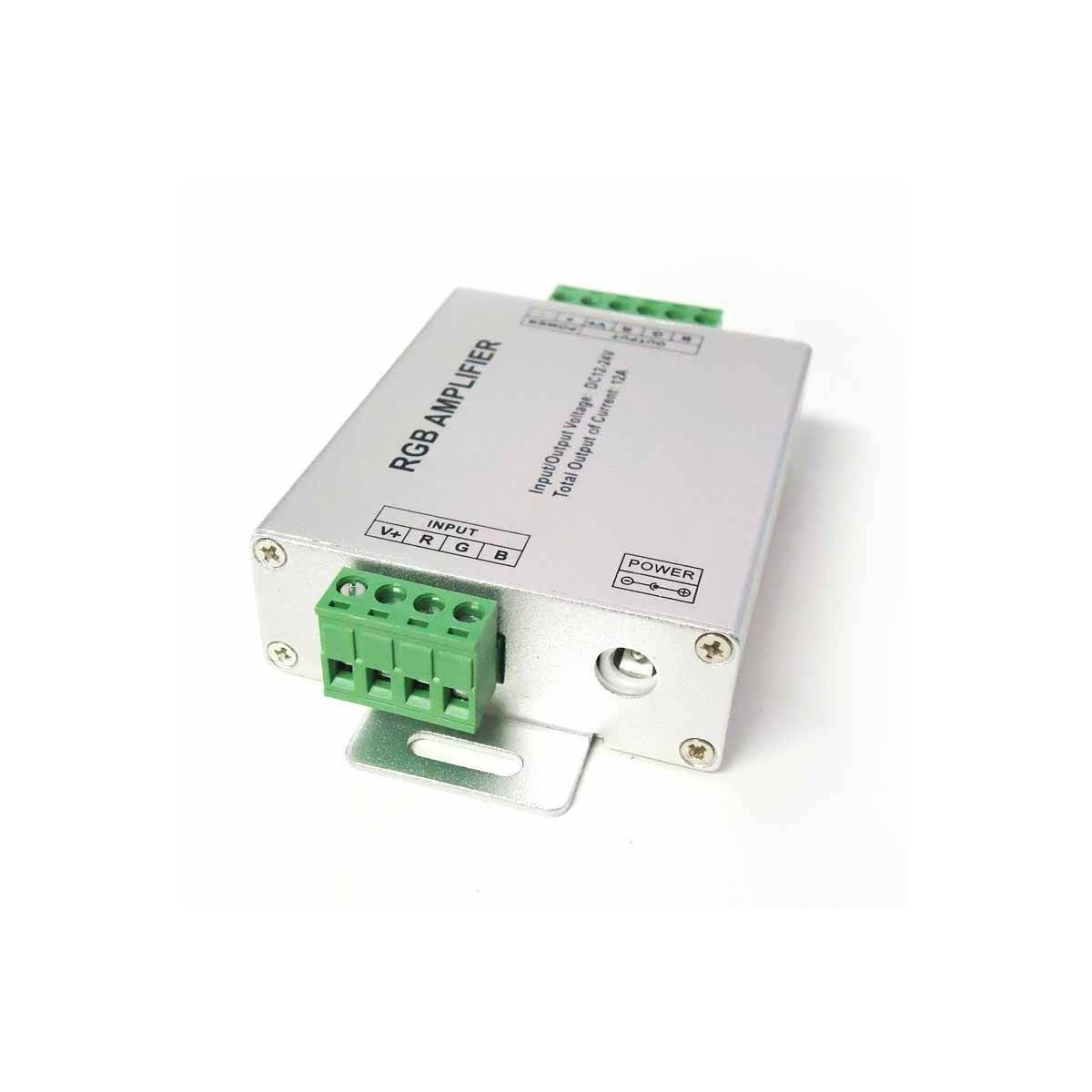

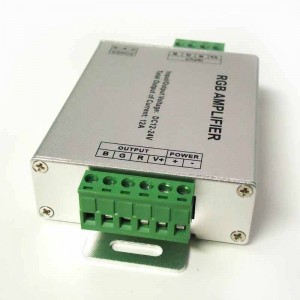

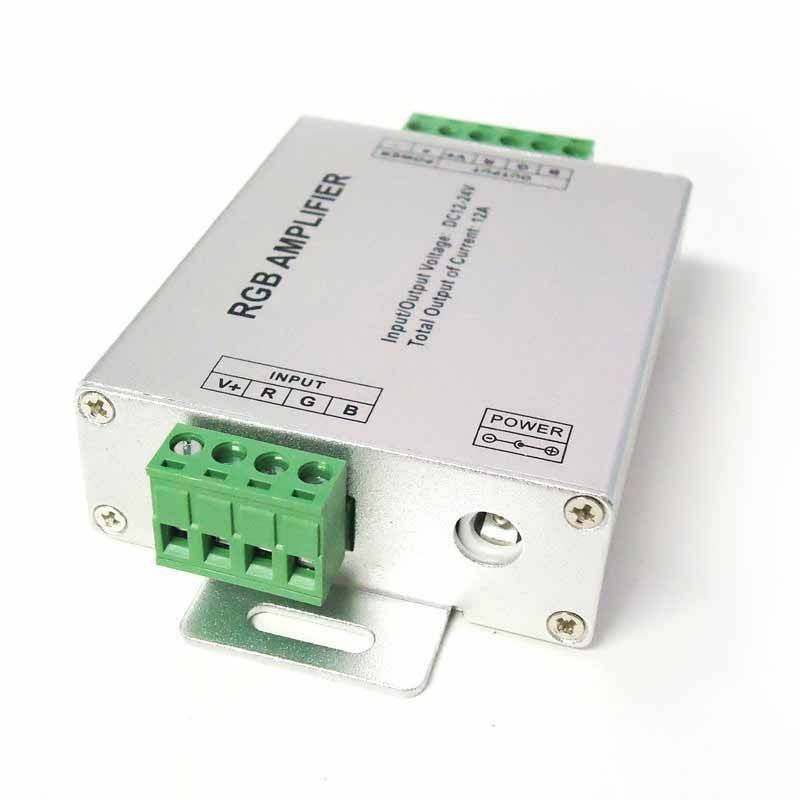

RGB LED Amplifier/Repeater - 12-24V

This device offers the ability to amplify the PWM signal, allowing the installation of long LED strip extensions without experiencing signal loss.

It's suitable for 12-24V RGB LED strips and luminaires, supporting a total of 12 Ampere.

It's essential to select an appropriate power supply that matches the consumption of the LED strip or luminaire to be installed. Additionally, the "POWER" connection must be correctly connected to ensure the circuit operates properly.

Attention should also be paid to wiring to avoid short circuits, ensuring positive and negative polarity are respected at all times.

Product features:

  • Input voltage: 12-24V DC
  • Power: 144-288 max
  • Maximum current: 12 amps
  • Dimensions: 95 x 65 x 24 mm
  • Dimming type: RGB
  • IP20: indoor use

Nominal Voltage (V)
12-24V
Power (W)
144-288 max
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
95x65x24
Sensor
No
Colour control
RGB
Connectivity
By wiring
Number of channels
3
Weight (g)
110
Material
Aluminium
Plastic
Use Outdoor
Yes, in a waterproof box
Temperature range
-20℃~+60℃
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
12
