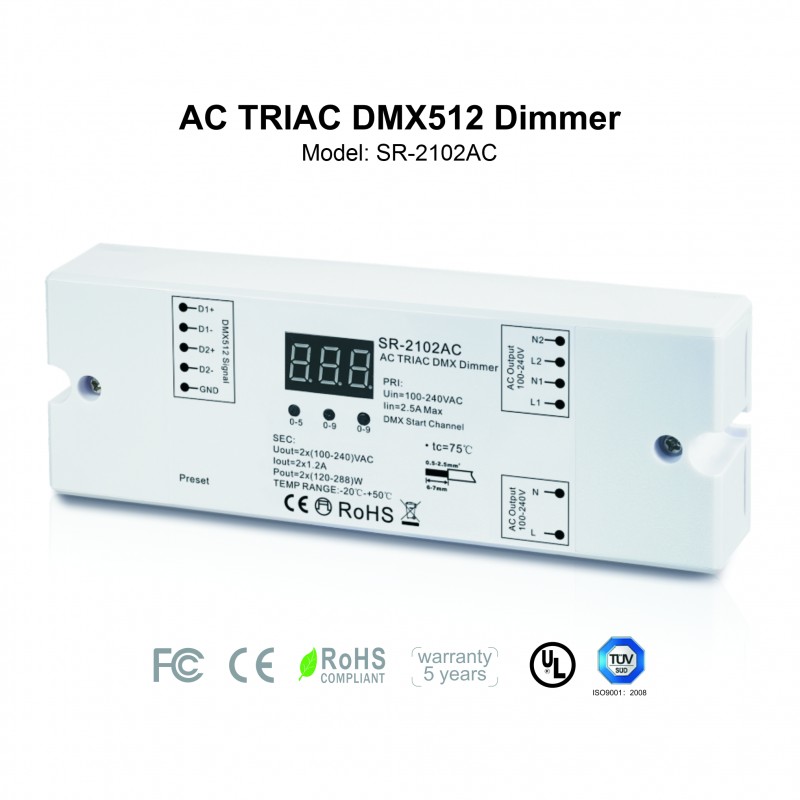

Single color AC TRIAC controller - DMX Dimmer - 2 channels 1,2A/ch - 100-240V - Sunricher

TheAC TRIAC - DMX Dimmer - Sunricher controller features a slim design that allows multiple applications in both home and commercial environments.

It operates under DMX512 protocol, which has a limit of 512 channels per universe (DMX universe). Several universes can be managed with a single controller.

It is dimmable by TRIAC and compatible with a wide variety of DMX Masters.

It incorporates a display to visualize the DMX address and has two channels (both channels work together), with a maximum output current of 1.2A per channel.

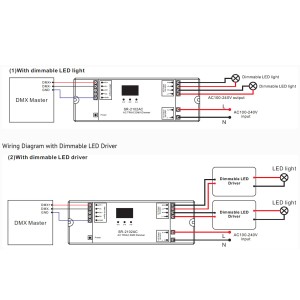

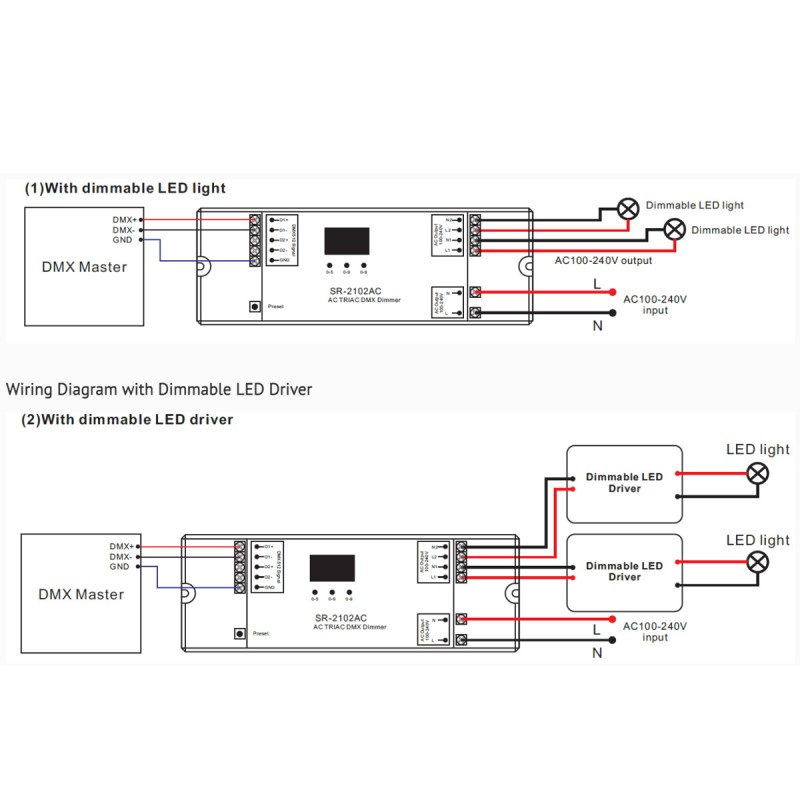

Dimmable LED lamps: Maximum load 2 channels x 60W - 100V output, 2 channels x 144W - 240V output. Due to the variety of LED lamp designs, to determine the maximum number of lamps to be connected per channel, the power factor must be taken into account.

Dimmable LED Drivers: Maximum load: 2 channels x 60W - 100V output, 2 channels x 144W - 240V output. The maximum allowable number of drivers per channel is 60W/144W divided by the rated power of the driver board.

This TRIAC-DMX controller also features an innovative user adjustable minimum brightness function that allows dimming from 0 to 100% brightness.
