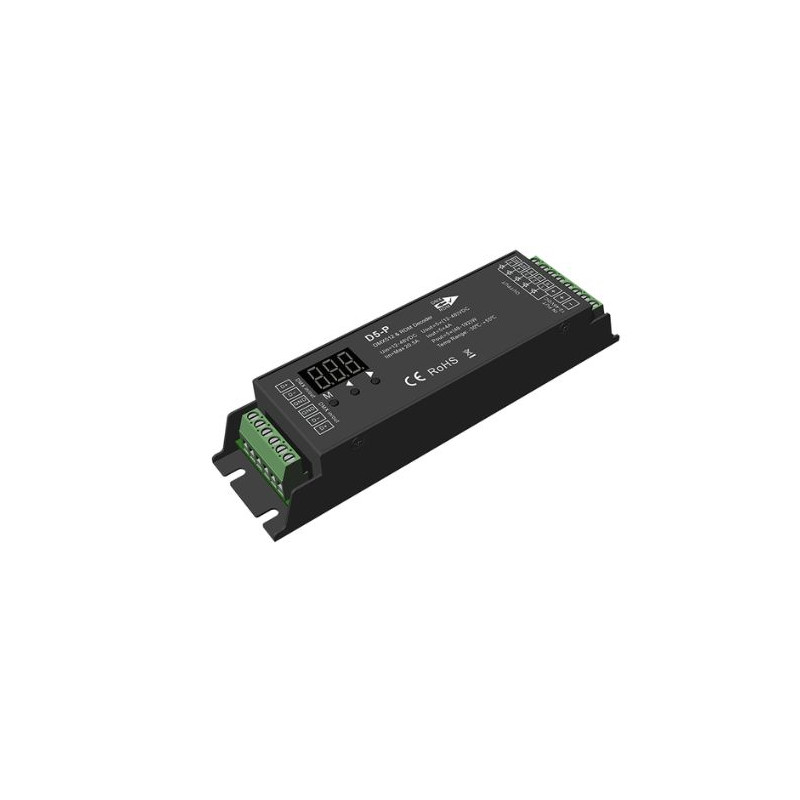

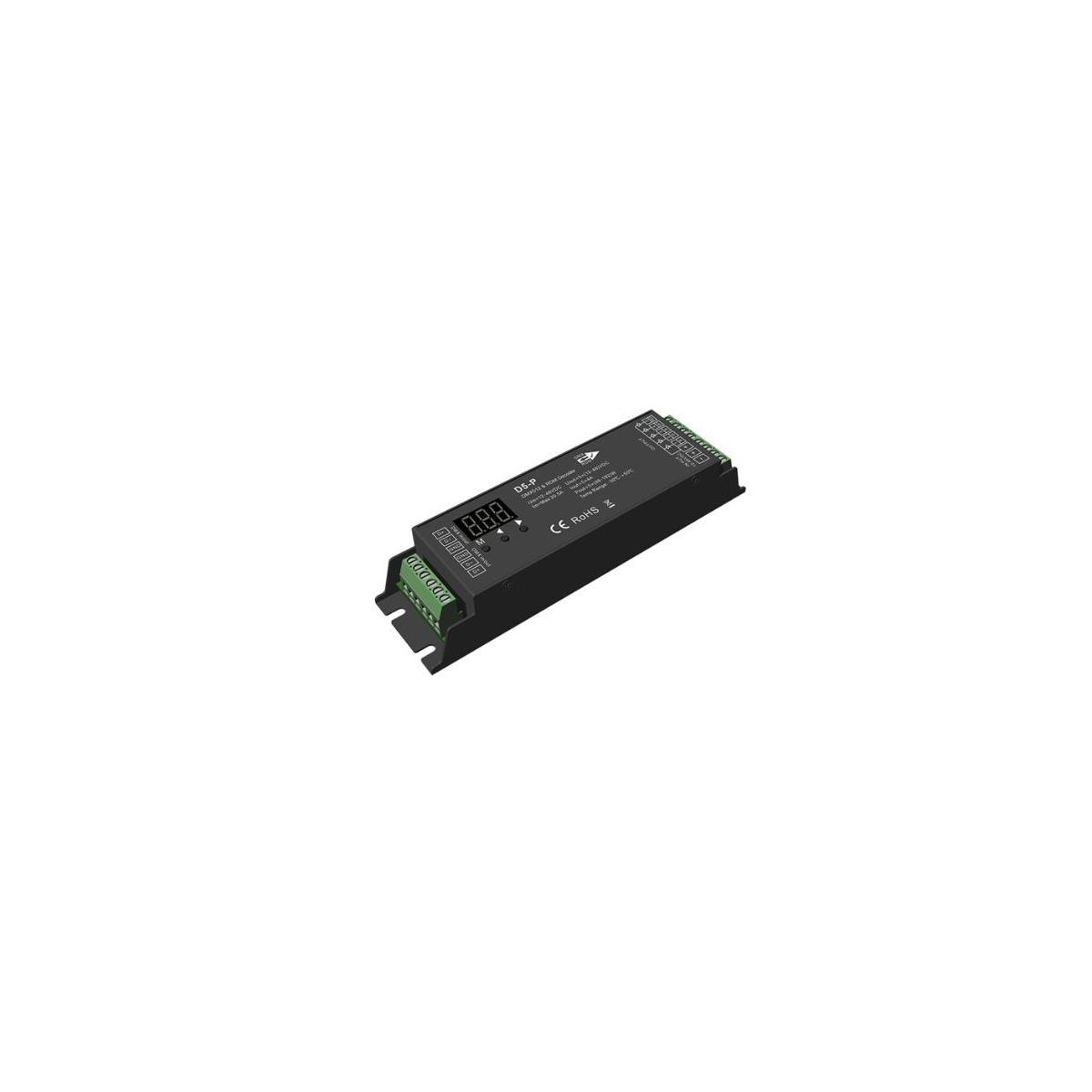

DMX512 Decoder 12-48V DC - 4A/ channel - 5 Channels - D5-P

Name: DMX512 Decoder 12-48V DC - 4A/channel - 5 Channels - D5-P
Brand: Skydance
SKU: SK-D5-P
Price: 34.99 EUR
Availability: InStock

SKU:SK-D5-P

€34.99 Tax included

In stock 20 units

Data sheet

The 5-channel DMX512 and RDM Decoder allows you to control constant voltage LED strips with total precision and smoothness. It supports standard DMX512 protocol and has RDM function for bi-directional communication between DMX controller and decoder.

It supports 12-48VDC input and offers 5 output channels (5x4A) with a maximum power of 192W. It offers constant voltage output with a maximum total current of 20.5A.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: sales@barcelonaled.com

DMX512 and RDM 5 Channel Decoder

Compatible with standard DMX512 protocol.
RDM function for intercommunication between DMX master console and decoder.
Digital display with buttons to set DMX address.
Resolution selection: 8 bits (256 levels) or 16 bits (65536 levels).
PWM frequency adjustable: 250 / 500 / 1000 / 1000 / 2000 / 4000 / 8000 / 16000 / 32000 Hz.
Selectable attenuation curve: linear or logarithmic.
Overheating, overload, reverse polarity and short-circuit protection, with automatic recovery.
Constant voltage output mode, suitable for RGB, RGBW or CCT LED strips.
