SKU:SK-T12
Has superado el límite de unidades
In stock 44 unidades

The 4-zone recessed DMX touch control panel offers complete lighting control for 100-240V CCT LED fixtures.

It can function as a DMX512 master or RF remote control.

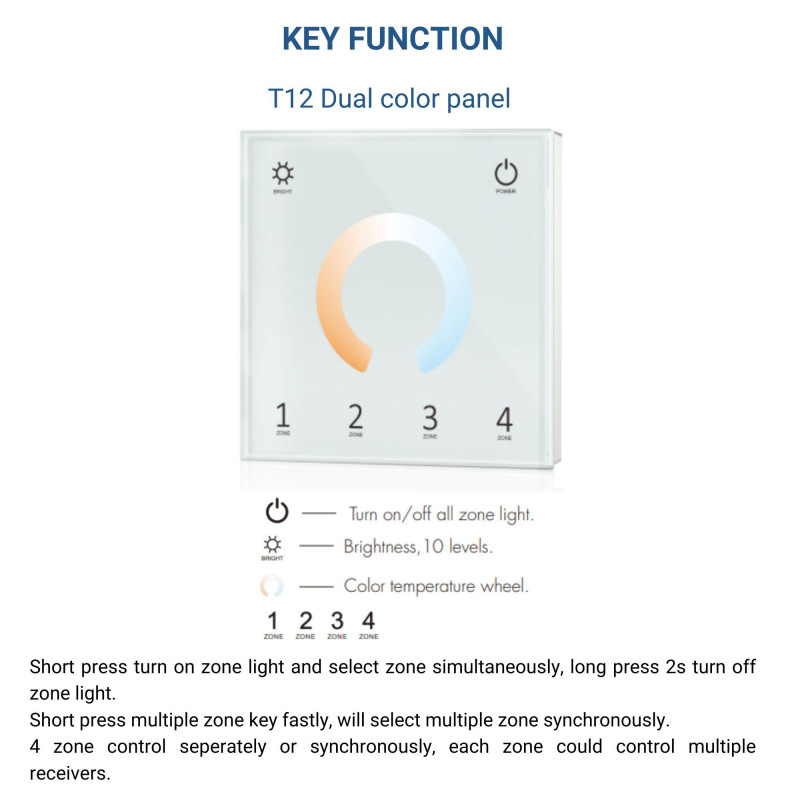

Its elegant, high-sensitivity glass touch interface includes a color wheel for precise adjustments, along with touch keys featuring LED indicators. Brightness, saturation, scene speed, dynamic modes, etc. can be adjusted.

The CCT DMX Touch control panel features a sleek white design and dual functionality as a DMX512 master or RF remote control.

It complies with the DMX512 standard and is compatible with any DMX decoder, ensuring easy integration into existing lighting systems.

In its RF mode, each zone can control multiple 2.4G RF LED controllers. In addition, it allows control of 4 zones individually or synchronized.

It incorporates a touch wheel that allows precise adjustment of the color temperature and also offers a customized brightness adjustment, according to the needs.

Its touch keys with LED indicators ensure intuitive operation.

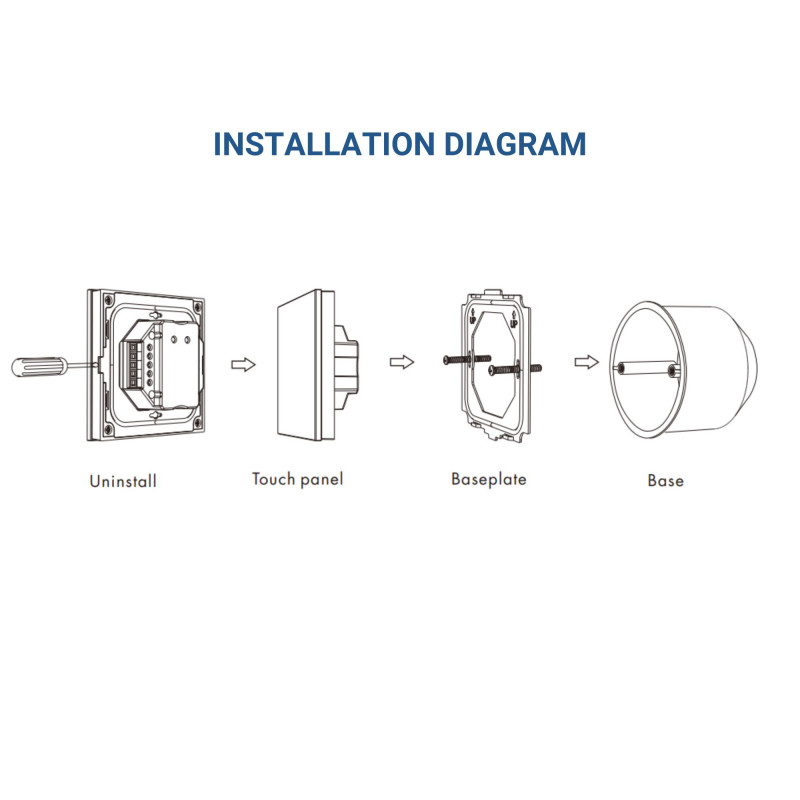

It features standard dimensions that fit into a universal (EU) flush-mounted box.

Product features:

  • Input voltage: 100-240V AC
  • 4 zones
  • Input signal: Touch + RF 2.4GHz
  • Output signal: DMX512, RF 2.4GHz
  • RF range: 10m (unobstructed)

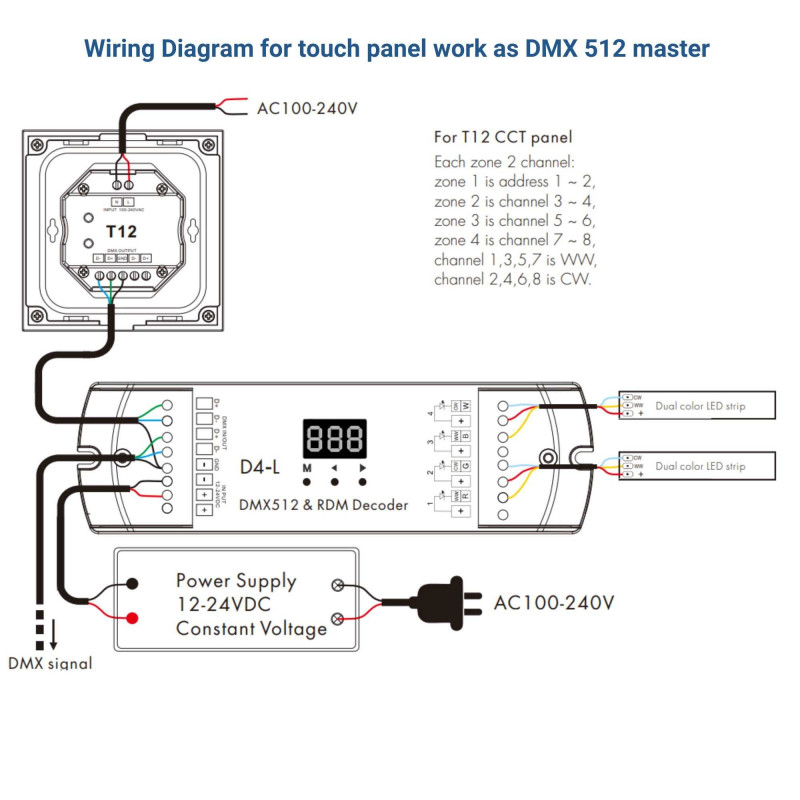

  • No. of DMX output channels: 8 (2 per zone)
  • Dimensions: 86 x 86 x 33 mm
  • Indoor use: IP20
Nominal Voltage (V)
100-240V
IP
IP20
Dimensions (mm) Lxlxh
86 x 86 x 33
Dimmable
Yes
Colour control
CCT
Connectivity
DMX
RF
Mounting
Recessed
Material
Glass
Use Outdoor
No
Temperature range
-30°C ~ +55°C
Certificates
CE
ROHS
Warranty
5 years
Weight (kg)
0.181
Skydance
