LED music controller IC Pixel RGB/RGBW Bluetooth - 5-24V DC - 960 pixels
The LED IC music controller allows you to create eye-catching lighting effects to the rhythm of music in a very simple and intuitive way.

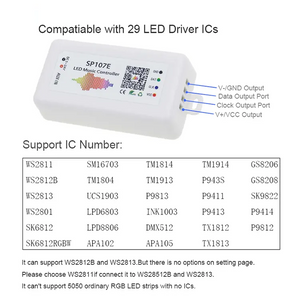

It is compatible with a variety of single and dual wire LED IC types: WS2811, WS2812B, WS2813, SK6812-RGBW and so on.
It has 30 preset music effect modes and 180 dynamic color modes. Both brightness and speed are adjustable according to needs.

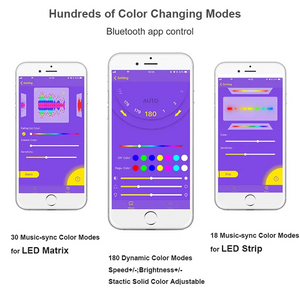

It is controlled by the "LED Shop" app which is compatible with any cell phone running Android OS (version 4.4 onwards) or IOS (version 10.0 onwards). It can be downloaded from Google Play Store or from the QR code available in the product instructions.
Main product features:
|
Instructions for using the LED Strip Controller Application
- Make sure you have activated Bluetooth on your phone.

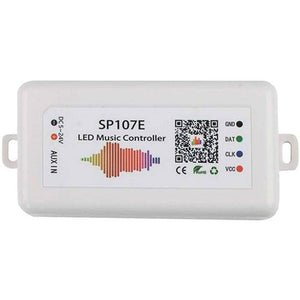

- Open the application and select the device "SP107E". Once connected, you can change the name of the music controller.
- Select the IC type and RGB order.
- Set the number of pixels.
- By pressing Enter" we can select the audio input in two ways: via the built-in microphone, or by connecting the audio cable to the controller and the audio output source (mp3, phone, etc.). The controller will automatically switch to AUX input mode.
- If you disconnect the audio cable the controller will automatically switch to microphone input mode.
ROHS
