Single colour controller 12-48V DC - 15A - RF 2.4G - PUSH dimmer - Skydance

Single colour controller 12-48V DC -15A - RF 2.4G - PUSH dimmer

This single colour controller is designed to give you maximum flexibility and convenience in light management.

It offers smooth, flicker-free dimming from 0-100% in 4096 levels.

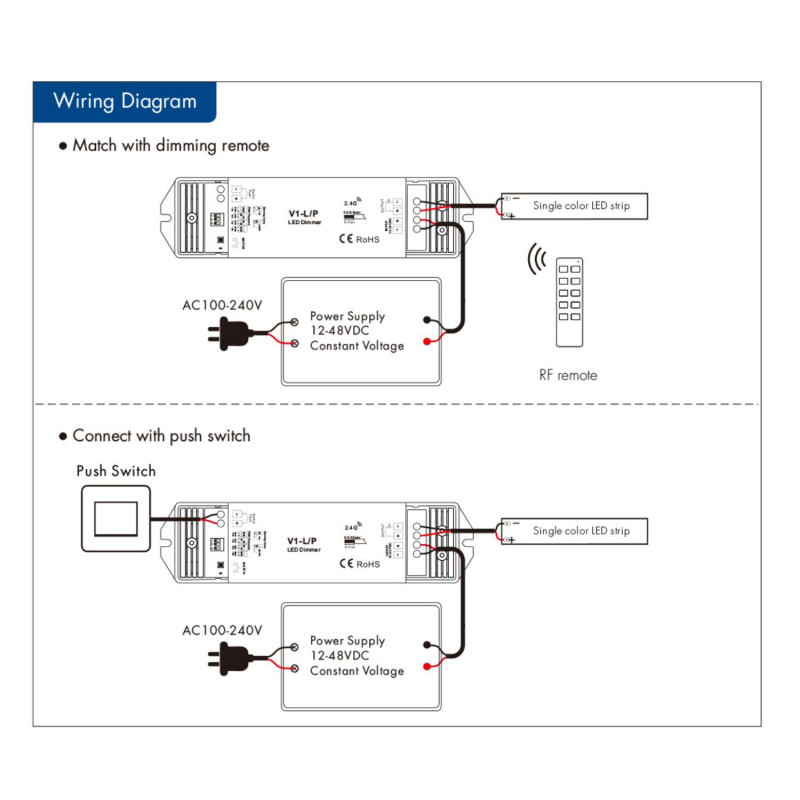

It allows adjusting the lighting from anywhere in the room, thanks to its compatibility with RF 2.4G remote controls for one or multiple zones (see related products). Moreover, a single controller can accept up to 10 remote controls.

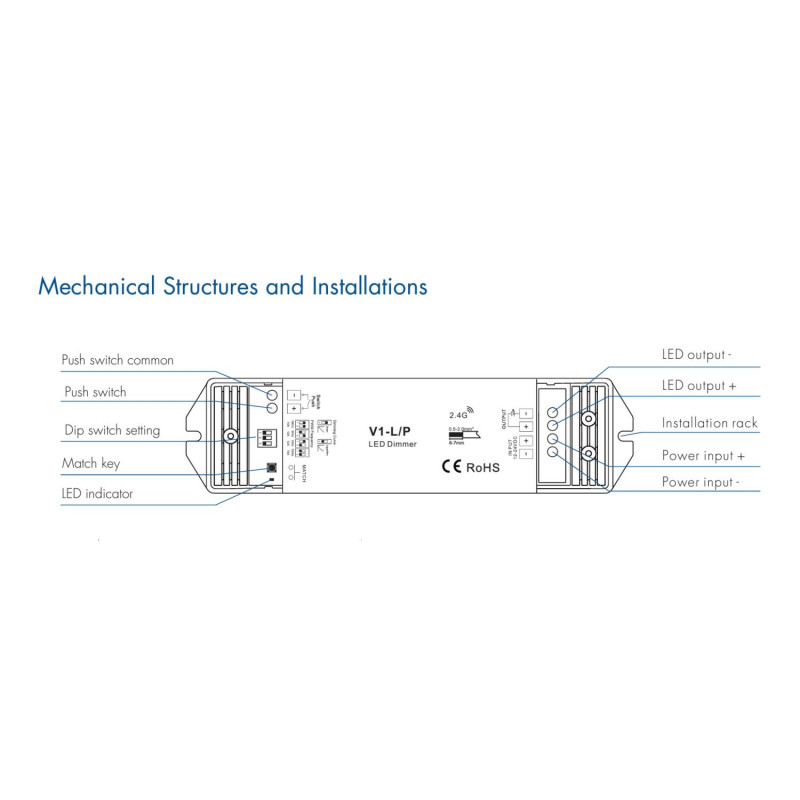

It can be regulated via PUSH, connecting it to an external switch, for ON/OFF functions and 0-100% dimming.

It offers the possibility to choose between a linear or logarithmic dimming curve and supports a maximum load capacity of 15A.

With four selectable PWM frequencies (500Hz, 2kHz, 8kHz, or 16kHz), this controller provides additional flexibility to optimize LED lighting performance and avoid potential flickering.

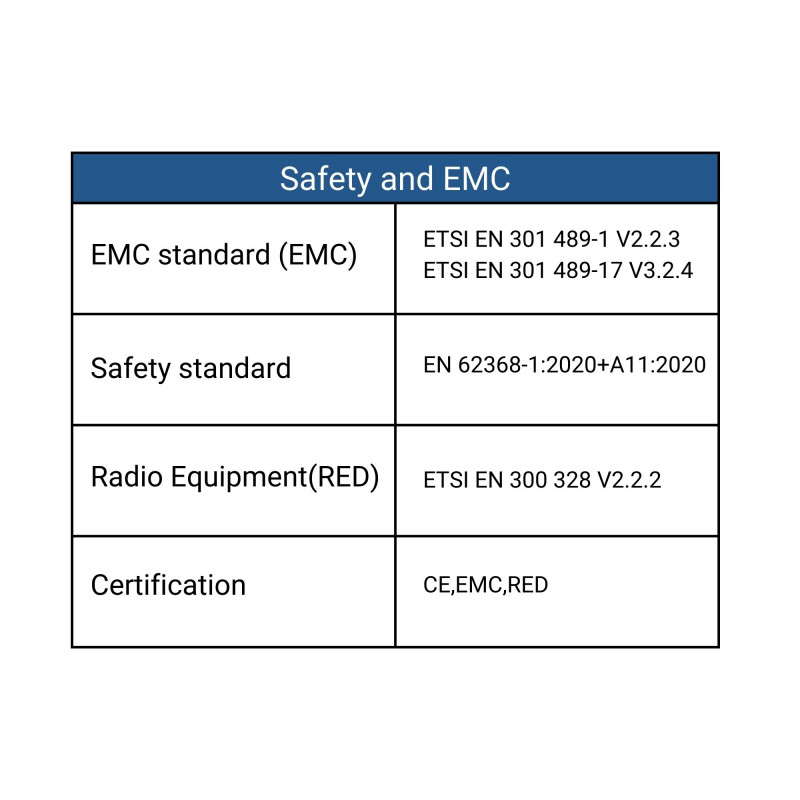

To ensure safety and durability, it's equipped with protection against overheating, overload and short circuits.

Innovative functions:

• Auto-transmission: One controller can send signals to another one within 30 metres, extending the range of the remote control.
• Auto-synchronization: Several controllers within 30 metres can work together when controlled by the same remote control, ensuring uniform lighting.

It's important to consider that the communication distance between controllers can reach up to 30 metres, but the presence of metallic materials or strong signal sources such as WiFi routers or microwave ovens can affect the range. It's recommended that, for indoor applications, the distance between controllers should not exceed 15 metres to ensure optimal operation.

• "Light on/off fade time" function: offers the option to select a dimming time when turning the light on or off, with a smooth 3-second transition that provides a more pleasant and comfortable lighting experience.
