Dimmer DALI Mini 1 channel 8A DC 12-36V

Constant Voltage DALI Dimmer

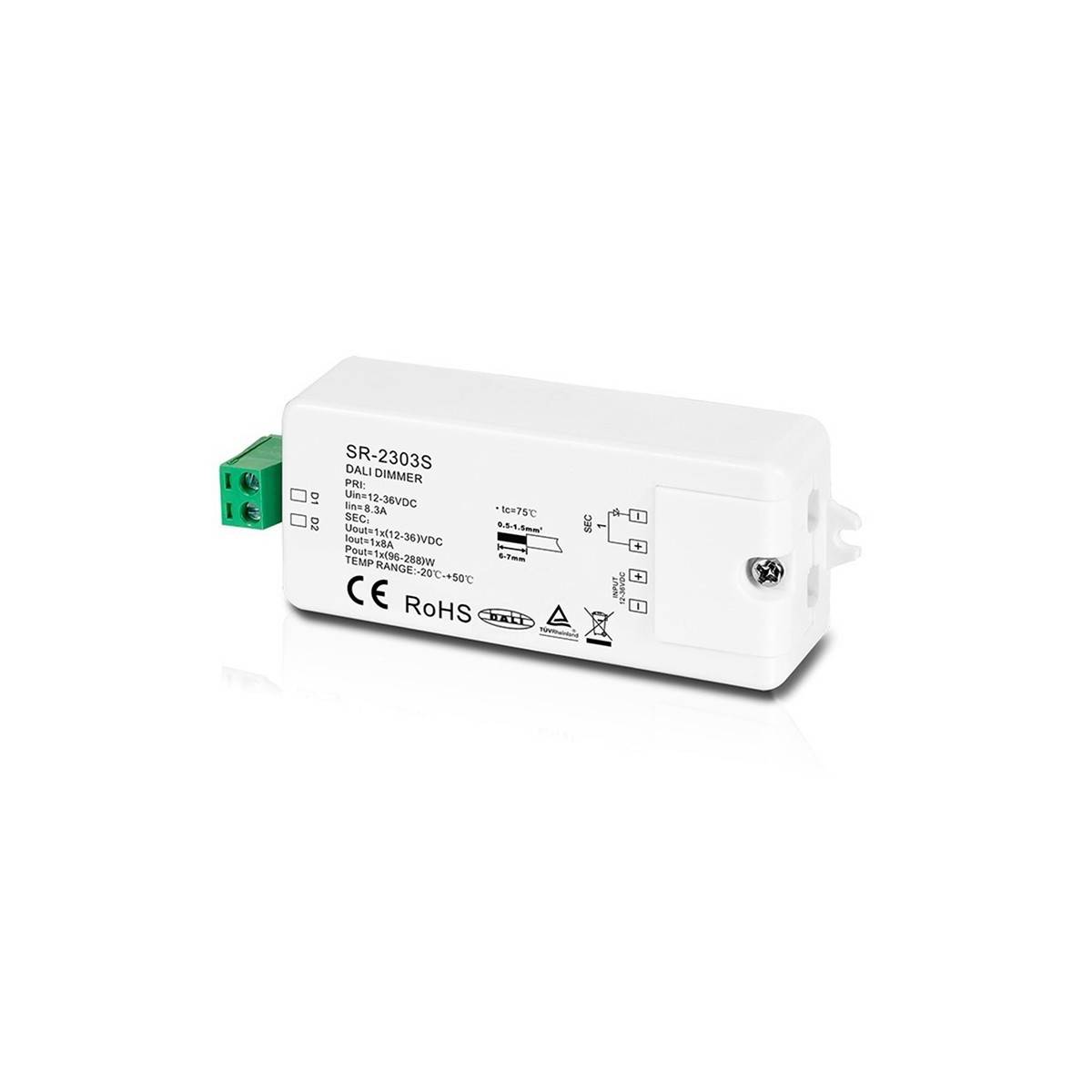

The DALI Dimmer SR-2303S is a small, 1-channel, 8A constant voltage dimmer available in 12V-DC, 24V-DC and 36V-DC output.

Through logarithmic dimming it achieves smooth dimming from 0% to 100% brightness. Master controllers will automatically assign the DALI address. Complies with standard protocol with 1 DALI address to control 1 channel separately. Supports up to 8A loads.

The constant voltage dimmer is designed with 1 channel and output power of 96-288W. With compact dimensions of 37X85x20mm. Perfect device for dimming and switching single color LED luminaires.

Specially designed for uniform dimmable lighting, no noise, no flickering and no dimming jumps.

Compatible with Tridonic Sotware. App for users to control their individual luminaires via wifi network.

Main features of the mini DALI dimmer

• Constant voltage DALI LED dimmer.
• 1 DALI address to control 1 8A output channel, in 12V-DC, 24V-DC and 36V-DC.
• Input and output with screw terminals, safe and reliable.
• According to IEC 62386-102, IEC 62386-207 DALI standard protocol and according to other international companies' DALI products.
• Innovative minimum brightness adjustment function.
• Dimming range from 0% to 100% by logarithmic characteristic, perfect for human eyesight.
• DALI address is automatically assigned by the master controller.
• 1 DALI address, 1 channel works separately.

• Compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DT6 DALI device.
• Mini size, easy to install.
• Waterproof grade: IP20.
• DALI certified.
• TUV CE certified.
• Work with LED lights, DALI lighting system.
• To work with power repeater to extend the output indefinitely.
• Dimensions: 37X85x20mm

Wiring connection diagram
