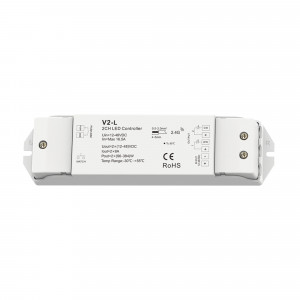

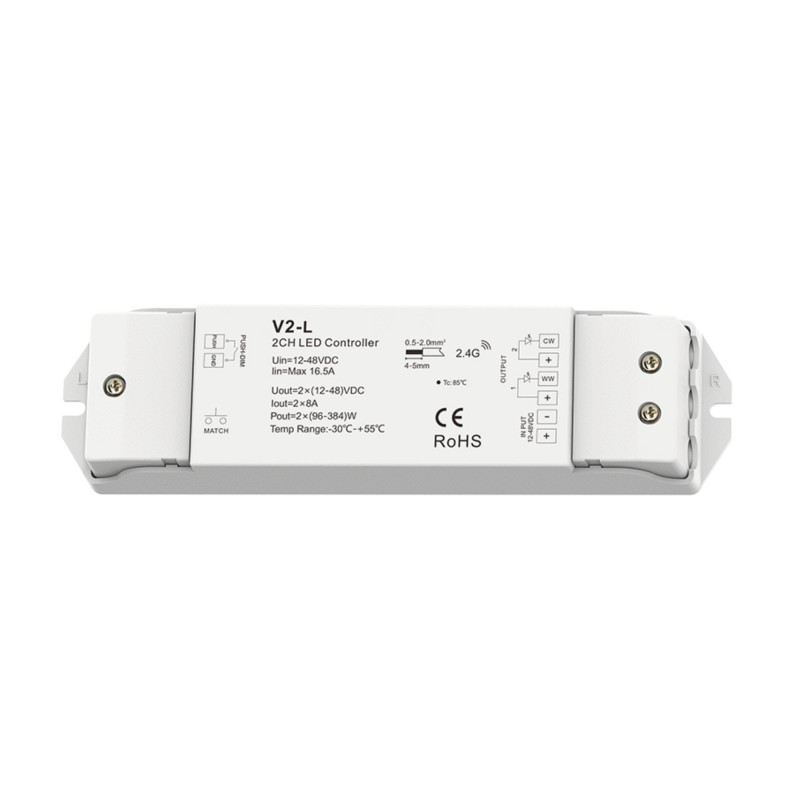

CCT Controller 12-48V DC - 16A (8A/channel) - RF 2.4G - PUSH dimmer - Skydance

CCT Controller/Dual White - 12-48V DC -16A - RF 2.4GHz - PUSH dimmer

This CCT controller is designed to give you maximum flexibility and convenience in light management, allowing you to adjust the desired colour temperature between warm white, neutral white and cool white.

It offers smooth, flicker-free dimming from 0-100% in 4096 levels.

It allows adjusting the lighting from anywhere in the room, thanks to its compatibility with RF 2.4G remote controls for one or multiple zones (see related products). Moreover, a single controller can accept up to 10 remote controls.

It supports a maximum load capacity of 16A (8A/channel).

To ensure safety and durability, it's equipped with protection against overheating, overload and short circuits.

Innovative functions:

• Auto-transmission: One controller can send signals to another one within 30 metres, extending the range of the remote control.
• Auto-synchronization: Several controllers within 30 metres can work together when controlled by the same remote control, ensuring uniform lighting.

It's important to consider that the communication distance between controllers can reach up to 30 metres, but the presence of metallic materials or strong signal sources such as WiFi routers or microwave ovens can affect the range. It's recommended that, for indoor applications, the distance between controllers should not exceed 15 metres to ensure optimal operation.

• "Light on/off fade time" function: offers the option to select a dimming time when turning the light on or off, with a smooth 3-second transition that provides a more pleasant and comfortable lighting experience.

PUSH dimming:

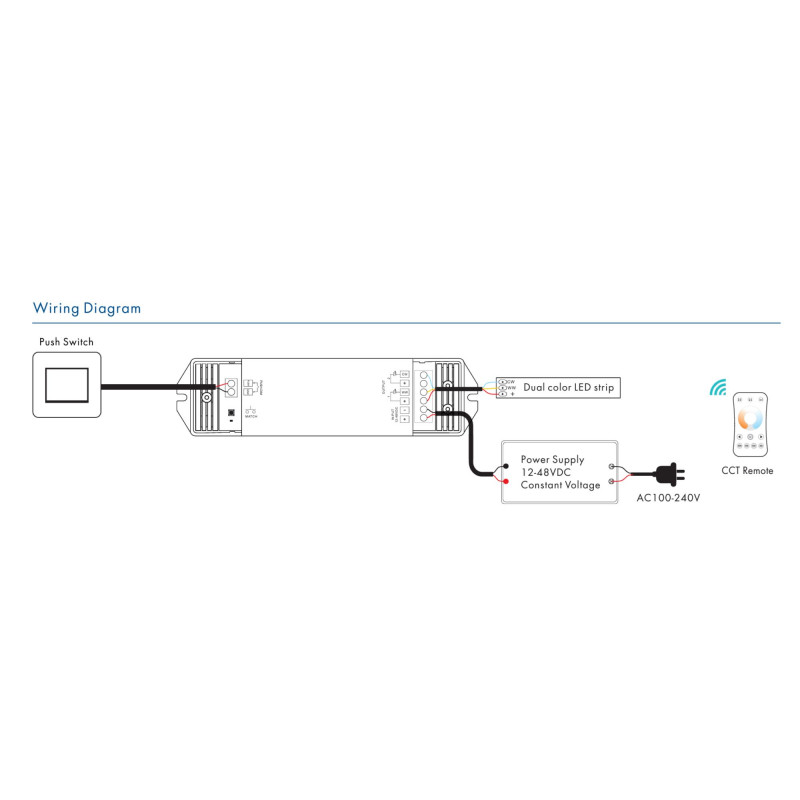

Can be connected to an external switch, for ON/OFF, hue change and 0-100% dimmer functions.

• Press and hold OFF (>1s): Adjusts the colour temperature UP/DOWN.
• Press and hold ON (>1s): Adjusts brightness UP/DOWN

If more than one controller is connected to the same push switch, press and hold ON for more than 10 seconds, then the system synchronizes and all lights in the group are dimmed to 100%. This means that no additional sync cable is needed in larger installations. We recommend that the number of controllers connected to a push switch should not exceed 25 units. The maximum cable length from the push button to the controller should not exceed 20 metres.
