TRIAC DC 12V 3.3A 40W IP40 dimmable power supply TRIAC DC 12V 3.3A 40W IP40

Name: Triac dimmable constant voltage driver CV 12V 3.3A IP42
Brand: Barcelona LED
SKU: PE-AL40TV12
Price: 29.95 EUR
Availability: InStock

SKU:PE-AL40TV12

€29.95 Tax included

Volume discounts

Quantity	Price
5	€29.05
10	€28.45
20	€27.85

In stock 64 units

Data sheet

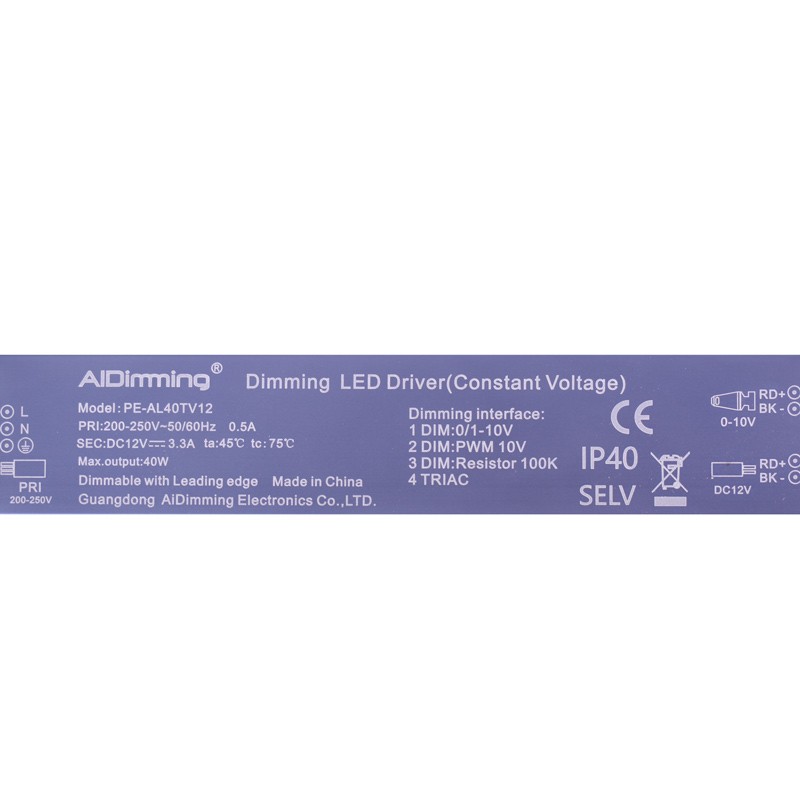

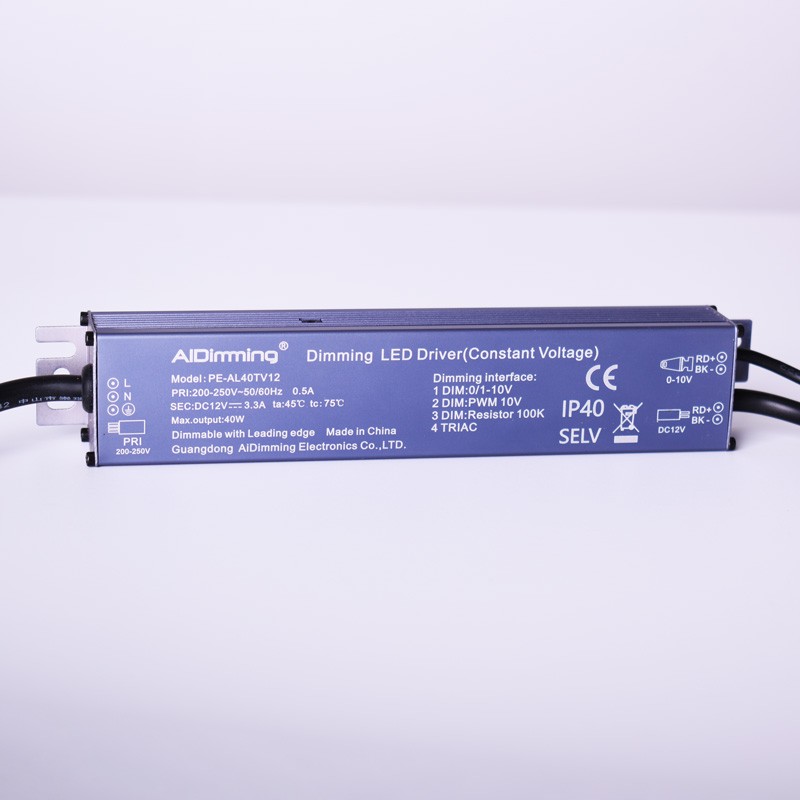

Driver Triac dimmable constant voltage 40W CV 12V 3.3A IP40

+Tin-plated cables
+Female and male connector 0-10V

✔ Operating voltage range: 12V DC.
✔ Maximum output current 3.3A.
✔ Power: 40W
✔ Attenuation range: 0~100%.
✔ 208x36x25mm

Driver ideal for dimming 12V LED strips with standard Triac dimmers.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: sales@barcelonaled.com

Driver Triac dimmable constant voltage 40W CV 12V 3.3A IP40

+Tin-plated cables
+Female and male connector 0-10V

✔ Operating voltage range: 12V DC.
✔ Maximum output current 3.3A.
✔ Power: 40W
✔ Attenuation range: 0~100%.
✔ 208x36x25mm

Driver ideal for dimming 12V LED strips with standard Triac dimmers.

Nominal Voltage (V)

200 - 250V AC

Maximum power (W)

40W

IP40

Dimensions (mm) Lxlxh

208x36x25mm

Frequency (Hz)

50 - 60

Dimmable

Yes

Output voltage (V)

12V

Material

Aluminium

Temperature range

ta:45°C tc:75°C

Certificates

CE
ROHS

Attachments

Product data sheet
