Sunricher power supply for DALI 100-240V AC / 16V DC 250mA

SR-2400P DALI source

The SR-2400P is a universal DALI starter power supply designed with compact size and wide input voltage range 100-240V/AC. Output voltage of 16V-DC.

It has an output current of 250mA to power the DALI bus. DALI power supply features high reliability. Over current protection.

Specially designed for evenly dimmable lighting, no flicker, no dimming jumps and no noise.

Compatible with Tridonic software. App for users to control their individual luminaires via wifi network.

Compatiblewith SR-2300TS-DIM; SR-2300TS-CCT; SR-2301TS-RGB.

Main features of DALI relay module

• DALI power supply with 100-240V-AC input and 250mA output current.
• For powering the DALI bus.
• Compact size.
• High reliability and stability.
• Over current protection.
• DALI certified.
• TUV CE certified.

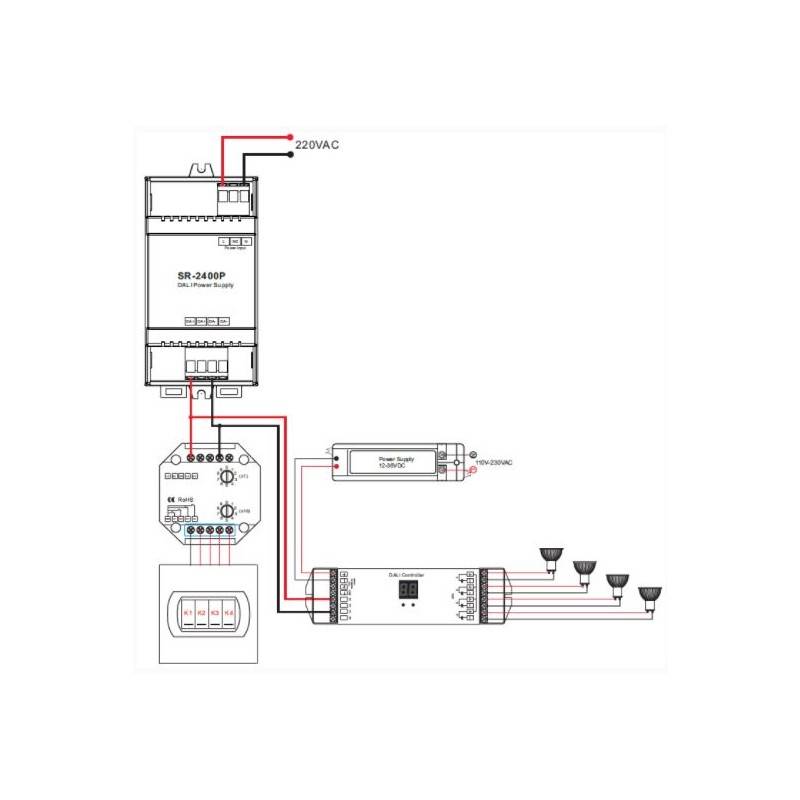

Wiring connection diagram
