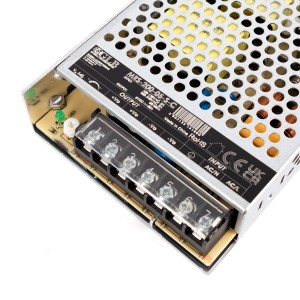

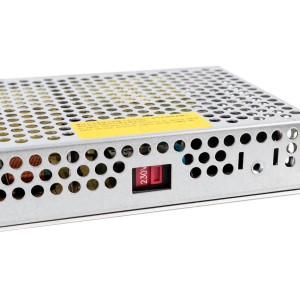

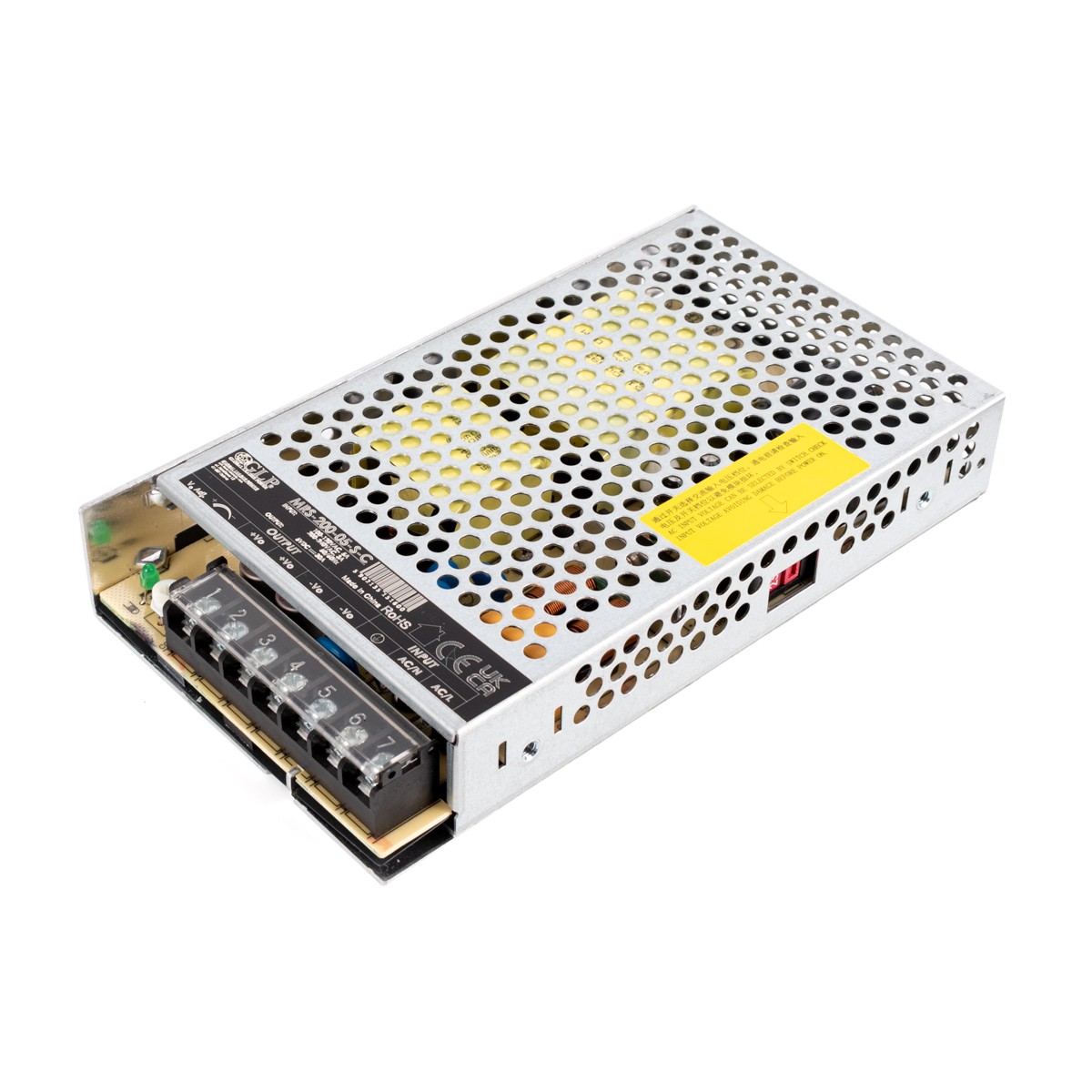

Switching power supply 5V 200W IP20

Switching power supply 5V - 200W - IP20

SKU:MRS-200-5-S-C
Has superado el límite de unidades
In stock 123 unidades

High efficiency and long life200W switching power supply, suitable for use with all types of LED luminaires operating at 5V DC.

It has short-circuit, overload and overvoltage protection.

Switching power supply with 200 W of power, to supply any type of product with a working voltage of 5V and a maximum of 30A.

Its perforated metal housing allows efficient heat dissipation, thus preventing the product from overheating.

It is in compliance with RoHS and CE international electrical safety standards.

It includes various application fields, such as: industrial automation machinery, industrial control systems, mechanical and electrical equipment, instruments, electronic equipment or appliances and household appliances.

Main product features:

  • Rated power: 200W
  • Input voltage: 100-240V AC
  • Maximum output current: 30A
  • Output voltage: 5V DC
  • Indoor use: IP20

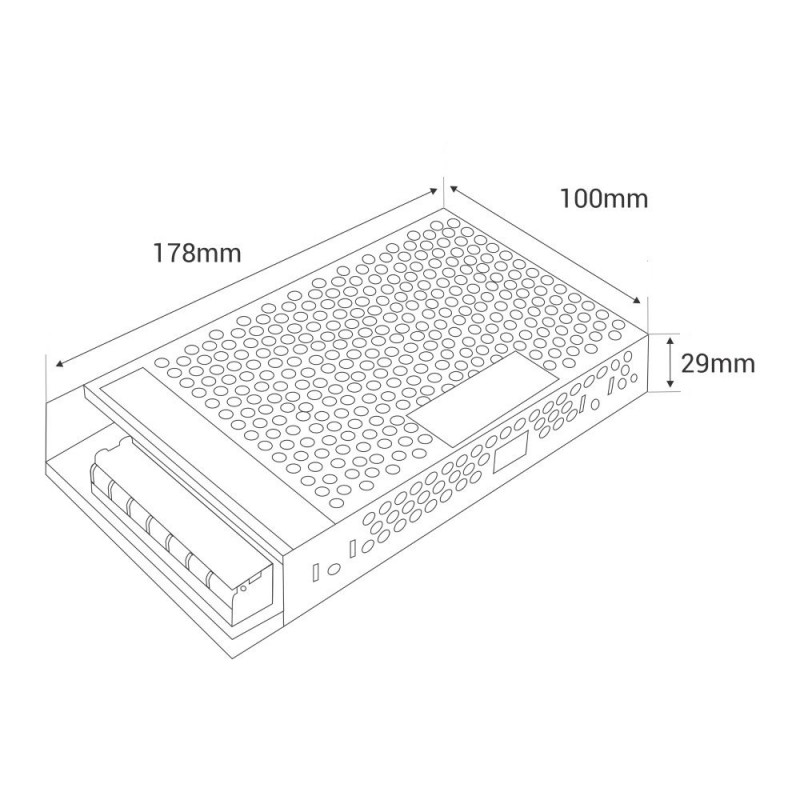

  • Dimensions: 178x100x29mm

Nominal Voltage (V)
100 - 240 V/AC
Power (W)
200
IP
IP20
Dimensions (mm) Lxlxh
178x100x29
Frequency (Hz)
50 - 60
Output voltage (V)
5
Material
Aluminium
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
30
