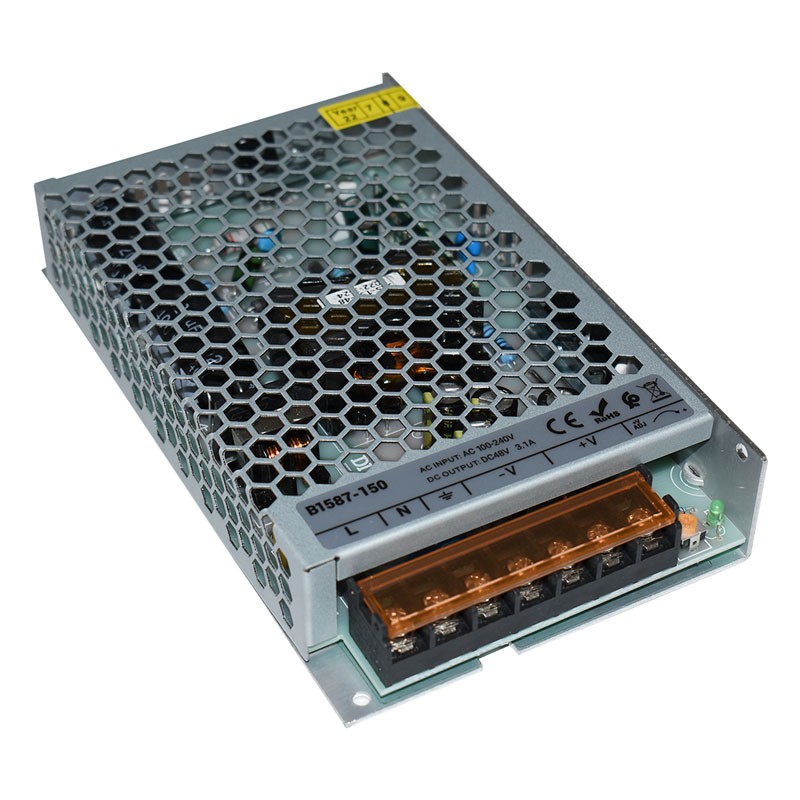

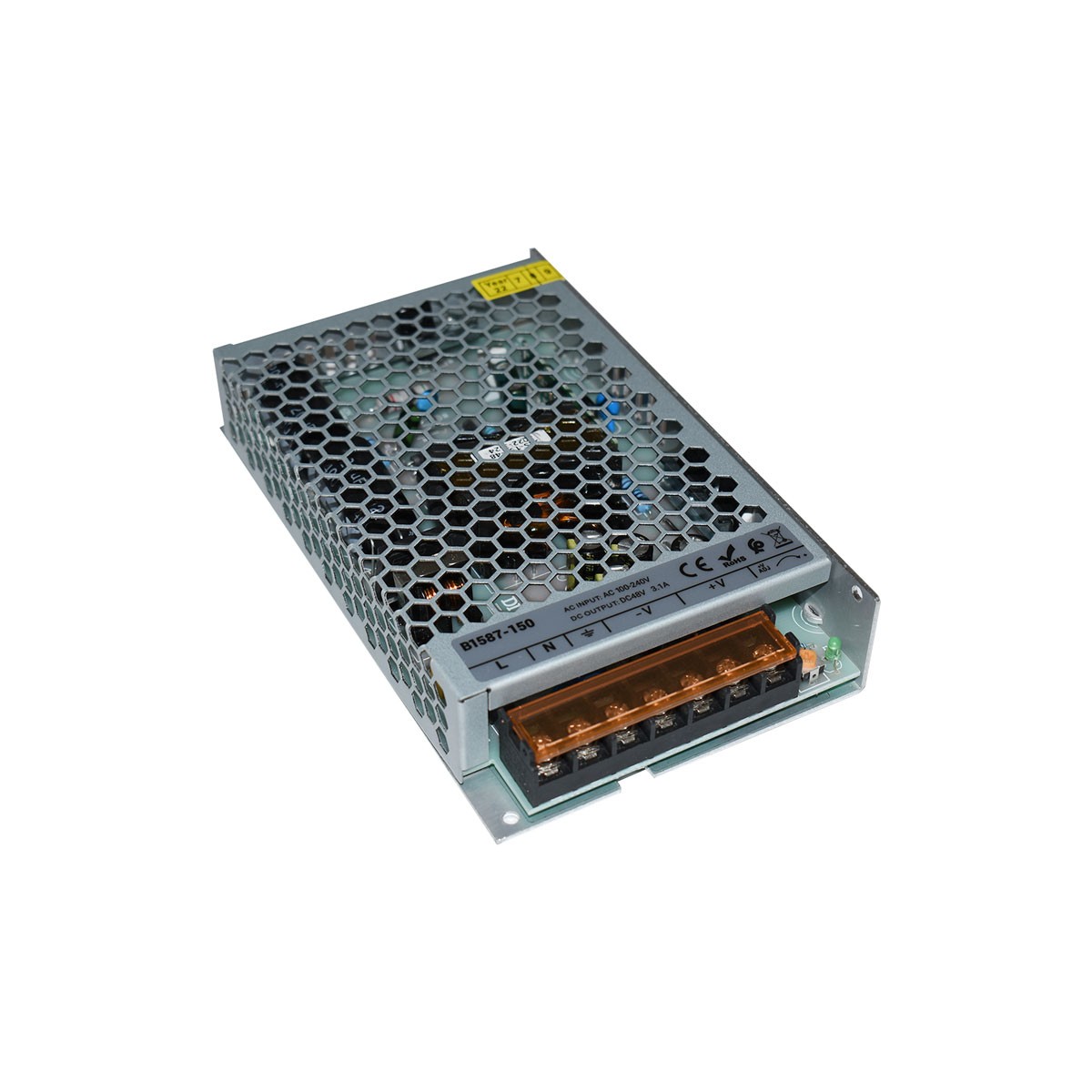

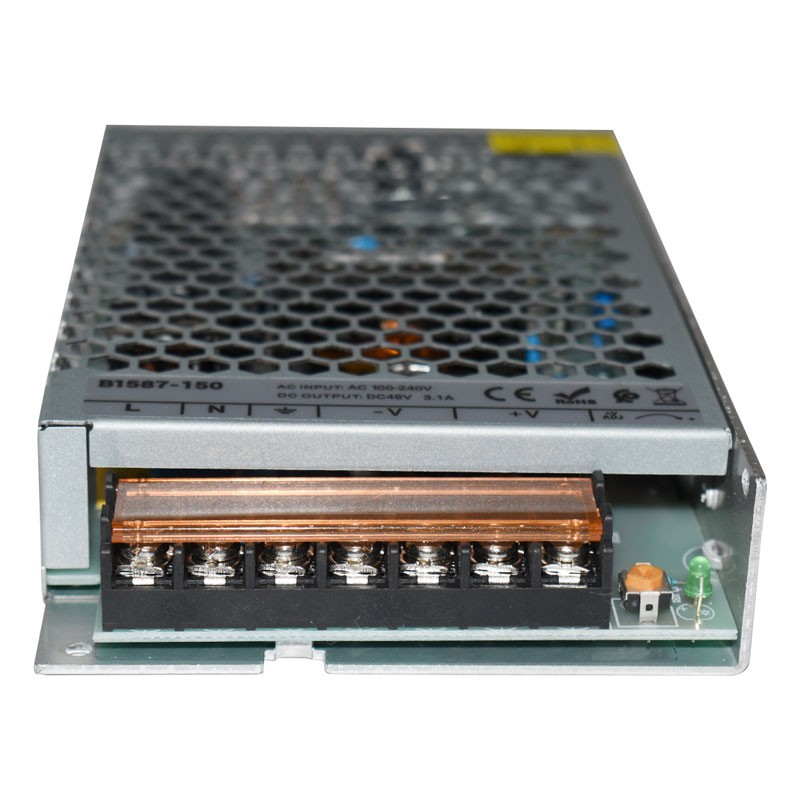

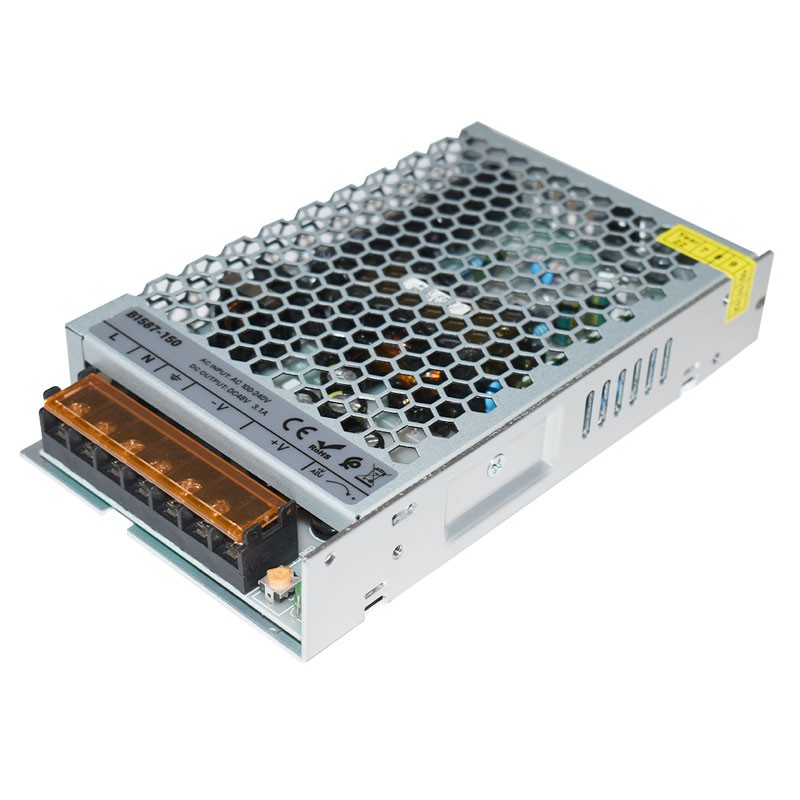

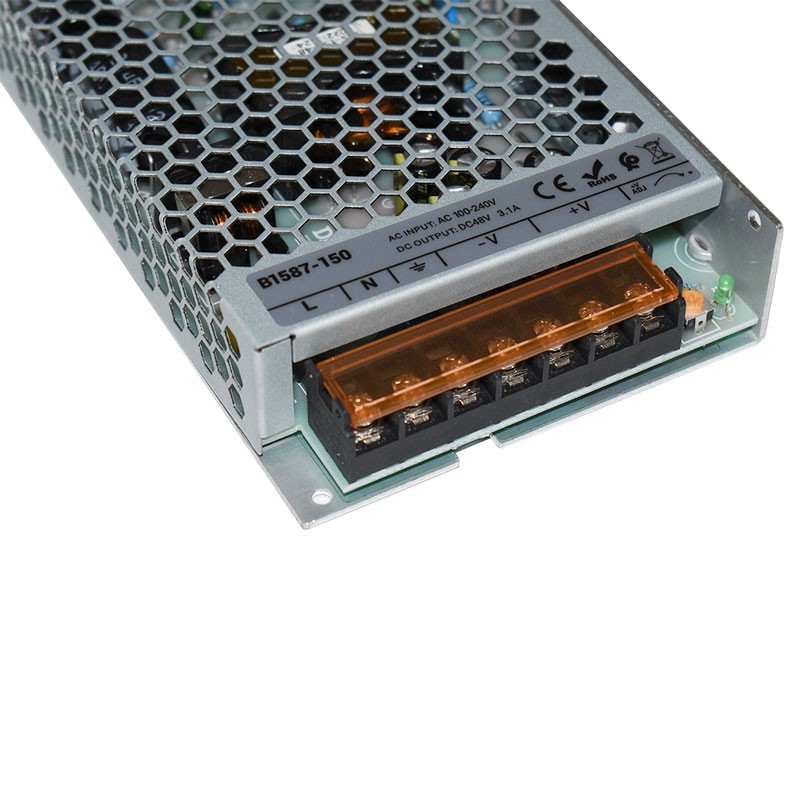

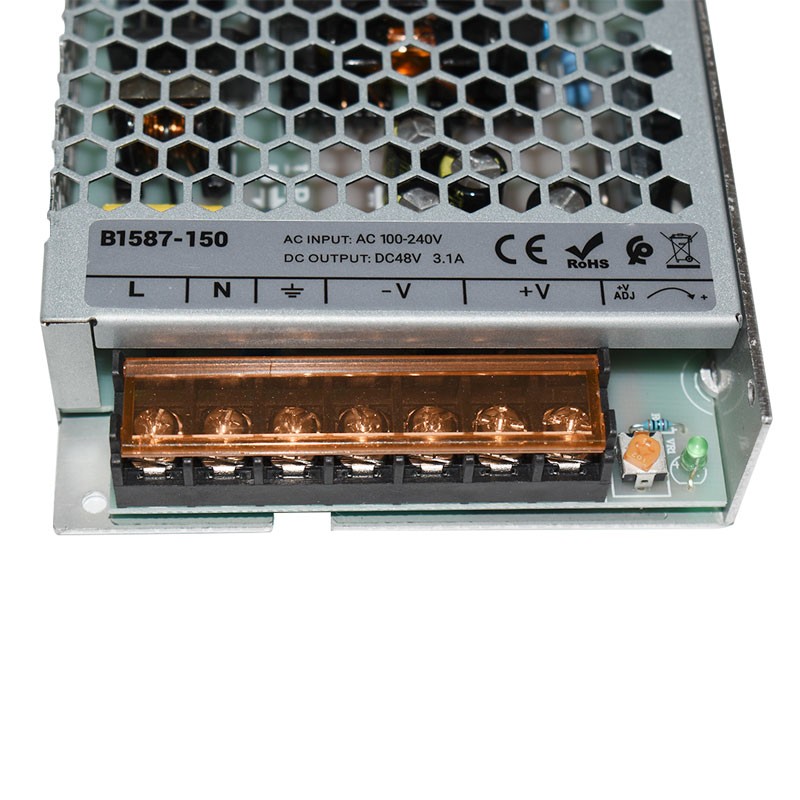

Switching power supply 48V - 150W

SKU:B1587-150
Has superado el límite de unidades
In stock 40 unidades

High efficiency and long life 150 W switching power supply, suitable for use with all types of LED luminaires operating at 48V-DC.

It has short-circuit, overload and overvoltage protection.

Switching power supply with 150 W of power, to supply any type of product with an operating voltage of 48 V and a maximum of 3.1 A .

Its perforated metal housing allows efficient heat dissipation, thus preventing the product from overheating.

It is in compliance with international RoHS and CE electrical safety standards.

It includes various application fields, such as: industrial automation machinery, industrial control systems, mechanical and electrical equipment, instruments, electronic equipment or appliances and household appliances.

Main product features:

  • Rated power: 150W
  • Input voltage: 100-240V-AC
  • Input current: < 3.1A
  • Output voltage: 48V DC
  • Indoor use: IP20
  • Dimensions: 163 x 96 x 30 mm

Nominal Voltage (V)
100 - 240 V/AC
Power (W)
150
IP
IP20
Output voltage (V)
48V
Use Outdoor
No
Temperature range
-20°C ~ +45°C
Frequency of use
Normal
Certificates
CE
ROHS
Warranty
3 years
Maximum intensity (A)
3.1
Barcelona LED

Questions

P: Pregunta: Good morning,
with the power supply B1587-150, it is possible to power two separate 48V magnetic rails. I see four DC voltage connections.
Thank you very much.
R: Respuesta: Hi Yes you can power the two separate tracks, but as long as the total consumption of the spotlights of both tracks is not more than 80% of the power supply, I mean within135-140w. Each track will have to go with this connector
Regards

Barcelona LED: Raul| el 07 de March de 2024
