DALI DT6 dimmable power supply - 24V DC - 6,25A - 150W
DALI DT6 dimmable power supply - 24V DC - 6,25A - 150W

DALI DT6 dimmable power supply - 24V DC - 6.25A - 150W

SKU:PE-IL150DV24
Has superado el límite de unidades
In stock 151 unidades

24V DALI Dimmable constant voltage power supply. Compatible with LED strips and LED luminaires of 24V and max 6.25A.

It allows to regulate the luminous intensity through DALI protocol, providing great flexibility and efficiency in lighting control.

It has a protection system against overloads, short circuits and overheating.

The DALI 24V 150W Dimmable Power Supply is a device designed specifically for LED lighting systems. It's capable of providing a constant voltage of 24V and power up to 150W.

It uses DALI-2 DT6 protocol, which provides uniform light regulation without jumps or flickering.

It is a high quality and reliable device and an excellent choice for LED lighting systems that require optimal intensity control and energy efficiency.

Product features:

  • Maximum power: 150W
  • Input voltage: 100-250V AC
  • Output current: < 6.25A
  • DALI-2 DT6 dimming
  • Power factor: >0.95
  • Output voltage: 24V DC
  • IP42

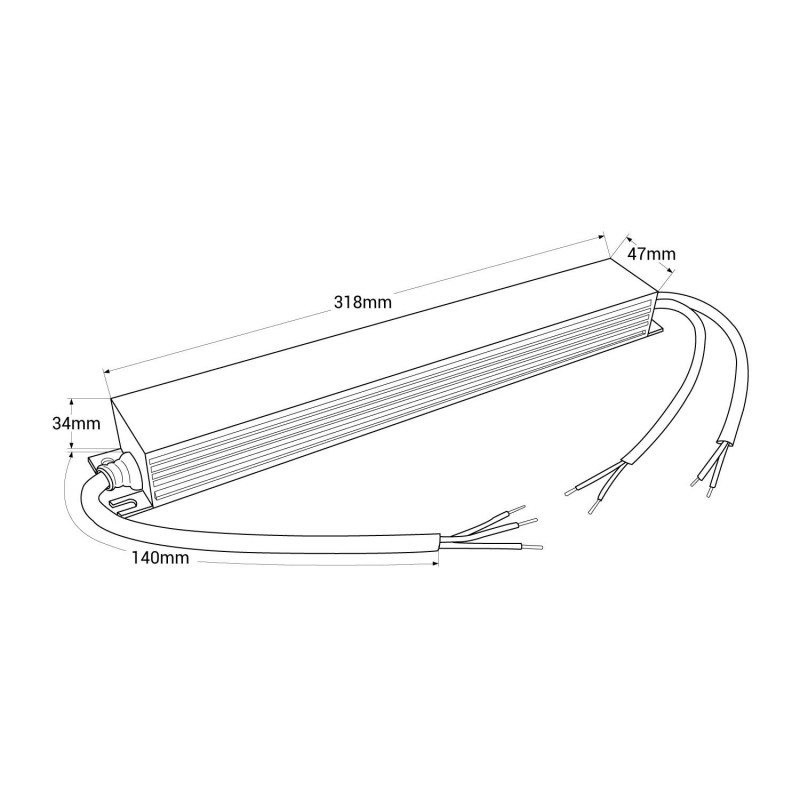

  • Dimensions: 318 X 47 X 34 mm
Nominal Voltage (V)
100 - 250
Power (W)
150
IP
IP42
Dimensions (mm) Lxlxh
318 X 47 X 34
Dimmable
Yes
Control system
DALI
Output voltage (V)
24V
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
6.25
Barcelona LED
