DALI DT6 dimmable power supply - 24V DC - 4.17A - 100W
DALI DT6 dimmable power supply - 24V DC - 4.17A - 100W
DALI DT6 dimmable power supply - 24V DC - 4.17A - 100W

DALI DT6 dimmable power supply - 24V DC - 4.17A - 100W

SKU:PE-IL100DV24
Has superado el límite de unidades
In stock 27 unidades

DALI Dimmable 24V constant voltage power supply. Compatible with LED strips and LED luminaires of 24V and max. 4.17A.

It allows to regulate the luminous intensity through DALI protocol, providing great flexibility and efficiency in lighting control.

It has a protection system against overloads, short circuits and overheating.

The 24V 100W DALI Dimmable Power Supply is a power supply device designed specifically for LED lighting systems. It's capable of providing a constant voltage of 24V and power up to 100W.

It uses DALI-2 DT6 protocol, which provides uniform light regulation without jumps or flickering.

It's a high quality and reliable device and an excellent choice for LED lighting systems that require optimal intensity control and energy efficiency.

Product features:

  • Maximum power: 100W
  • Input voltage: 100-250V AC
  • Output current: < 4.17A
  • DALI-2 DT6 dimming
  • Power factor: >0.95
  • Output voltage: 24V DC
  • IP42

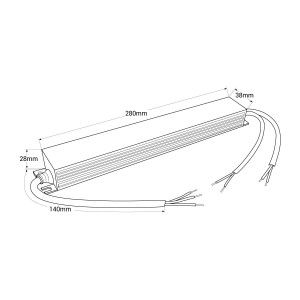

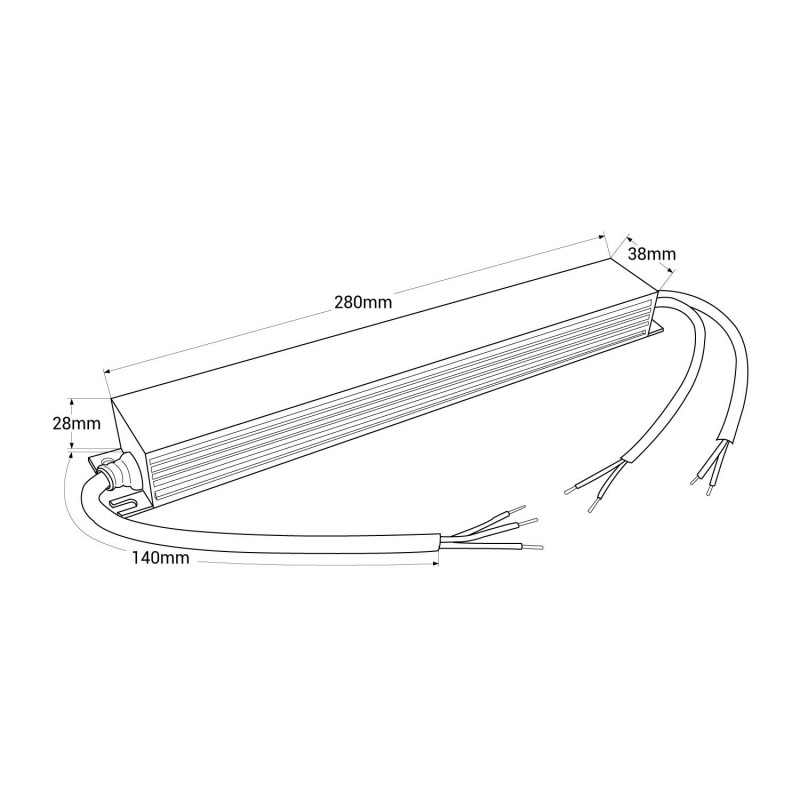

  • Dimensions: 280 x 38 x 28 mm
Nominal Voltage (V)
100 - 250
Power (W)
100
IP
IP42
Dimensions (mm) Lxlxh
280 x 38 x 28
Power factor (cosφ)
0.95
Control system
DALI
Output voltage (V)
24V
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
4.17
