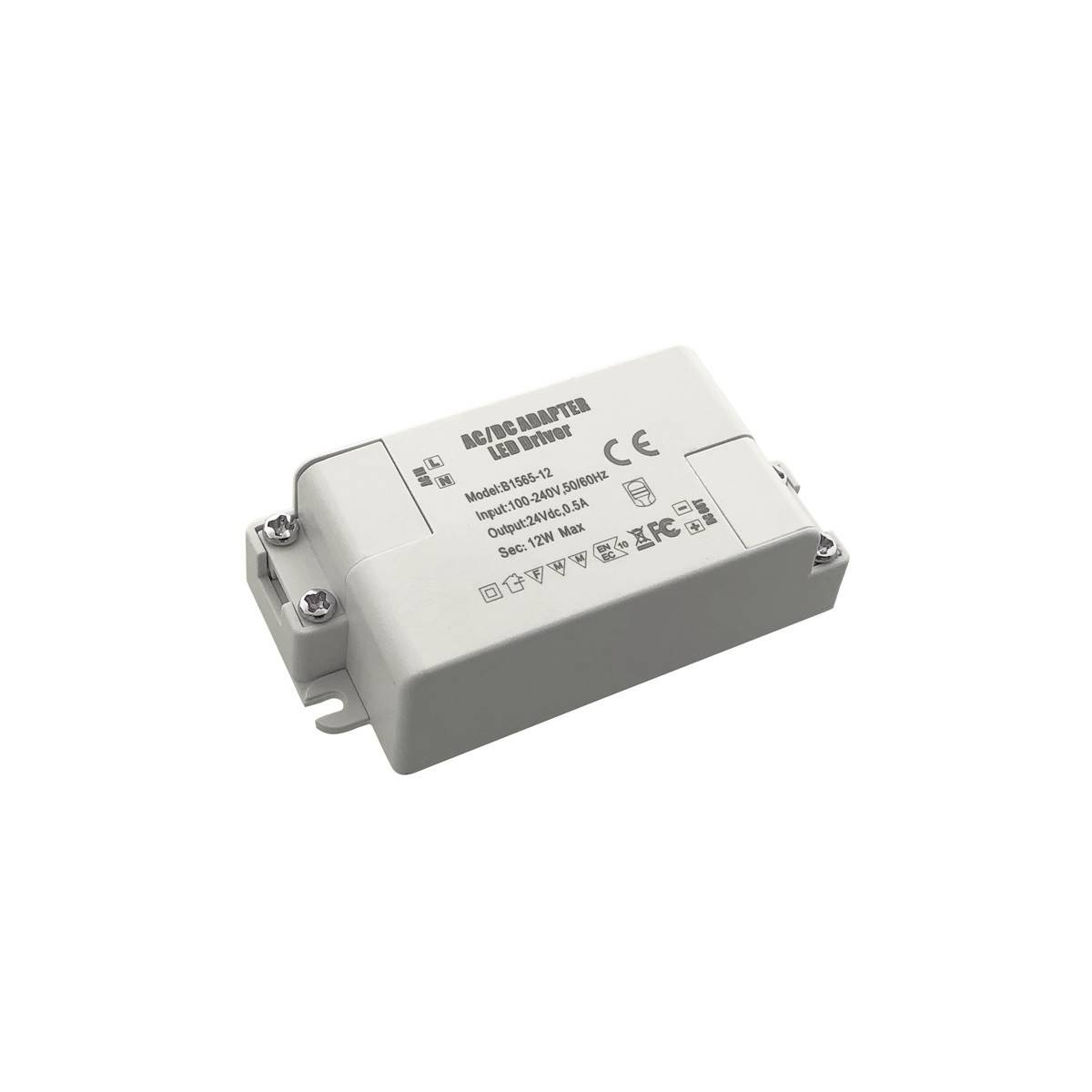

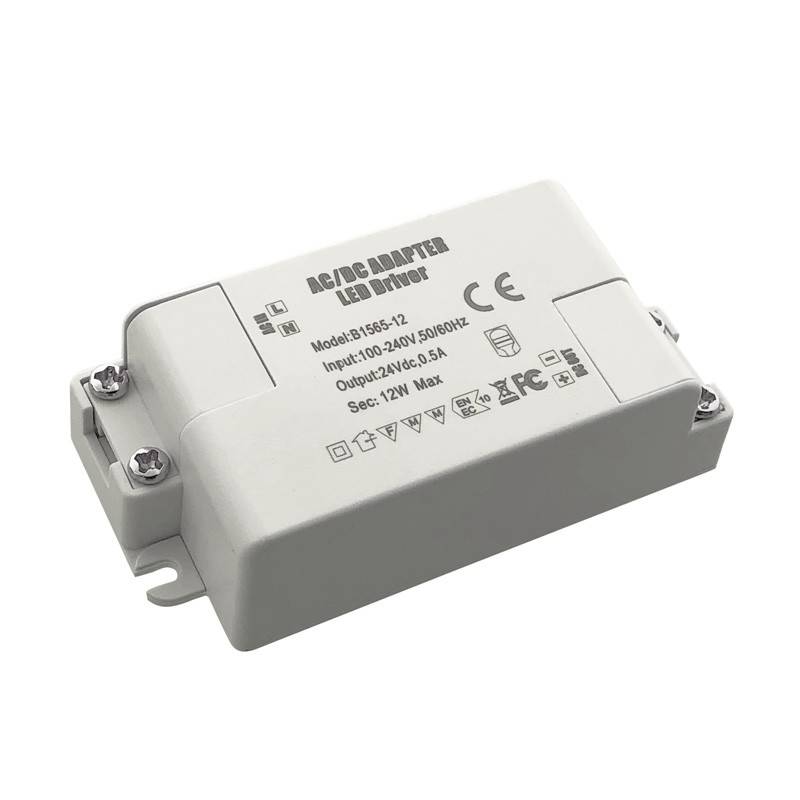

Power supply 24V DC 12W 0.5A 100-240V

POWER SUPPLY or driver 24V-DC 12W

Compact sizepower supply with 12W nominal power. Input voltage of 100-240V and an output of 0.5A at 24V DC. Typically used for LED strips with a voltage of 24V. With high heat dissipation qualities, overheating protection, and being resistant to dust, moisture, overvoltage and short circuit. It compensates the voltage drop between the power supply and the consumption point. Power supplies are protected against overload and overvoltage.

Applications for 24V power supplies

For use of all types of 24V DC luminaires in catering, office, domestic, commercial, household, etc.

Power supply of 24V DC LED strips, as well as any other element with 24V-DC working voltage, without exceeding the maximum power of 12W of the power supply.

Characteristics of the power supply

• Power rating: 12W.
• Input voltage: 100-240V-AC.
• Output current: 0.5A.
• Power factor: >0.6.
• Output voltage: 24 V-DC.
• IP protection: IP20.
• Maximum ambient temperature 45ºC.
• Very narrow housing: 23mm.
• Dimensions: 75x32x23mm.
