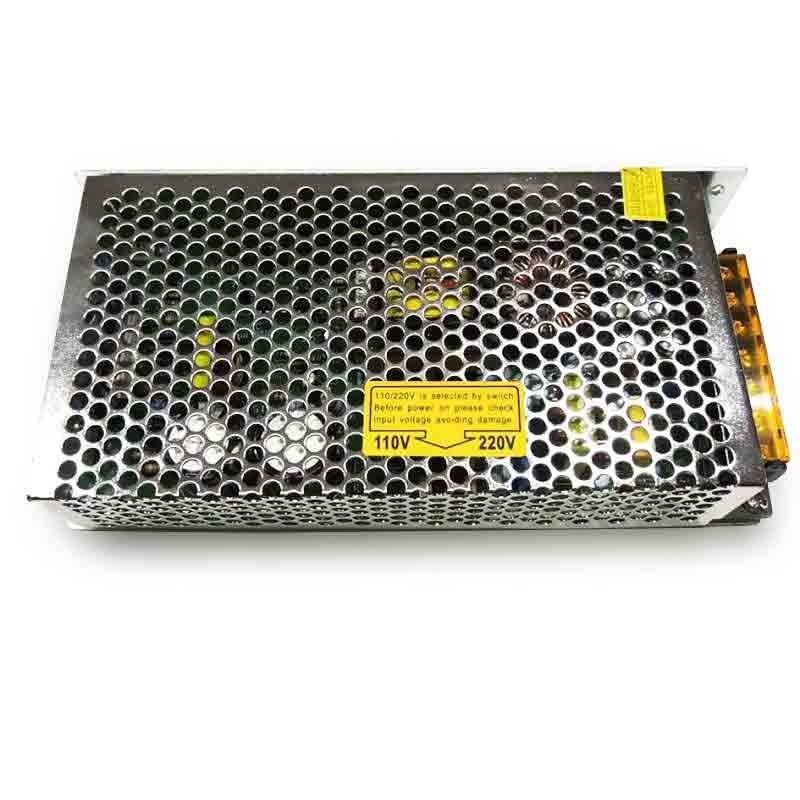

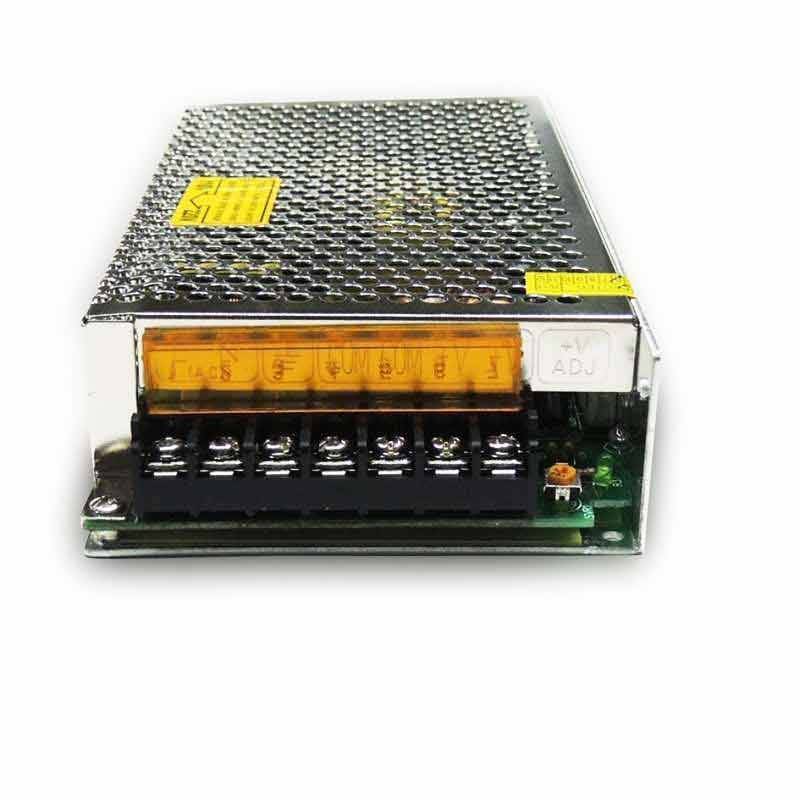

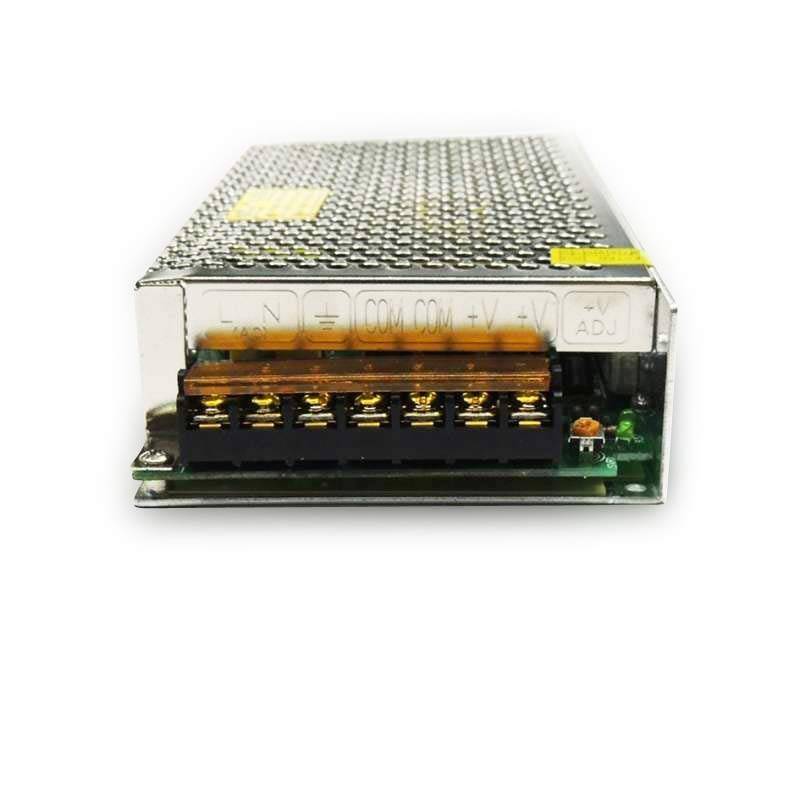

Switching power supply 12V 120W

This 12V power supply is ideal for LED strips up to 120W.

The 120W switching power supply has a switch to select the input voltage 110-AC or 230V-AC and a 12V-DC 5A output, the output voltage can be adjusted within ±10% and, by compensating for the voltage drop between the AC power supply and the point of consumption, the power supply can be moved away from the point of consumption. The A.F. are protected against overloads and overvoltages, and their casing is made of perforated sheet metal. This allows cooling by natural air convection. Their external dimensions are 199x98x38mm (WxHxHxD), with a watertightness degree of IP20.

Applications:

Its main function is to power 12V-DC led strips, as well as any other element with 12V-DC working voltage, as long as it does not exceed the maximum power of the source.

Suitable for all types of uses: domestic, commercial, office, catering and hospitality, etc.

* Technical specifications:

º Output voltage: 12V DC

º Error: ± 1%.

º Output amperage: 0 ~ 8.5A

º Wave and noise: 100mp-p

º Output power: 120W DC

º Efficiency: 81% º Voltage range: 10.8V DC

º Voltage range: 10.8 ~ 13.2V
Input range: 85 ~ 180V ~ 132VAC 264VAC 63Hz ~ 47 255 ~ 370VDC

Overload protection: 105% ~ 150% (protection type: reduce input power reset: auto recover)

Stability 13.Inlet stability: ± 0.5%.

Temperature Coefficient:0-50ºC

º Setup, place, timeout: 100 ms 200 ms 30 ms

Working temperature: -10 ~ +60°C

º Temperature limits: -20 ~ +85

º Dimensions: 199 * 98 * 38

º Weight: 0.65kgs
