DALI DT6 dimmable power supply - 12V DC - 8.3A - 100W
DALI DT6 dimmable power supply - 12V DC - 8.3A - 100W
DALI DT6 dimmable power supply - 12V DC - 8.3A - 100W

DALI DT6 dimmable power supply - 12V DC - 8.3A - 100W

SKU:PE-IL100DV12
Has superado el límite de unidades
In stock 36 unidades

12V DALI Dimmable constant voltage power supply. Compatible with 12V LED strips and LED luminaires with a maximum of 8.3A.

It allows to regulate the luminous intensity through DALI protocol, providing great flexibility and efficiency in lighting control.

It has a protection system against overloads, short circuits and overheating.

The 12V 100W DALI Dimmable Power Supply is a device designed specifically for LED lighting systems. It's capable of providing a constant voltage of 12V and power up to 100W.

It uses DALI-2 DT6 protocol, which provides uniform dimming without jumping or flickering.

It's a high quality and reliable device and an excellent choice for LED lighting systems that require optimal intensity control and energy efficiency.

Product features:

  • Maximum power: 100W
  • Input voltage: 100-250V AC
  • Output current: < 8.3A
  • DALI-2 DT6 dimming
  • Power factor: >0.95
  • Output voltage: 12V DC
  • IP42

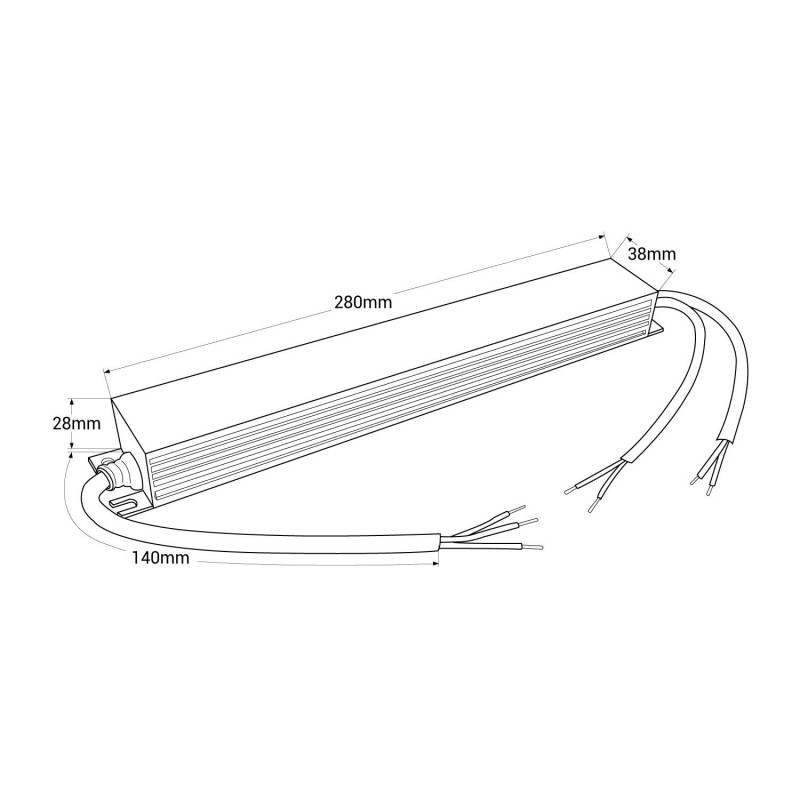

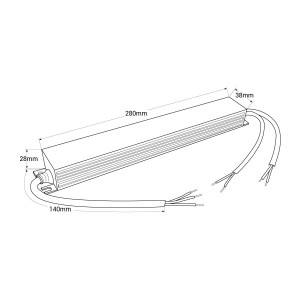

  • Dimensions: 280 x 38 x 28 mm
Nominal Voltage (V)
100 - 250
Power (W)
100
IP
IP42
Dimensions (mm) Lxlxh
280 X 38 X 28
Dimmable
Yes
Power factor (cosφ)
0.95
Control system
DALI
Output voltage (V)
12V
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
8.3
