New

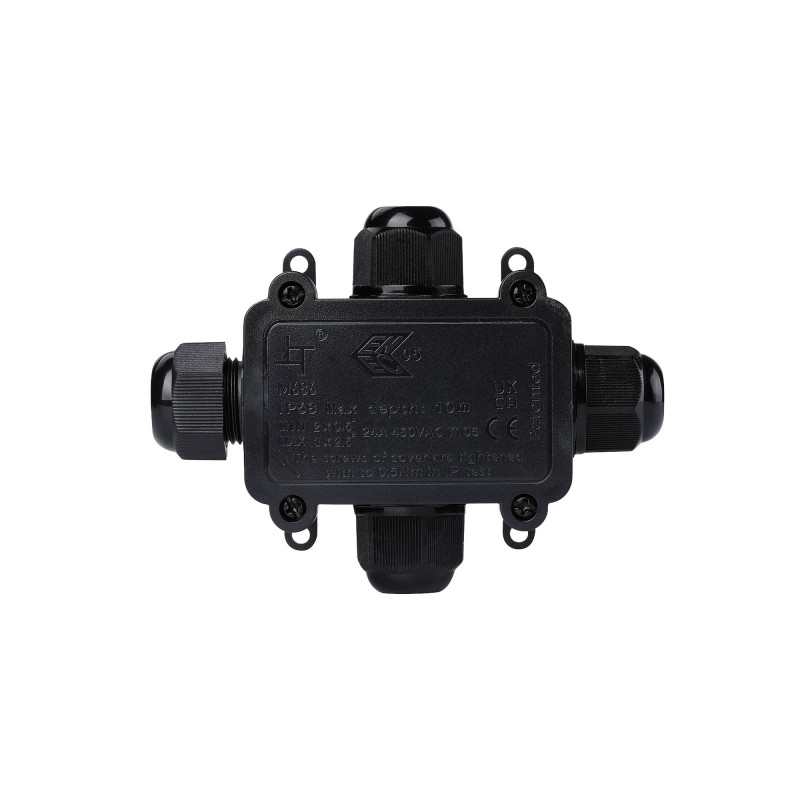

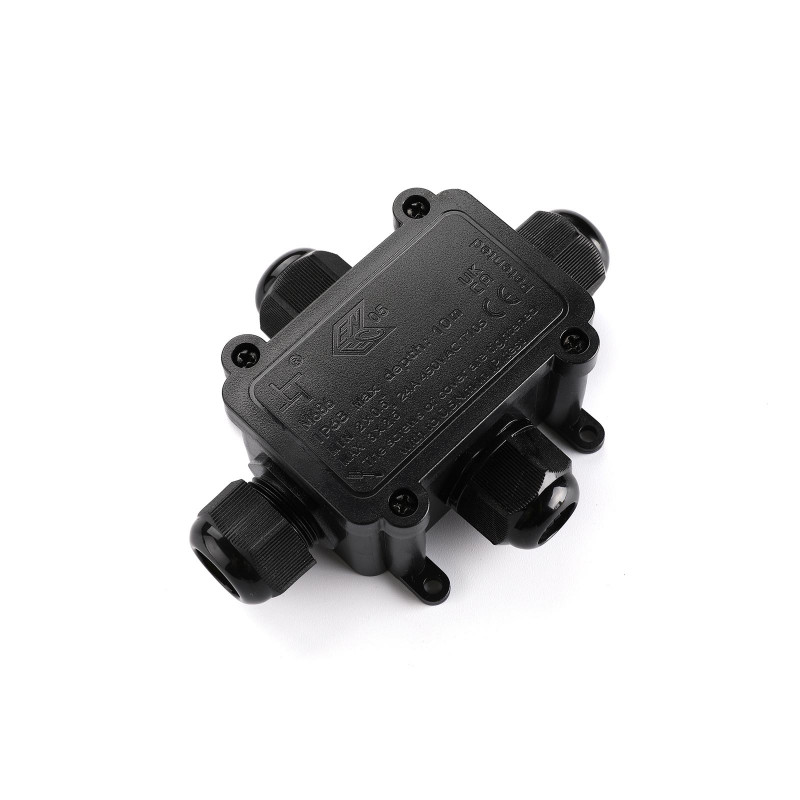

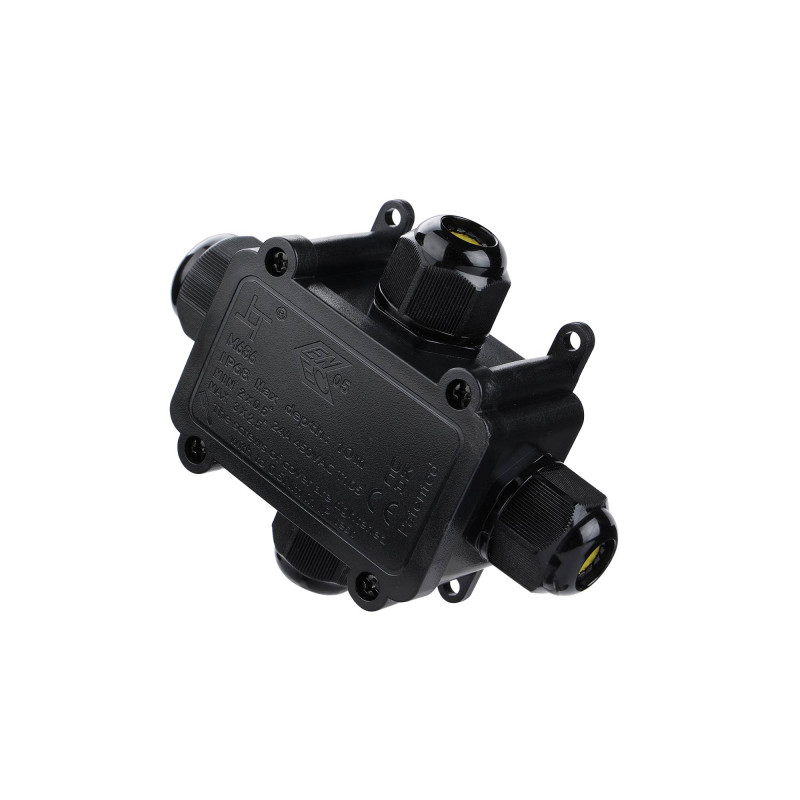

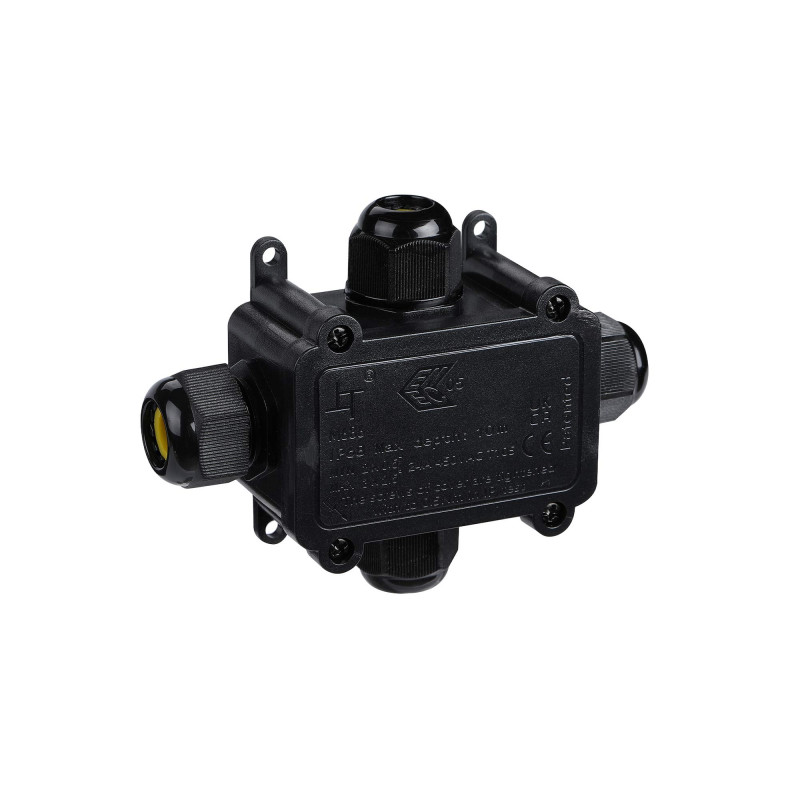

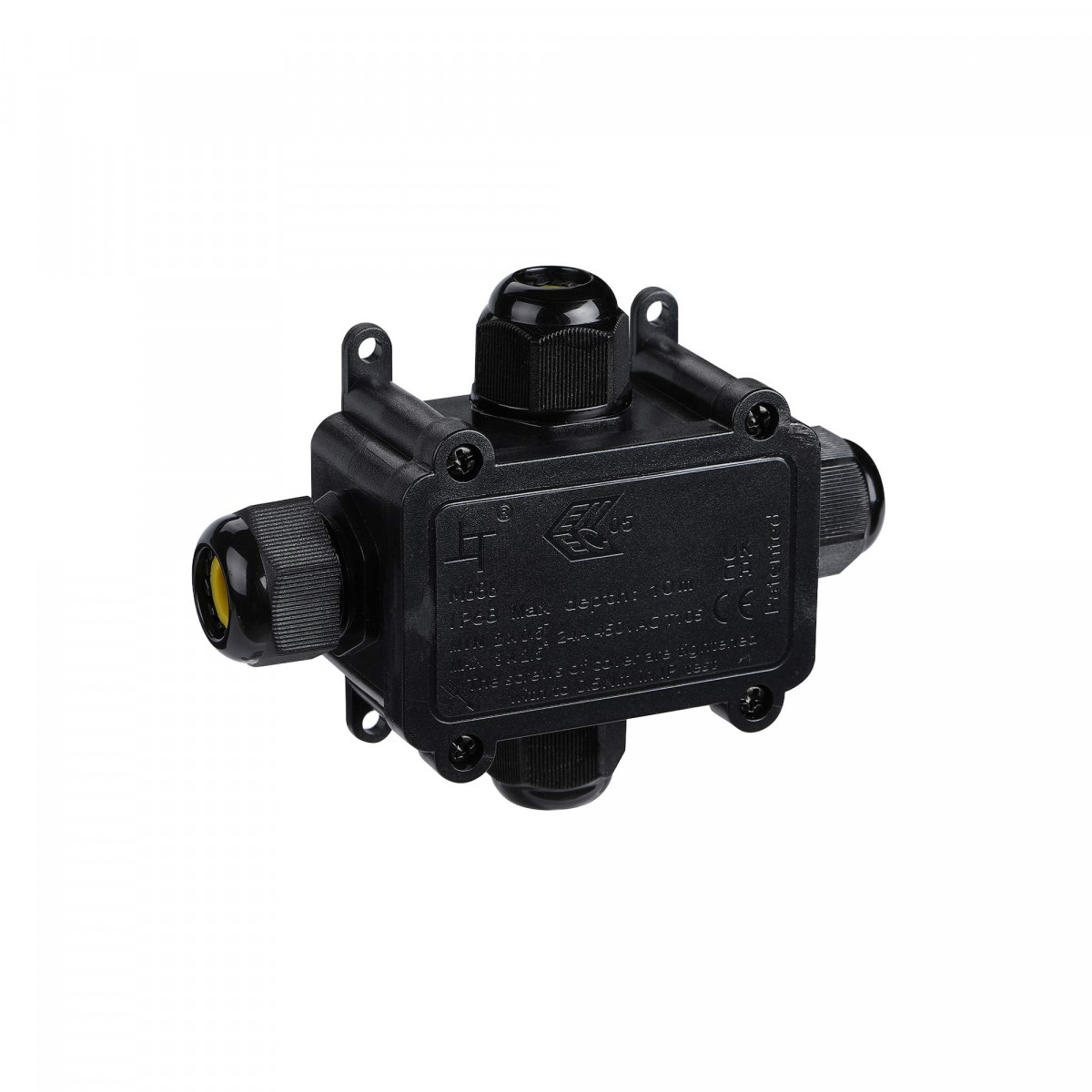

Waterproof connection box in X - M20 - 4P - IP68 - 0.5-2.5mm² - 24A - T105

Name: Waterproof junction box in X - M20 - 4P - IP68 - 0.5-2.5mm² - 24A - T105
Brand: Barcelona LED
SKU: M686-4(A)-4P
Price: 3.49 EUR
Availability: InStock

SKU:M686-4(A)-4P

€3.49 Tax included

In stock 500 units

Data sheet

IP68 waterproof X-shaped junction box, perfect for safe electrical connections in demanding environments.

Supports 4-8 mm and 6-11 mm outer diameter cables, compatible with conductors from 0.5 to 2.5 mm². Supports up to 24A and 450V AC.

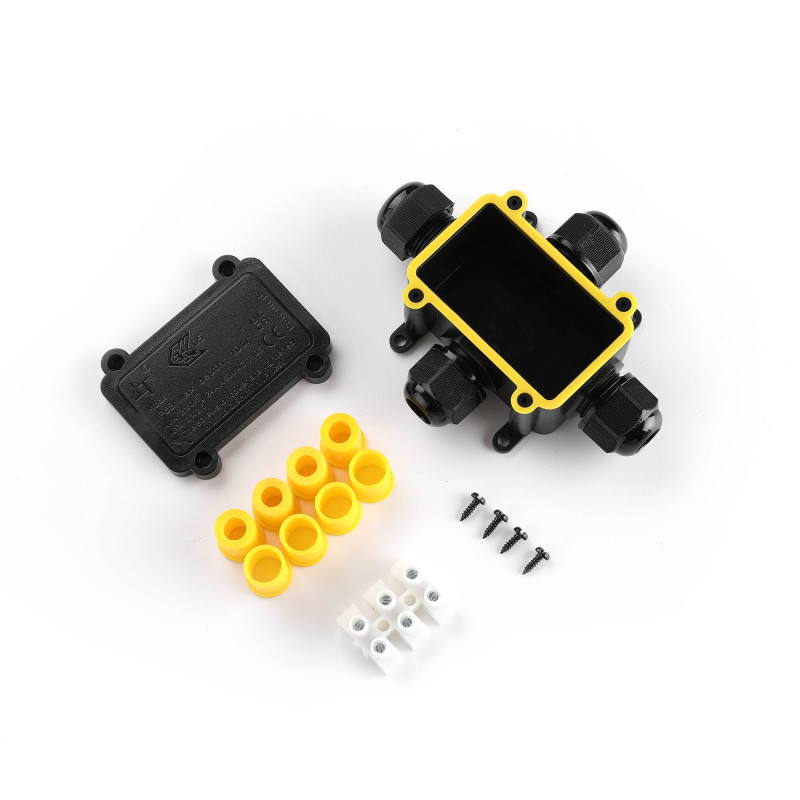

Includes 4 connection terminals (4 poles) and easy locking system.

Submersible up to 10 meters.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: sales@barcelonaled.com

M20 X-shaped junction box - Strength and Durability

This waterproof junction box is designed to ensure safe splicing in demanding environments. Ideal for outdoor use, it is submersible and resistant to dust and moisture.

Fully waterproof: IP68 protection rating. Suitable for challenging outdoor environments, industrial environments and swimming pools. Submersible up to 10 meters.
High capacity: Supports up to 24A and 450V AC, with T105 thermal certification for safety and durability.
Flexible compatibility: Supports 4-8 mm and 6-11 mm outer diameter cables, for 0.5-2.5 mm² conductors.

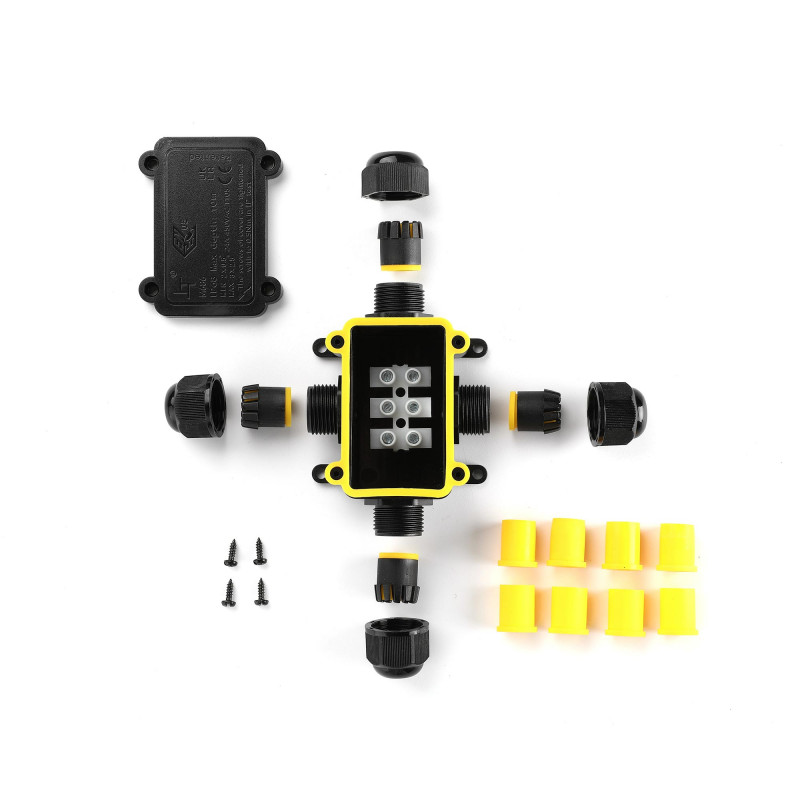

Easy installation: 4-pole interior terminals (phase, neutral, ground and additional line) with quick connector and screws.
Compact and functional design: Locking system for easy assembly and disassembly.
Improved durability: Sealing can be reinforced with silicone or other similar materials.
