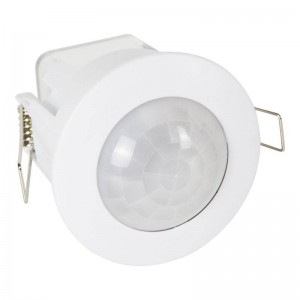

Recessed motion sensor 360º IP20
SKU:S1120
€8.95
Tax included
360º recessed motion sensor
It uses a 360º PIR motion sensor capable of sensing the energy radiated by bodies in a range of up to 6 meters. One of the great features of this sensor is that it is able to identify day and night light, thus utilizing the energy of your LED products more effectively.
The flush mount PIR motion sensor
Compatible with most of our LED products and can be adjusted to work only at night or all the time to suit the needs of each place and circumstance.
- VOLTAGE: 230V-AC - 1200W (incandescent); 300W (LED)
- LIGHT SENSITIVITY: <3-2000 LUX
- INSTALLATION HEIGHT: 2.2-4M
- DETECTION ANGLE: 360º
- DIAMETER: 75.50MM
- HEIGHT: 74.50MM
- WEIGHT: 150G
Nominal Voltage (V)
230
IP
IP20
Dimensions (mm) Lxlxh
Ø76x76
Frequency (Hz)
50 - 60
Detection angle (º)
360
Detection range (m)
0-6
Connectivity
PIR
Mounting
Recessed
Orientable
No
Weight (g)
150
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
