PIR motion sensor 12-36V-DC 8A 60º IP20
PIR motion sensor 12-36V-DC for LED strips and low voltage bulbs.
PIR motion sensor and presence detector for connecting LED strips, low voltage bulbs and luminaires up to 36V. With a maximum current of 8A and load between 96W and 288W it is the perfect solution for efficient control of LED strips and bulbs up to 36V.

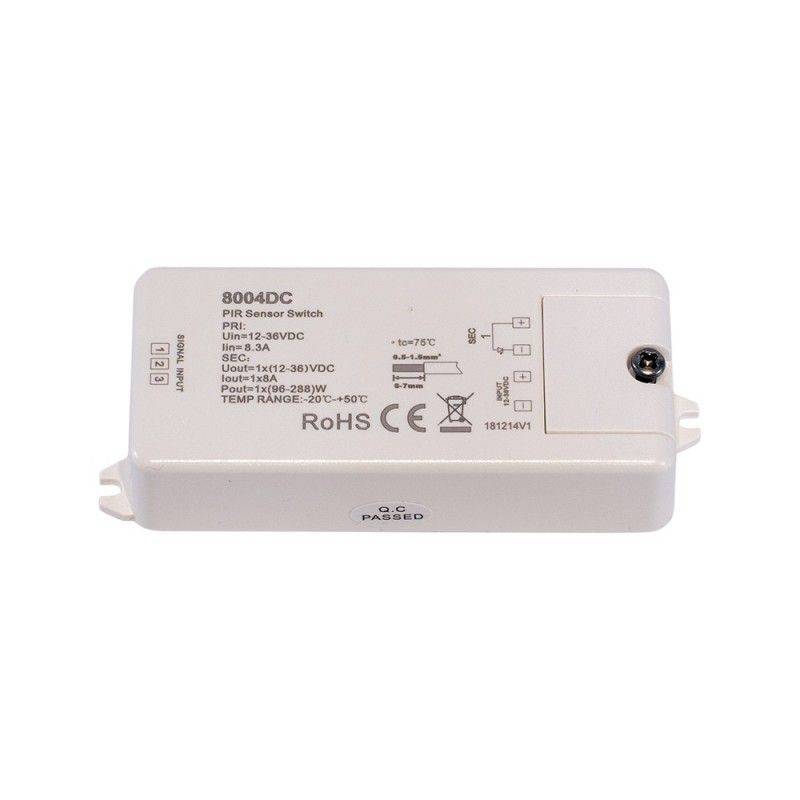

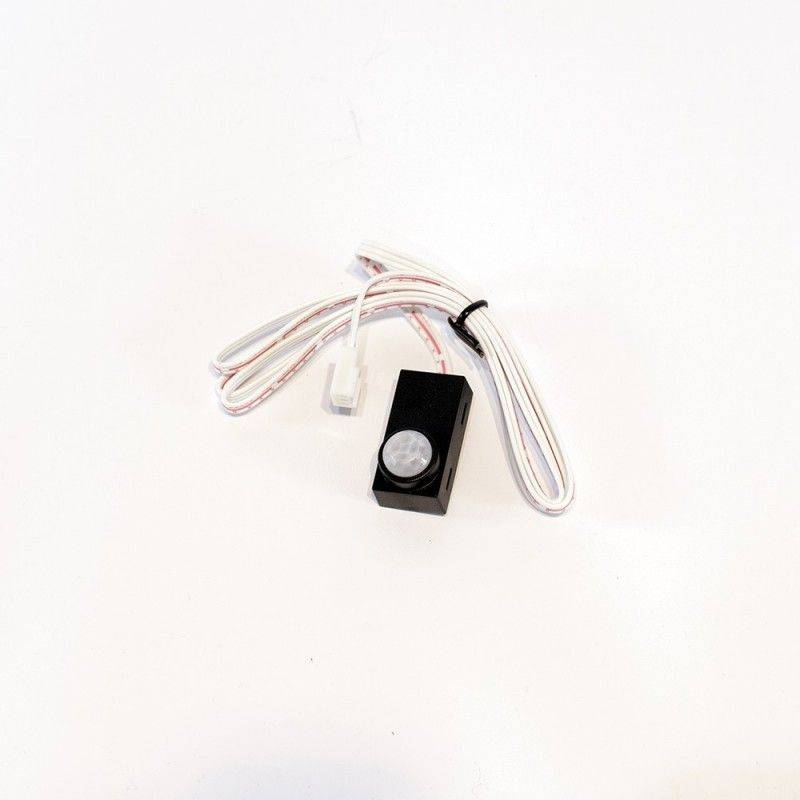

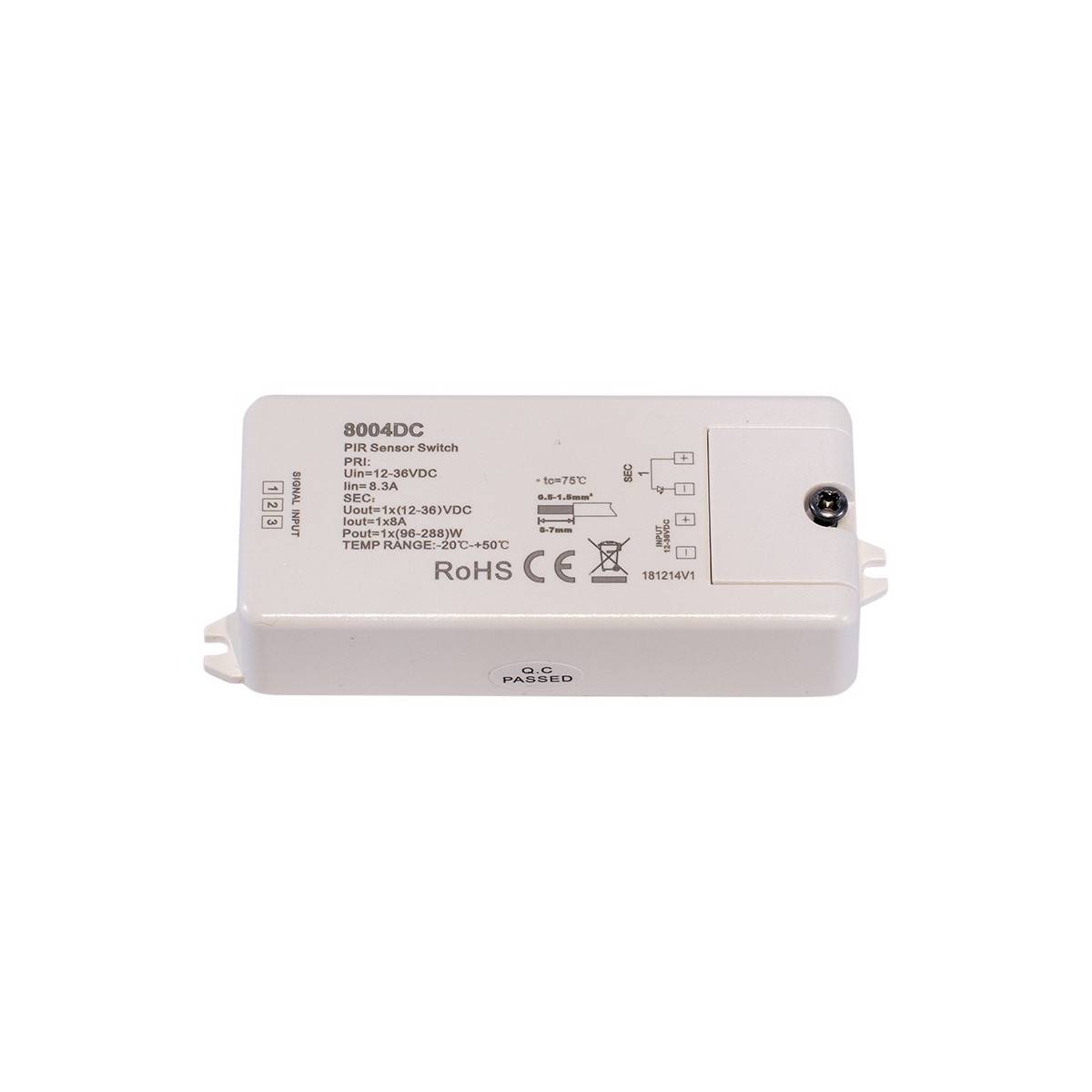

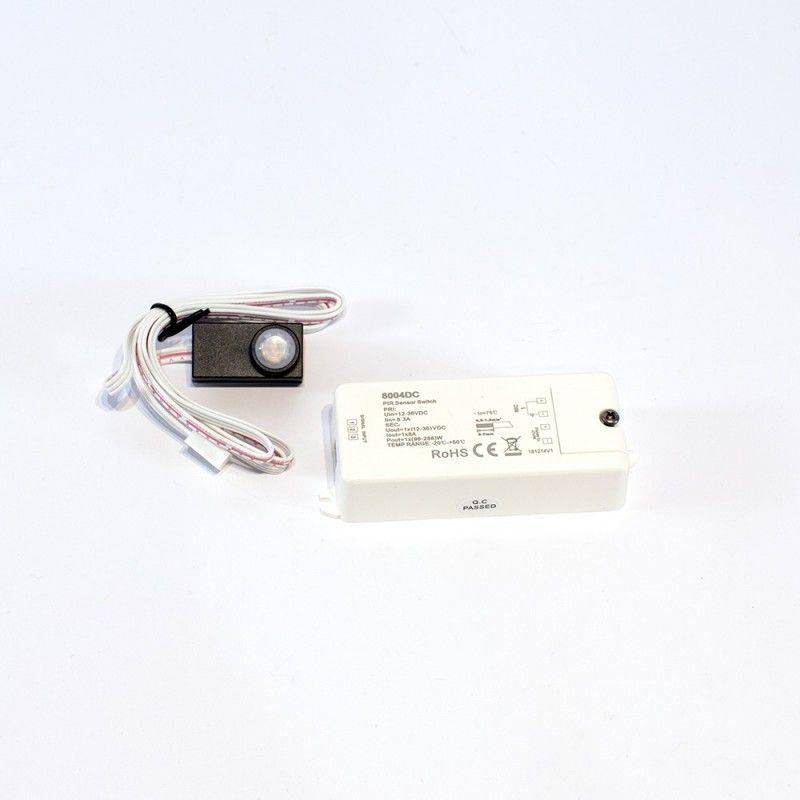

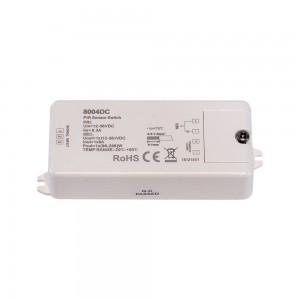

The motion sensor consists of a small and discreet junction box that can be easily hidden in the installation, and the sensor comes with a 1 meter long cable, which allows it to be installed at a distance from the light point, and to control the motion and presence zone according to the required needs.
The detection range of the sensor is a maximum of 3 meters, and an opening angle of 60 degrees. The equipment is designed exclusively for indoor use (IP20).
Due to the voltage required for the operation of the sensor and the connected luminaires, it is essential to use a power supply according to the voltage required by the LED strip, bulb or connected device (12V - 24V - 36V). You can check the available power supplies by clicking here.
The maximum load is 288W at 36V. However, the maximum load will depend on the voltage to which the sensor will be subjected.
Typical uses of the PIR 12-36V motion sensor
- LED strips 12-24V
- LED bulbs up to 36V
- Low voltage electronic devices (12-36V)
- Suitable for LED luminaires, halogen lamps and low voltage electronic ballasts (max 36VDC)
ROHS
