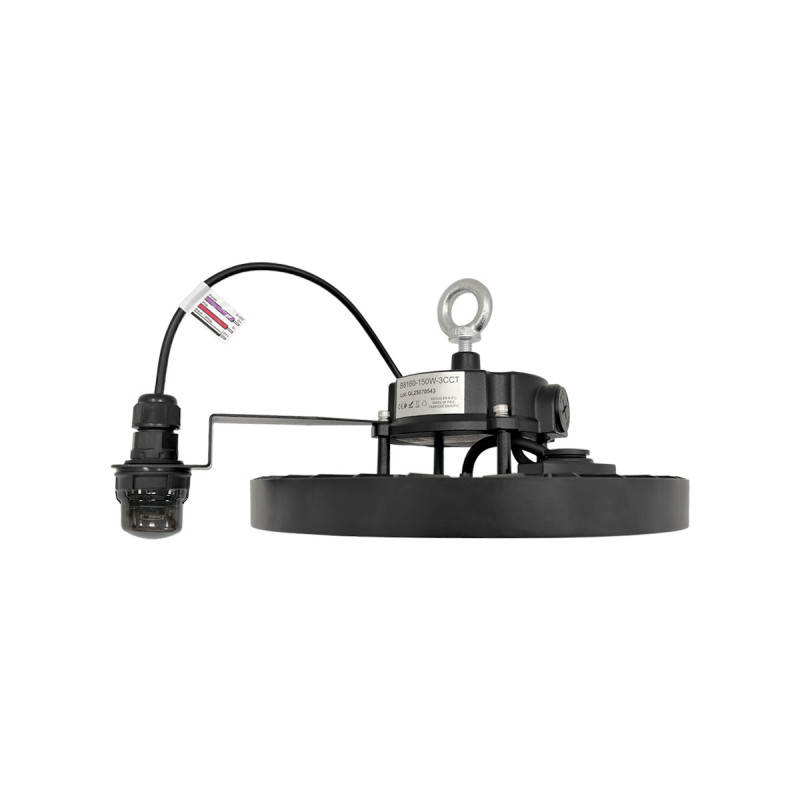

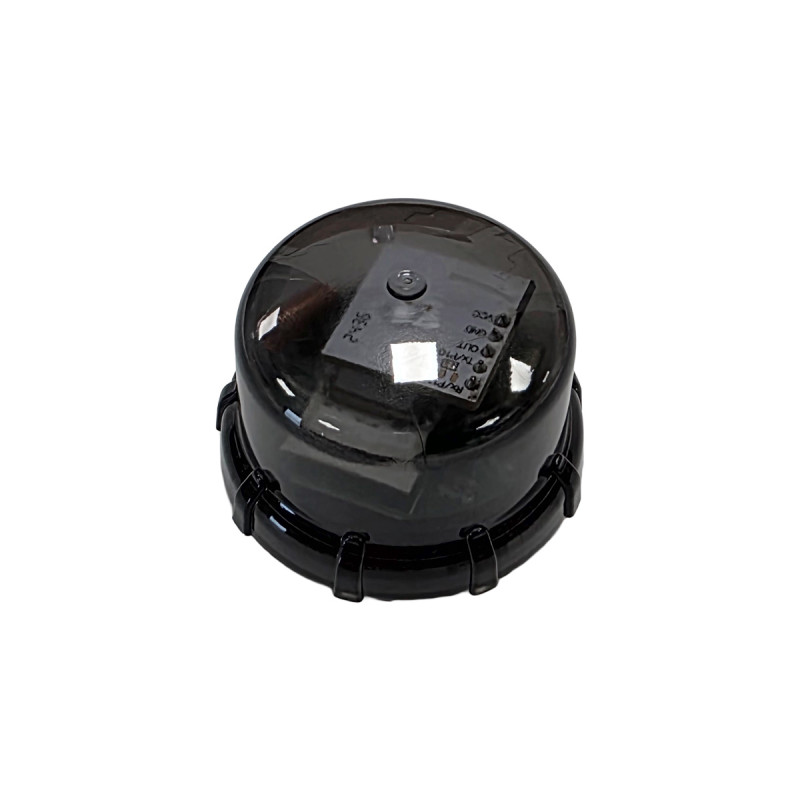

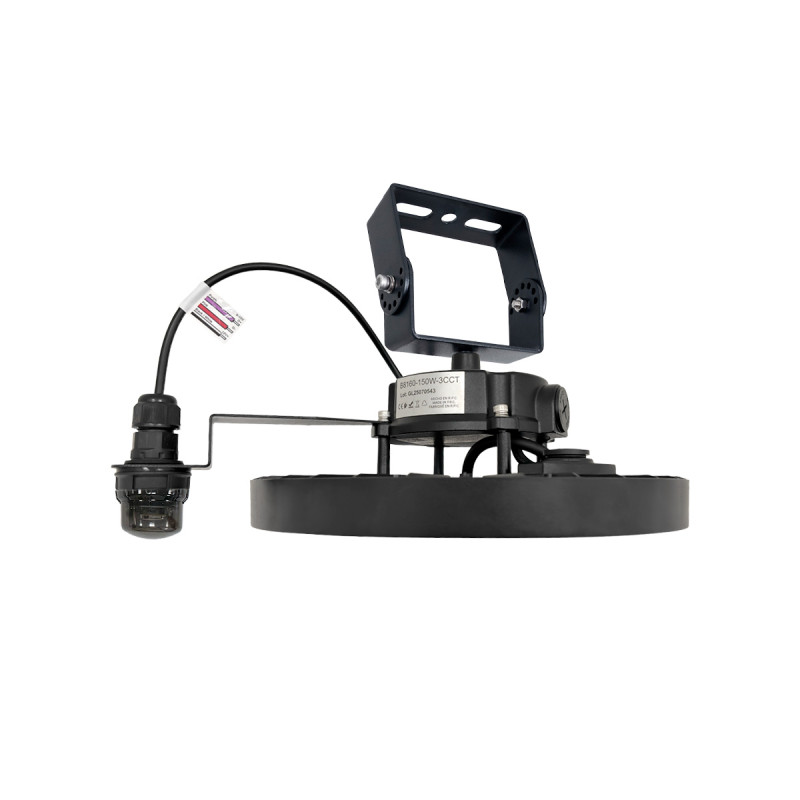

Microwave motion sensor for industrial LED high bay light B8155 - TUYA Bluetooth

High-height motion sensor : High sensitivity for industrial installations

This motion sensor is designed for industrial environments and warehouses, with a maximum installation height of 12 meters. It offers advanced functions that allow efficient lighting control.

Parameters are adjusted from a compatible remote control, NOT included (see related products).

• Mobile app control: Compatible with TUYA and Smart Life, offering lighting management from anywhere.


• Detection distance: Works seamlessly in ceilings up to 12 meters, ideal for warehouses and large industrial spaces.


• Detection angle: Features a detection angle of 150° (wall-mounted) and 360° (ceiling-mounted).


• Shutdown setting: The sensor allows you to set the shutdown time once motion is detected with options of 5s, 30s, 1min, 3min, 5min, 10min or 20min.


• Power and control signal: Operates on 12V DC auxiliary and offers 0-10V or PWM output, with adjustable detection sensitivity (high / medium / low).

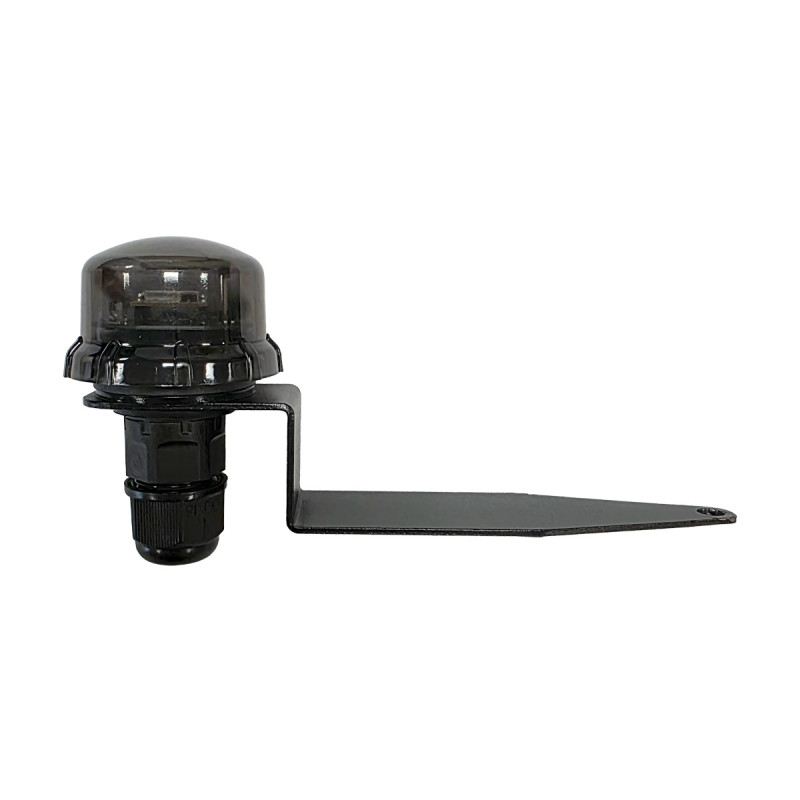

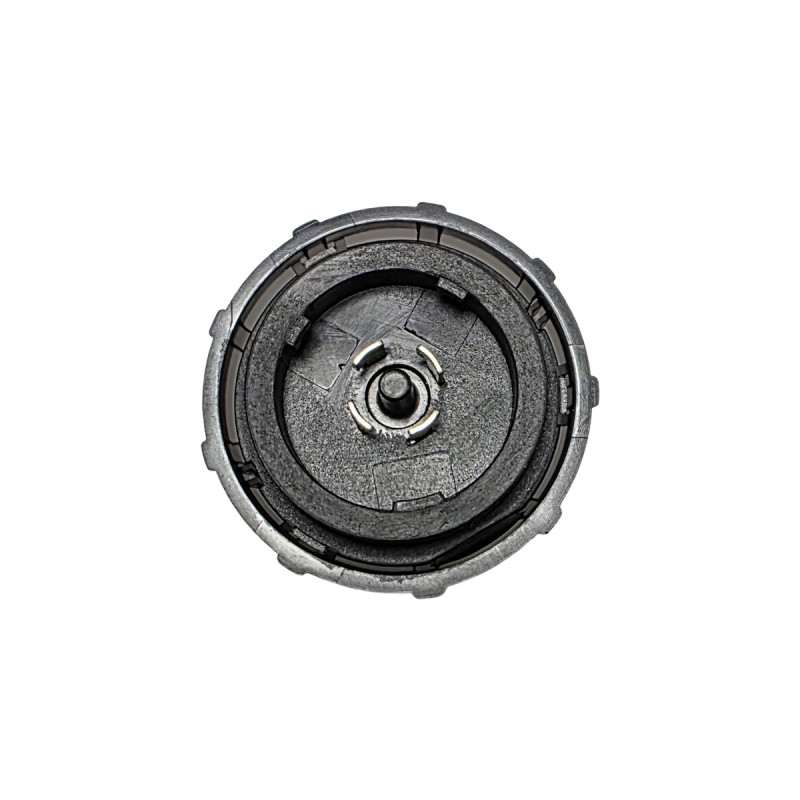

• Zhaga Book 18 connector: Allows watertight installation, with IP65 degree of protection.


• 5-year warranty: High durability and reliability.

Sensor functions

The sensor has several functions that are configured from a remote control and allow to adapt to various needs and scenarios, from immediate energy savings to prioritization of natural light.

1. On/off function (Standby period: 0 s): The sensor turns the light on or off immediately based on motion detection, without any timeout delay. It is ideal for applications where fast and direct response is required, as the light automatically turns off as soon as no motion is detected, maximizing energy savings.


2. Two-step dimming function (Standby period: ∞): In this mode, the sensor activates a two-step dimming of the light. After detecting motion, the light remains on at its maximum intensity. When no further motion is detected, the light dims to a low level indefinitely (+∞) instead of turning off, ensuring dim but continuous illumination that can be easily reactivated if motion is detected again.


3. Three-step dimming function (Adjustable standby period): This function offers three configurable dimming steps. The sensor turns the light on when motion is detected and, once no further activity is detected, dims after an adjustable waiting period (10 seconds, 1 minute, 3 minutes, 5 minutes, 10 minutes or 30 minutes). Then, if no motion is detected during that time, the system turns off the light completely, ensuring both energy savings and flexibility in lighting control.


4. Daylight priority (Standby period: ∞): This feature ensures that the sensor prioritizes the natural light available in the environment. The system keeps the lights off indefinitely (+∞) as long as there is sufficient daylight, even if motion is detected. In this way, artificial light will only be activated when natural light is insufficient, maximizing energy savings and making the most of ambient lighting.
